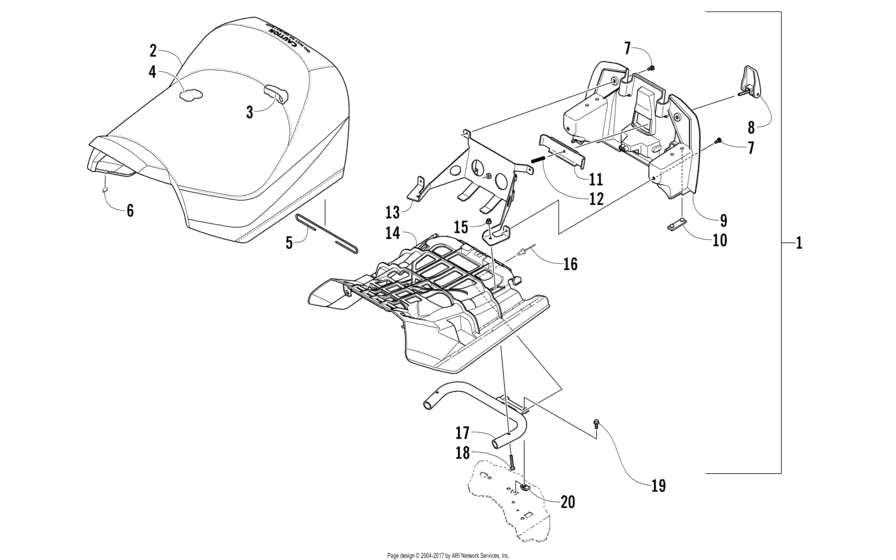

Front Seat Assembly (99353) Diagram Arctic Cat LYNX Lynx 2000 LT
- Model code
- S2015LXDLTUSB
- Engine Capacity
- 565
- Year
- 2015
- Commercial Name
- Lynx 2000 LT
- Sales region
- General
- Colour
- Black
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Lynx 2000 LT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5706-553 Seat,front-wht-non adj tour-mfg assy(inc. 2-18) |
5706-553 |
US $809.95 |
||
|
2
|
2
5706-042 Cover,seat-front-tour(inc. 3) |
5706-042 |
US $326.17 |
||
|
3
|
3
5606-378 WireSeat (inc. 3) |
5606-378 |
US $5.20 |
||
|
4
|
4
3706-737 FoamSeat (inc. 3) |
3706-737 |
US $210.14 |
||
|
5
|
5
5606-379 WireSeat (inc. 3) |
5606-379 |
US $0.46 |
||
|
6
|
6
0624-528 Staple(inc. 3) |
0624-528 |
US $148.85 |
||
|
7
|
7
0423-396 ScrewSelf-tapping (inc. 3) |
0423-396 |
US $8.92 |
||
|
8
|
8
5606-086 LeverHandhold (inc. 3) |
5606-086 |
US $35.43 |
||
|
9
|
9
4706-360 PanelSeat-base (inc. 3) |
4706-360 |
US $46.34 |
||
|
10
|
10
0406-879 BumperRear; seat Rear |
0406-879 |
US $5.28 |
||
|
11
|
11
3706-895 PlateClamp Rear |
3706-895 |
US $23.85 |
||
|
12
|
12
5606-095 SpringAdjustment Rear |
5606-095 |
US $2.22 |
||
|
13
|
13
3706-892 GussetFront seat Rear |
3706-892 |
US $125.50 |
||
|
14
|
14
4606-301 BaseFront seat Rear |
4606-301 |
US $108.63 |
||
|
15
|
15
8427-602 NutRear |
8427-602 |
US $1.45 |
||
|
16
|
16
8061-688 RivetRear |
8061-688 |
US $18.90 |
||
|
17
|
17
3706-931 FrameSeat Rear |
3706-931 |
US $55.91 |
||
|
18
|
18
8468-645 ScrewMachine Rear |
8468-645 |
US $17 |
||
|
19
|
19
8408-516 ScrewCap Rear |
8408-516 |
US $9.60 |
||
|
20
|
20
1623-637 ClipU-nut Rear |
1623-637 |
US $13 |
