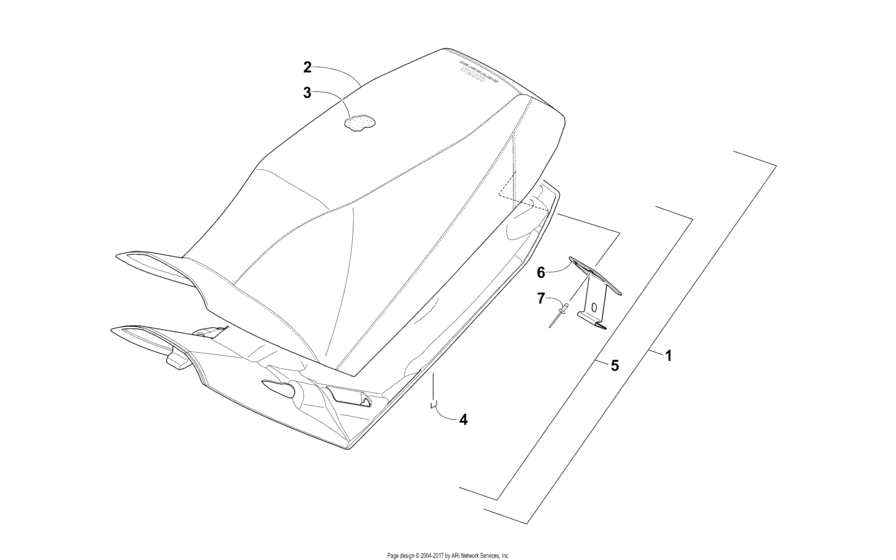

Seat assembly (103074) Diagram Arctic Cat M6000 M 6000 Limited ES 153
- Model code
- S2016M6DLEUSB
- Engine Capacity
- 599
- Year
- 2016
- Commercial Name
- M 6000 Limited ES 153
- Colour
- Black
- Stroke (2-stroke or 4-stroke)
- 2-stroke
- Model
- M6000 ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6706-013 SEAT,ASSY-GRN (6/8000 LTD)Green | (inc. 2-7) |
6706-013 |
US $786.12 |
||
|
1
|
1
6706-011 Complete Seat Assembly - BlackBlack | (inc. 2-7) |
6706-011 |
US $786.12 |
||
|
2
|
2
6706-012 COVER,SEAT-GRN (6/8/9 LTD)Green |
6706-012 |
US $373.92 |
||
|
2
|
2
6706-010 COVER,SEAT-BLK (6/8/9 LTD)Black |
6706-010 |
US $423.06 |
||
|
3
|
3
0717-203 Foam,seat-mtnBlack |
0717-203 |
US $181.58 |
||
|
4
|
4
0624-528 StapleBlack |
0624-528 |
US $148.85 |
||
|
5
|
5
5706-241 Base,seat-mc-w/seat latch hook(inc. 6-7) |
5706-241 |
US $135.05 |
||
|
6
|
6
6606-452 Hook,seat latch(inc. 6-7) |
6606-452 |
US $16.56 |
||
|
7
|
7
8061-686 Rivet(inc. 6-7) |
8061-686 |
US $13.40 |
||
|
7
|
7
8060-702 RivetBlack |
8060-702 |
US $10.75 |
