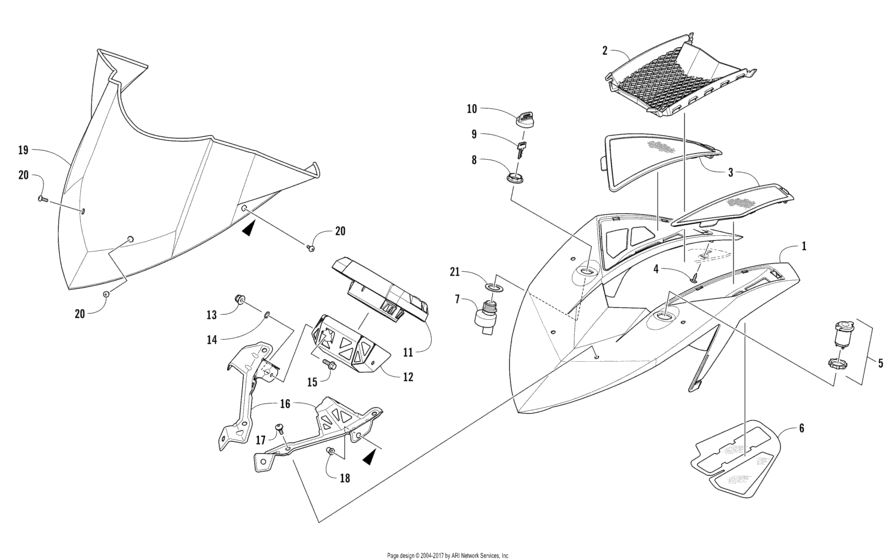

Windshield And Instruments Assemblies (104461) Diagram Arctic Cat M6000 M6000 Sno Pro ES 153
- Model code
- S2017M6DMPUSG
- Engine Capacity
- 599
- Year
- 2017
- Commercial Name
- M6000 Sno Pro ES 153
- Colour
- Green
- Stroke (2-stroke or 4-stroke)
- 2-stroke
- Model
- M6000 Sno Pro ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5706-235 Cowl,headlight-wht-routedWhite |
5706-235 |
US $261.73 |
||
|
2
|
2
6606-576 Vent,pod-2 stroke verticalWhite |
6606-576 |
US $30.62 |
||
|
3
|
3
0608-736 SCREEN,INTAKE-INJ MOLD-RHRight |
0608-736 |
US $33.11 |
||
|
3
|
3
0608-737 SCREEN,INTAKE-INJ MOLD-LHLeft |
0608-737 |
US $33.11 |
||
|
4
|
4
1623-129 ScrewSelf-tapping Left |
1623-129 |
US $3.34 |
||
| replacement | |||||
|
4
|
4
2623-166 Screw, Self-TappingLeft |
2623-166 |
US $10.40 |
||
|
5
|
5
0641-897 Outlet12v; accessory 12V |
0641-897 |
US $26.21 |
||
|
6
|
6
0608-688 Screen,air intake-rhRight |
0608-688 |
US $25.51 |
||
|
6
|
6
0608-689 Screen,air intake-lhLeft |
0608-689 |
US $25.51 |
||
|
7
|
7
0609-910 Switch,open ignition-2012(inc. 6-8) |
0609-910 |
US $63.21 |
||
|
8
|
8
0430-050 NutIgnition switch; flange (inc. 6-8) |
0430-050 |
US $2.56 |
||
|
9
|
9
0430-042 KeyBlank; ignition Y Series - Left-Side Cut |
0430-042 |
US $8.43 |
||
|
9
|
9
0430-043 KeyBlank; ignition Z Series - Right-Side Cut |
0430-043 |
US $8.43 |
||
|
10
|
10
0430-054 Cover, keyKey Z Series - Right-Side Cut |
0430-054 |
US $17.09 |
||
|
11
|
11
0720-037 Gauge, SpeedometerZ Series - Right-Side Cut |
0720-037 |
US $769.80 |
||
| replacement | |||||
|
11
|
11
0720-045 Gauge, SpeedometerZ Series - Right-Side Cut |
0720-045 |
US $769.80 |
||
|
12
|
12
5706-959 BRKT,GAUGE-CENTER-PTD WHTCenter - White |
5706-959 |
US $61.36 |
||
|
13
|
13
8427-602 NutCenter - White |
8427-602 |
US $1.45 |
||
|
14
|
14
8053-212 WasherLock Center - White |
8053-212 |
US $1.45 |
||
|
15
|
15
8410-616 ScrewCap Center - White |
8410-616 |
US $7.24 |
||
|
16
|
16
5706-652 Brkt,gauge-rh-ptd whtRight - White |
5706-652 |
US $24.24 |
||
|
16
|
16
5706-653 Brkt,gauge-lh-ptd whtLeft - White |
5706-653 |
US $24.24 |
||
|
17
|
17
0423-355 ScrewShoulder Left - White |
0423-355 |
US $5.56 |
||
|
18
|
18
1623-764 NutExpansion Left - White |
1623-764 |
US $35.60 |
||
|
19
|
19
6606-647 Windshield,low-team arctic grnLow - Green |
6606-647 |
US $124.02 |
||
|
20
|
20
8477-516 Screw,mach-tstrh m5x0.8x16 z&blkLow - Green |
8477-516 |
US $3.52 |
||
|
21
|
21
0630-264 WasherLow - Green |
0630-264 |
US $4.80 |
||
