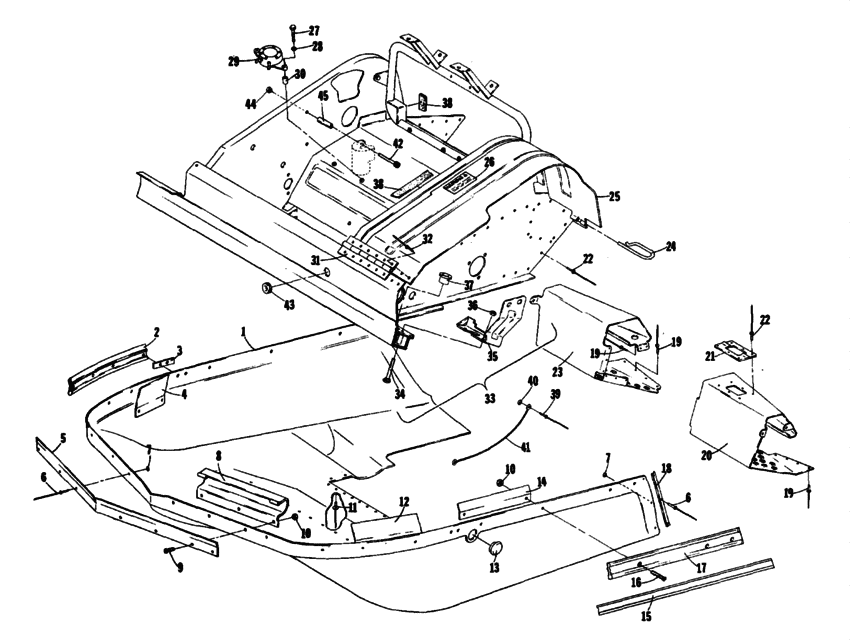

Belly pan and front frame Diagram Arctic Cat PANTERA Pantera
- Model code
- 0250-087-1976
- Year
- 1976
- Commercial Name
- Pantera
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0116-865
Belly pan
|
0116-865 |
— | ||
| replacement | |||||
|
1
|
1
0218-151
New Genuine Part
|
0218-151 |
— | ||
|
2
|
2
0106-688
Bumper-front
|
0106-688 |
— | ||
| replacement | |||||
|
2
|
2
0106-862
New Genuine Part
|
0106-862 |
— | ||
|
3
|
3
0107-577
Splice
|
0107-577 |
— | ||
|
4
|
4
0116-735
Channel
|
0116-735 |
— | ||
|
5
|
5
0116-868
Channel
|
0116-868 |
— | ||
|
6
|
6
8060-508 Rivet |
8060-508 |
US $14.40 |
||
|
7
|
7
0123-149 Washer |
0123-149 |
US $11.28 |
||
|
8
|
8
0116-884
Hinge
|
0116-884 |
— | ||
|
9
|
9
8008-610 ScrewMachine |
8008-610 |
US $54.80 |
||
| replacement | |||||
|
9
|
9
8017-610 ScrewMachine |
8017-610 |
US $84.30 |
||
|
10
|
10
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
11
|
11
8061-710 Rivet |
8061-710 |
US $30 |
||
|
12
|
12
0116-869
Channel
|
0116-869 |
— | ||
|
13
|
13
0116-511 Plug |
0116-511 |
US $1.52 |
||
|
14
|
14
0116-355 ChannelHood |
0116-355 |
US $4.50 |
||
|
15
|
15
0106-705 StripReflectorized |
0106-705 |
US $38.55 |
||
|
16
|
16
0123-383 ScrewMachine |
0123-383 |
US $3.80 |
||
|
17
|
17
0106-696
Bumper-right
|
0106-696 |
— | ||
|
17
|
17
0106-697
Bumper-left
|
0106-697 |
— | ||
|
18
|
18
0116-812
Trim-right
|
0116-812 |
— | ||
|
18
|
18
0116-813
Trim-left
|
0116-813 |
— | ||
|
19
|
19
8060-488 Rivet |
8060-488 |
US $6.20 |
||
|
20
|
20
0106-685
Footrest-left
|
0106-685 |
— | ||
| replacement | |||||
|
20
|
20
0106-829
Footrest-left
|
0106-829 |
— | ||
|
21
|
21
0107-582
Bracket
|
0107-582 |
— | ||
|
22
|
22
8060-486 Rivet |
8060-486 |
US $11.60 |
||
|
23
|
23
0106-684
Footrest-right
|
0106-684 |
— | ||
| replacement | |||||
|
23
|
23
0106-828
Footrest-right
|
0106-828 |
— | ||
|
24
|
24
0123-670 PinHitch |
0123-670 |
US $72.16 |
||
|
25
|
25
0107-570
Shield
|
0107-570 |
— | ||
|
26
|
26
0211-219
Decal
|
0211-219 |
— | ||
|
27
|
27
8002-075
Screw
|
8002-075 |
— | ||
|
28
|
28
8051-212
Washer
|
8051-212 |
— | ||
|
29
|
29
0109-780 Fuel pump |
0109-780 |
US $154.20 |
||
| replacement | |||||
|
29
|
29
0109-638 PumpFuel |
0109-638 |
US $154.20 |
||
|
30
|
30
0107-585
Spacer
|
0107-585 |
— | ||
|
31
|
31
0107-569
Hinge
|
0107-569 |
— | ||
|
32
|
32
8060-686 Rivet |
8060-686 |
US $5.80 |
||
|
33
|
33
0110-965
Front end assy
|
0110-965 |
— | ||
|
34
|
34
0123-759
Bolt
|
0123-759 |
— | ||
|
35
|
35
0107-590
Stop
|
0107-590 |
— | ||
|
35
|
35
0107-591
Stop
|
0107-591 |
— | ||
|
36
|
36
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
37
|
37
0105-007
Bushing
|
0105-007 |
— | ||
| replacement | |||||
|
37
|
37
0105-239 Bushing |
0105-239 |
US $117.50 |
||
|
38
|
38
0116-754
Tape
|
0116-754 |
— | ||
|
39
|
39
8060-430 Rivet |
8060-430 |
US $5 |
||
|
40
|
40
0123-149 Washer |
0123-149 |
US $11.28 |
||
|
41
|
41
0109-135 CableHood |
0109-135 |
US $10.70 |
||
|
42
|
42
8005-406
Screw
|
8005-406 |
— | ||
|
43
|
43
0120-287
Grommet
|
0120-287 |
— | ||
|
44
|
44
8040-246 NutLock |
8040-246 |
US $4.30 |
||
|
45
|
45
0123-776
Spacer
|
0123-776 |
— | ||
