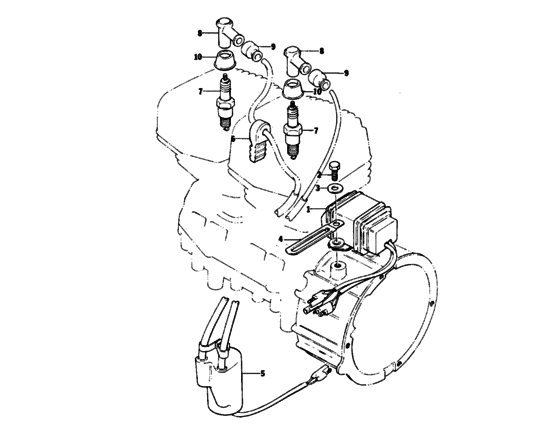

Electrical Diagram Arctic Cat PANTERA Pantera
- Model code
- 0250-087-1976
- Year
- 1976
- Commercial Name
- Pantera
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3002-194 C.d. unit |
3002-194 |
US $1,024.84 |
||
| replacement | |||||
|
1
|
1
3002-558 C.d. unit |
3002-558 |
US $1,024.84 |
||
|
2
|
2
3001-234 Bolt6 x 25 |
3001-234 |
US $18.10 |
||
| replacement | |||||
|
2
|
2
3007-380 BoltHead cover |
3007-380 |
US $19.50 |
||
|
3
|
3
3002-022 Washer |
3002-022 |
US $2.79 |
||
| replacement | |||||
|
3
|
3
3003-030 Washer |
3003-030 |
US $18.90 |
||
|
4
|
4
3002-045 Clamp |
3002-045 |
US $3.59 |
||
| replacement | |||||
|
4
|
4
3002-278 Clamp |
3002-278 |
US $3.59 |
||
|
5
|
5
3002-195 Coil assy |
3002-195 |
US $348.61 |
||
| replacement | |||||
|
5
|
5
3003-221 Coil assembly |
3003-221 |
US $348.61 |
||
|
6
|
6
3002-122
Protector
|
3002-122 |
— | ||
| replacement | |||||
|
6
|
6
3002-290
Protector
|
3002-290 |
— | ||
|
7
|
7
0217-035 Spark PlugBr-9es |
0217-035 |
US $49.72 |
||
|
8
|
8
3002-203 Cap |
3002-203 |
US $11.43 |
||
| replacement | |||||
|
8
|
8
3003-175 CapSpark plug |
3003-175 |
US $11.43 |
||
|
9
|
9
3002-121
Seal
|
3002-121 |
— | ||
|
10
|
10
3002-120
Seal
|
3002-120 |
— | ||
