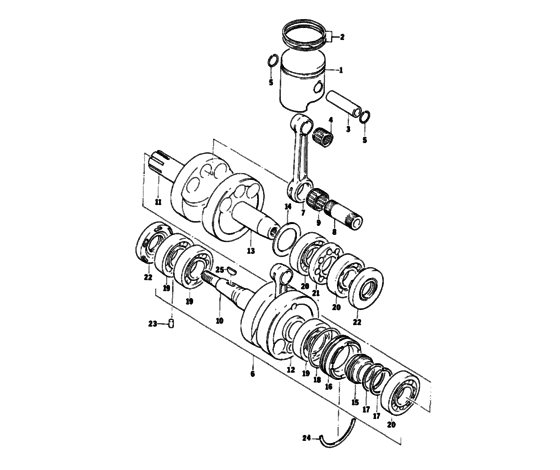

Piston And Crankshaft Diagram Arctic Cat PANTERA Pantera
- Model code
- 0250-087-1976
- Year
- 1976
- Commercial Name
- Pantera
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3002-072 Piston |
3002-072 |
US $301.57 |
||
| replacement | |||||
|
1
|
1
3005-683 Piston assy500f/c-'76-'88 |
3005-683 |
US $301.57 |
||
|
2
|
2
3002-073 Ring assy |
3002-073 |
US $127.74 |
||
| replacement | |||||
|
2
|
2
3002-324 Ring assembly |
3002-324 |
US $127.74 |
||
|
3
|
3
3002-161
Pin
|
3002-161 |
— | ||
| replacement | |||||
|
3
|
3
3002-647
Pin
|
3002-647 |
— | ||
|
4
|
4
3002-162 Bearing |
3002-162 |
US $28.06 |
||
| replacement | |||||
|
4
|
4
3003-107 Bearing |
3003-107 |
US $28.06 |
||
|
5
|
5
3002-163 Circlip |
3002-163 |
US $25.50 |
||
| replacement | |||||
|
5
|
5
3003-537 Circlip |
3003-537 |
US $17.50 |
||
|
6
|
6
3002-175 Crankshaft assyInc 7-21 |
3002-175 |
US $1,240.92 |
||
| replacement | |||||
|
6
|
6
3002-947 Crankshaft assyInc 7 - 21 |
3002-947 |
US $1,240.92 |
||
|
7
|
7
3002-166 Rod |
3002-166 |
US $255.47 |
||
|
8
|
8
3002-173 Pin |
3002-173 |
US $73.63 |
||
|
9
|
9
3002-034 Bearing |
3002-034 |
US $43.62 |
||
| replacement | |||||
|
9
|
9
3003-170 Bearing |
3003-170 |
US $68.53 |
||
|
10
|
10
3002-187
Crankshaft
|
3002-187 |
— | ||
|
11
|
11
3002-186
Crankshaft
|
3002-186 |
— | ||
|
12
|
12
3002-185
Wheel
|
3002-185 |
— | ||
| replacement | |||||
|
12
|
12
3002-534
Wheel
|
3002-534 |
— | ||
|
13
|
13
3002-192 Crankshaft-left |
3002-192 |
US $466.13 |
||
| replacement | |||||
|
13
|
13
3002-536 Crankshaft-left |
3002-536 |
US $466.13 |
||
|
14
|
14
3002-025 WasherLeft |
3002-025 |
US $2.79 |
||
|
15
|
15
3002-096
Racer
|
3002-096 |
— | ||
|
16
|
16
3002-097
Retainer
|
3002-097 |
— | ||
|
17
|
17
3002-098 Ring-center |
3002-098 |
US $23.85 |
||
| replacement | |||||
|
17
|
17
3003-112 Ring- center |
3003-112 |
US $23.85 |
||
|
18
|
18
3002-036 "o" ringCenter |
3002-036 |
US $22.50 |
||
| replacement | |||||
|
18
|
18
3004-818 O-ring |
3004-818 |
US $9 |
||
|
19
|
19
3002-031 BearingRight |
3002-031 |
US $89.28 |
||
| replacement | |||||
|
19
|
19
3002-624 Bearing |
3002-624 |
US $134.79 |
||
|
20
|
20
3002-165 BearingLeft |
3002-165 |
US $89.28 |
||
| replacement | |||||
|
20
|
20
3002-624 Bearing |
3002-624 |
US $134.79 |
||
|
21
|
21
3002-193 Spacer-left |
3002-193 |
US $94.66 |
||
|
22
|
22
3002-038 Oil seal |
3002-038 |
US $44.60 |
||
| replacement | |||||
|
22
|
22
3002-717 Oil seal-right |
3002-717 |
US $75.53 |
||
|
23
|
23
3002-013 Dowel pin |
3002-013 |
US $29.40 |
||
| replacement | |||||
|
23
|
23
3003-658 PinDowel |
3003-658 |
US $19.50 |
||
|
24
|
24
3002-043 "c" ring |
3002-043 |
US $12.34 |
||
| replacement | |||||
|
24
|
24
3003-736 C-ring |
3003-736 |
US $12.34 |
||
|
25
|
25
3002-018 Key |
3002-018 |
US $64.60 |
||
| replacement | |||||
|
25
|
25
3004-540 Key |
3004-540 |
US $41.75 |
||
