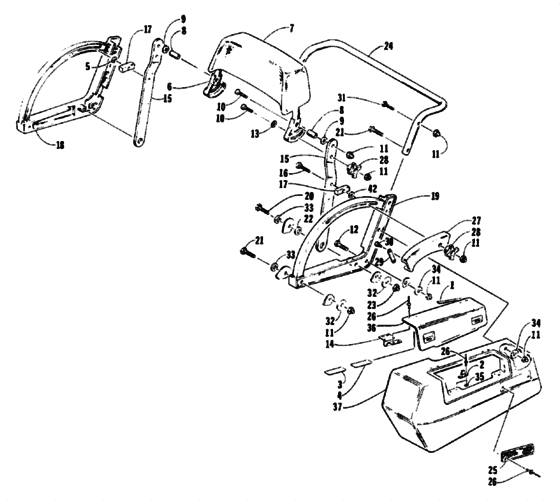

Backrest and saddlebag assembly Diagram Arctic Cat PANTERA Pantera
- Model code
- 0650-178-1992
- Year
- 1992
- Commercial Name
- Pantera
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0617-110 Foram seal-saddle bag |
0617-110 |
US $4.77 |
||
| replacement | |||||
|
1
|
1
0617-145 Foam sealSaddle bag |
0617-145 |
US $4.77 |
||
|
2
|
2
0623-192 Latch1/4 turn |
0623-192 |
US $25.20 |
||
|
3
|
3
1611-043 DecalEnglish; caution payload |
1611-043 |
US $6.05 |
||
|
4
|
4
1611-044 DecalFrench; caution payload |
1611-044 |
US $4.37 |
||
|
5
|
5
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
6
|
6
0706-551
Backrest
|
0706-551 |
— | ||
|
7
|
7
0706-412 CoverBackrest |
0706-412 |
US $111.41 |
||
|
8
|
8
0606-732 TubePivot |
0606-732 |
US $46.10 |
||
|
9
|
9
8050-217 Washer |
8050-217 |
US $3 |
||
|
10
|
10
8007-615 ScrewMachine |
8007-615 |
US $4.88 |
||
|
11
|
11
0123-108 NutNylon cap |
0123-108 |
US $8.80 |
||
|
12
|
12
8002-042 ScrewCap |
8002-042 |
US $5.90 |
||
|
13
|
13
8053-242 WasherLock |
8053-242 |
US $19 |
||
|
14
|
14
0606-804 HingeSaddle bag |
0606-804 |
US $8.66 |
||
|
15
|
15
0606-716 SupportBackrest |
0606-716 |
US $29.86 |
||
|
16
|
16
8011-048 BoltCarriage |
8011-048 |
US $5.76 |
||
|
17
|
17
0606-733 StopBackrest |
0606-733 |
US $5.70 |
||
|
18
|
18
0706-596 BracketBackrest - rh; mtg |
0706-596 |
US $274.17 |
||
|
19
|
19
0706-597 BracketBackrest - lh; mtg |
0706-597 |
US $274.17 |
||
|
20
|
20
8002-136 ScrewCap |
8002-136 |
US $7.50 |
||
|
21
|
21
8002-046 ScrewCap |
8002-046 |
US $15 |
||
|
22
|
22
0606-719 SpacerBackrest; support |
0606-719 |
US $12.80 |
||
|
23
|
23
0123-107 NutLock |
0123-107 |
US $8.64 |
||
|
24
|
24
0606-947 TubeRear lift |
0606-947 |
US $42.33 |
||
|
25
|
25
0606-029 Red reflector |
0606-029 |
US $58.48 |
||
|
26
|
26
8060-229 Rivet |
8060-229 |
US $24 |
||
| replacement | |||||
|
26
|
26
8060-209 Rivet |
8060-209 |
US $15 |
||
|
27
|
27
0606-948 HandleBackrest-rh |
0606-948 |
US $11.45 |
||
|
27
|
27
0606-949 HandleBackrest-lh |
0606-949 |
US $8.62 |
||
|
28
|
28
0623-267 KnobRetaining |
0623-267 |
US $4.59 |
||
|
29
|
29
0606-718 BracketHandle; mtg |
0606-718 |
US $3.22 |
||
|
30
|
30
0623-012 Screw |
0623-012 |
US $0.65 |
||
|
31
|
31
8002-045
Screw
|
8002-045 |
— | ||
|
32
|
32
0123-019 Washer |
0123-019 |
US $45.80 |
||
|
33
|
33
8050-252 Washer |
8050-252 |
US $8.80 |
||
|
34
|
34
0123-260 Washer |
0123-260 |
US $10.40 |
||
|
35
|
35
0123-352 Washer |
0123-352 |
US $4.80 |
||
|
36
|
36
0606-774 LidRh; saddle bag |
0606-774 |
US $17.41 |
||
|
36
|
36
0606-775 LidLh; saddle bag |
0606-775 |
US $22.39 |
||
|
37
|
37
0606-776
Saddle bag
|
0606-776 |
— | ||
|
37
|
37
0606-777
Saddle bag
|
0606-777 |
— | ||
