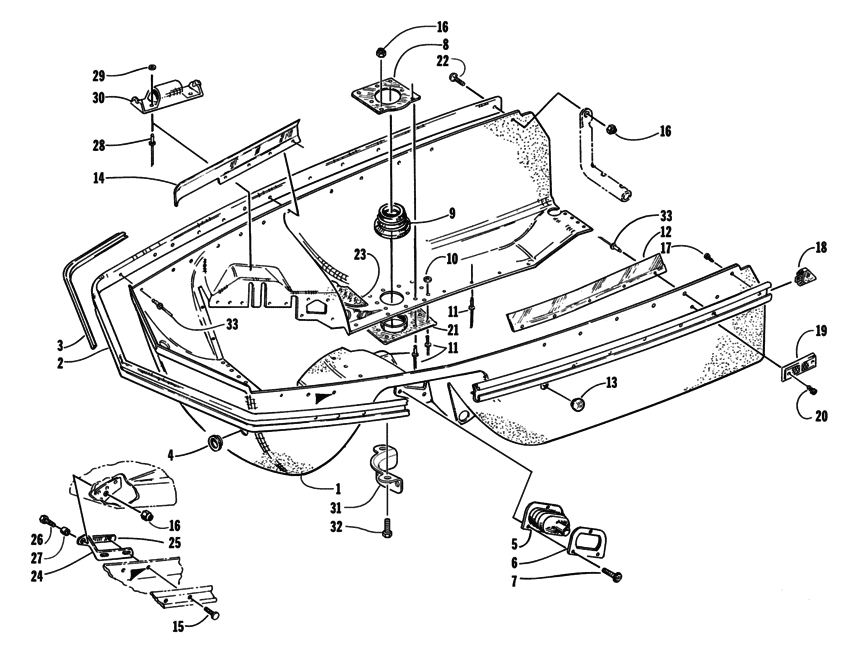

Belly Pan Assembly Diagram Arctic Cat PANTERA Pantera 580
- Model code
- 98PTA-1998
- Engine Capacity
- 580
- Year
- 1998
- Commercial Name
- Pantera 580
- Sales region
- General
- Power
- 96 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera 580
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1606-203 Belly pan |
1606-203 |
US $996.28 |
||
|
2
|
2
0716-758 BumperFront |
0716-758 |
US $283.99 |
||
|
3
|
3
0616-700 InsertBumper |
0616-700 |
US $29.71 |
||
|
4
|
4
0616-348 Cap |
0616-348 |
US $2.26 |
||
|
5
|
5
0605-260 BootSteering |
0605-260 |
US $23.03 |
||
|
6
|
6
0605-261
Flange
|
0605-261 |
— | ||
|
7
|
7
0623-574 ScrewSelf-tapping |
0623-574 |
US $47.30 |
||
|
8
|
8
0612-500 RingUpper; exhaust outlet |
0612-500 |
US $8.62 |
||
| replacement | |||||
|
8
|
8
0712-881 RingUpper; exhaust outlet |
0712-881 |
US $8.62 |
||
|
9
|
9
0612-470
Boot
|
0612-470 |
— | ||
|
10
|
10
0123-149 Washer |
0123-149 |
US $11.28 |
||
|
11
|
11
8061-508 Rivet |
8061-508 |
US $19 |
||
|
12
|
12
0616-832 GuideHood |
0616-832 |
US $32.26 |
||
|
13
|
13
0623-600 Plug |
0623-600 |
US $6.35 |
||
|
14
|
14
0616-834 GuideRight; hood |
0616-834 |
US $18.63 |
||
|
14
|
14
0616-835 GuideLeft; hood |
0616-835 |
US $18.63 |
||
|
15
|
15
0623-472 BoltCarriage |
0623-472 |
US $1.70 |
||
|
16
|
16
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
17
|
17
0623-378 ScrewSelf-tapping |
0623-378 |
US $5.35 |
||
|
18
|
18
0616-396 End capRight; bumper |
0616-396 |
US $11.64 |
||
|
18
|
18
0616-397 End capLeft; bumper |
0616-397 |
US $11.64 |
||
|
19
|
19
0606-526
Yellow reflector
|
0606-526 |
— | ||
|
20
|
20
0623-269 ClipRetaining |
0623-269 |
US $8.25 |
||
|
21
|
21
0612-618 RingLower; exhaust outlet |
0612-618 |
US $11.17 |
||
| replacement | |||||
|
21
|
21
0712-880 RingLower; exhaust outlet |
0712-880 |
US $11.17 |
||
|
22
|
22
0623-458 ScrewMachine |
0623-458 |
US $5.10 |
||
|
23
|
23
0706-548 FoilNosepiece & rh pod |
0706-548 |
US $6.18 |
||
|
24
|
24
0716-244 BracketRight; hinge |
0716-244 |
US $21.13 |
||
|
24
|
24
0716-245
Bracket
|
0716-245 |
— | ||
|
25
|
25
0616-454 PlateBacking |
0616-454 |
US $37.15 |
||
|
26
|
26
8002-040 ScrewCap |
8002-040 |
US $10.41 |
||
|
27
|
27
0107-234 Bushing |
0107-234 |
US $59.28 |
||
|
28
|
28
8060-628 Rivet |
8060-628 |
US $18.10 |
||
|
29
|
29
0123-802 Washer |
0123-802 |
US $1.16 |
||
|
30
|
30
0636-172 HolderSpark plug |
0636-172 |
US $11.66 |
||
| replacement | |||||
|
30
|
30
4639-549 Rivet mounted plug holder |
4639-549 |
US $11.66 |
||
|
31
|
31
0612-498 DeflectorExhaust |
0612-498 |
US $12.34 |
||
| replacement | |||||
|
31
|
31
0712-879 DeflectorExhaust |
0712-879 |
US $12.34 |
||
|
32
|
32
8002-041 ScrewCap |
8002-041 |
US $4.80 |
||
|
33
|
33
8060-710 Rivet |
8060-710 |
US $4.30 |
||
