	Description	OEM Part #	Price
1	1 0670-494 Tank Coolant	0670-494	US $58.26
2	2 0610-221 Hose Engine/coolant tank; coolant	0610-221	US $32.38
3	3 0623-736 Clamp Hose	0623-736	US $7.88
4	4 0610-224 Hose Filler neck/left tube; coolant	0610-224	US $47.34
5	5 0610-039 Hose Frt exch/rh tube; coolant	0610-039	US $24.24
6	6 0706-826 Exchanger Front; heat	0706-826	US $176.93
7	7 8060-706 Rivet	8060-706	US $5.80
8	8 0606-738 Tube Coolant	0606-738	US $43.57
9	9 0610-239 Hose Coolant	0610-239	US $13.67
10	10 0610-175 Hose	0610-175	—
11	11 0610-276 Bracket Support	0610-276	US $5.75
12	12 8050-222 Washer	8050-222	US $17.60
13	13 8002-042 Screw Cap	8002-042	US $5.90
14	14 8040-366 Nut Lock	8040-366	US $8.60
15	15 0623-420 Screw	0623-420	US $4.80
16	16 8051-152 Washer	8051-152	—
17	17 8051-242 Washer Lock	8051-242	US $11.05
18	18 8002-136 Screw Cap	8002-136	US $7.50
19	19 8050-252 Washer	8050-252	US $8.80
20	20 0606-268 Cap	0606-268	US $22.94
21	21 0610-016 Hose 25 ft	0610-016	US $123.18
22	22 2611-758 Decal Fuel tank; fill level	2611-758	US $9.93
23	23 0623-373 Clamp Hose	0623-373	US $7.68
24	24 0610-079 Hose Check valve	0610-079	US $4.46
25	25 0616-065 Fitting Double t	0616-065	US $11.10
26	26 0610-037 Hose Filler neck/engine; coolant	0610-037	US $19.87
27	27 0623-594 Washer	0623-594	—
28	28 0619-139 Conduit	0619-139	—
29	29 0423-070 Clamp Hose	0423-070	US $3.72

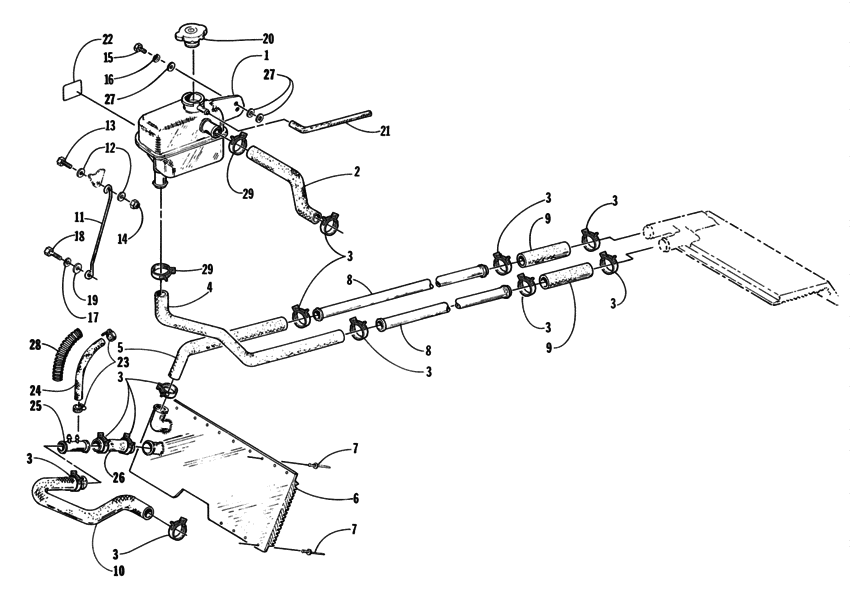

Cooling assembly Diagram Arctic Cat PANTERA Pantera 580 General 10954177-696929
