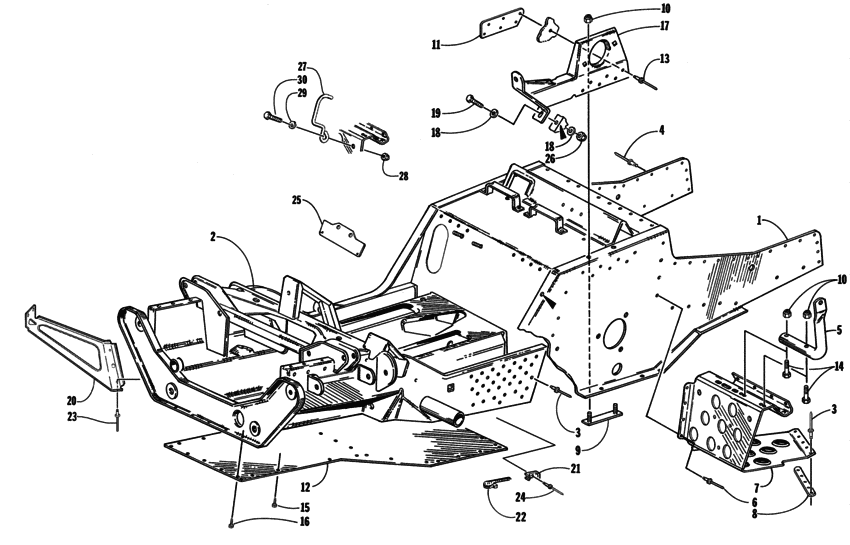

Front Frame And Footrest Assembly Diagram Arctic Cat PANTERA Pantera 580
- Model code
- 98PTA-1998
- Engine Capacity
- 580
- Year
- 1998
- Commercial Name
- Pantera 580
- Sales region
- General
- Power
- 96 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera 580
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0707-227 Front endChassis |
0707-227 |
US $678.21 |
||
|
2
|
2
0707-300 Front endSuspension |
0707-300 |
US $1,149.85 |
||
|
3
|
3
0623-282 Rivet |
0623-282 |
US $13.40 |
||
|
4
|
4
8060-504 Rivet |
8060-504 |
US $8.60 |
||
|
5
|
5
0716-219 TubeBumper support |
0716-219 |
US $24.35 |
||
|
6
|
6
0623-166 Rivet |
0623-166 |
US $15 |
||
|
7
|
7
0706-916 FootrestRight |
0706-916 |
US $141.30 |
||
|
7
|
7
0706-917 FootrestLeft |
0706-917 |
US $139.93 |
||
|
8
|
8
0616-701 PlateBacking |
0616-701 |
US $6.60 |
||
| replacement | |||||
|
8
|
8
2706-110 PlateFootrest; backing |
2706-110 |
US $6.60 |
||
|
9
|
9
0707-064 PlateMounting |
0707-064 |
US $26.01 |
||
| replacement | |||||
|
9
|
9
0707-840 PlateBearing mtg-ptd blk |
0707-840 |
US $26.01 |
||
|
10
|
10
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
11
|
11
0607-388 PlateBearing support; backing |
0607-388 |
US $4.07 |
||
|
12
|
12
0616-424
Belly pan
|
0616-424 |
— | ||
|
13
|
13
0623-341 Rivet |
0623-341 |
US $18.10 |
||
|
14
|
14
8002-044 ScrewCap |
8002-044 |
US $28.90 |
||
|
15
|
15
0623-569 ScrewSelf-tapping |
0623-569 |
US $3.40 |
||
|
16
|
16
0623-700 ScrewSelf-tapping |
0623-700 |
US $43.30 |
||
|
17
|
17
0707-201 SupportBearing |
0707-201 |
US $149.52 |
||
| replacement | |||||
|
17
|
17
0707-846 SupportBearing-ptd blk |
0707-846 |
US $149.52 |
||
|
18
|
18
8050-217 Washer |
8050-217 |
US $3 |
||
|
19
|
19
8002-041 ScrewCap |
8002-041 |
US $4.80 |
||
|
20
|
20
1606-286 BracketRight; bumper support |
1606-286 |
US $28.56 |
||
|
20
|
20
1606-287 BracketLeft; bumper support |
1606-287 |
US $26.10 |
||
|
21
|
21
0623-228 MountCable tie |
0623-228 |
US $11 |
||
|
22
|
22
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
23
|
23
8060-508 Rivet |
8060-508 |
US $14.40 |
||
|
24
|
24
8060-428 Rivet |
8060-428 |
US $12 |
||
|
25
|
25
0605-213 PlateBacking |
0605-213 |
US $15.32 |
||
|
26
|
26
8042-366 Nut |
8042-366 |
US $5.20 |
||
| replacement | |||||
|
26
|
26
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
27
|
27
0645-235 BracketEfi; harness |
0645-235 |
US $8.66 |
||
|
28
|
28
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
29
|
29
8050-247 Washer |
8050-247 |
US $9 |
||
|
30
|
30
8002-130 ScrewCap |
8002-130 |
US $6.80 |
||
