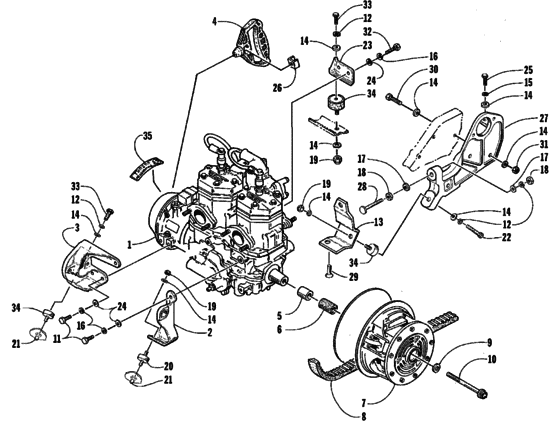

Engine And Related Parts Diagram Arctic Cat PANTERA Pantera 580 EFI
- Model code
- 99PTA-1999
- Engine Capacity
- 580
- Year
- 1999
- Commercial Name
- Pantera 580 EFI
- Sales region
- General
- Power
- 96 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera 580 EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0662-245 Engine ad58l3 |
0662-245 |
US $2,856.71 |
||
|
2
|
2
0745-111 BracketLeft front; engine mounting |
0745-111 |
US $86.78 |
||
|
3
|
3
0745-106 BracketRight front; engine mounting |
0745-106 |
US $136.42 |
||
|
4
|
4
0636-363 Handle "d" |
0636-363 |
US $13.99 |
||
|
5
|
5
0646-107 SpacerAluminum |
0646-107 |
US $23.61 |
||
|
6
|
6
0646-106 SpacerUrethane |
0646-106 |
US $4.70 |
||
|
7
|
7
0725-262 Assembly |
0725-262 |
US $825.14 |
||
| replacement | |||||
|
7
|
7
0746-839 KIT,DRIVE CLUTCH-UNCALIBRATED-8.25 30MM/D |
0746-839 |
US $781.64 |
||
|
8
|
8
0627-020 BeltDrive |
0627-020 |
US $136.42 |
||
|
9
|
9
0623-210 WasherLock |
0623-210 |
US $0.88 |
||
|
10
|
10
0623-206 ScrewCap |
0623-206 |
US $19.09 |
||
|
11
|
11
8012-131 ScrewCap-lock |
8012-131 |
US $1.48 |
||
|
12
|
12
8051-277 WasherLock |
8051-277 |
US $65.40 |
||
|
13
|
13
0608-235 BracketLeft rear; engine mounting |
0608-235 |
US $69.69 |
||
|
14
|
14
8050-277 Washer |
8050-277 |
US $10.75 |
||
|
15
|
15
8051-217
Washer
|
8051-217 |
— | ||
|
16
|
16
8051-242 WasherLock |
8051-242 |
US $11.05 |
||
|
17
|
17
8050-282 Washer |
8050-282 |
from US $1.60 |
||
|
18
|
18
8042-486 Nut |
8042-486 |
US $44.20 |
||
|
19
|
19
8040-486 NutLock |
8040-486 |
from US $1.60 |
||
|
20
|
20
0608-118 MountDouble male; engine |
0608-118 |
from US $29.23 |
||
|
21
|
21
0623-699 InsertThreaded |
0623-699 |
US $17.16 |
||
|
22
|
22
8002-226 ScrewCap |
8002-226 |
US $4.80 |
||
|
23
|
23
0708-070 BracketRight rear; engine mounting |
0708-070 |
US $58.63 |
||
|
24
|
24
8050-242 Washer |
8050-242 |
US $28.20 |
||
|
25
|
25
8002-040 ScrewCap |
8002-040 |
US $10.41 |
||
|
26
|
26
0606-885 CapRecoil handle |
0606-885 |
US $1.26 |
||
|
27
|
27
0708-042 BracketEngine mounting/bearing support |
0708-042 |
US $107.78 |
||
| replacement | |||||
|
27
|
27
0708-096 BracketEngine mounting/bearing support |
0708-096 |
US $107.78 |
||
|
28
|
28
0608-197
Bumper
|
0608-197 |
— | ||
|
29
|
29
0623-095 ScrewMachine |
0623-095 |
US $11.92 |
||
|
30
|
30
0623-628 ScrewCap |
0623-628 |
US $2 |
||
|
31
|
31
0623-026 NutFlex lock |
0623-026 |
US $60.90 |
||
|
32
|
32
8012-132 ScrewLock; cap |
8012-132 |
US $2.95 |
||
|
33
|
33
8002-222
Screw
|
8002-222 |
— | ||
|
34
|
34
0608-217 MountEngine |
0608-217 |
US $24.24 |
||
|
35
|
35
1611-588
Decal
|
1611-588 |
— | ||
