Electrical Diagram Arctic Cat PANTERA Pantera 580 EFI
- Model code
- S2000PTDAAUS
- Engine Capacity
- 580
- Year
- 2000
- Commercial Name
- Pantera 580 EFI
- Sales region
- General
- Power
- 96 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera 580 EFI
Difficulties in parts search?
Difficulties in parts search?

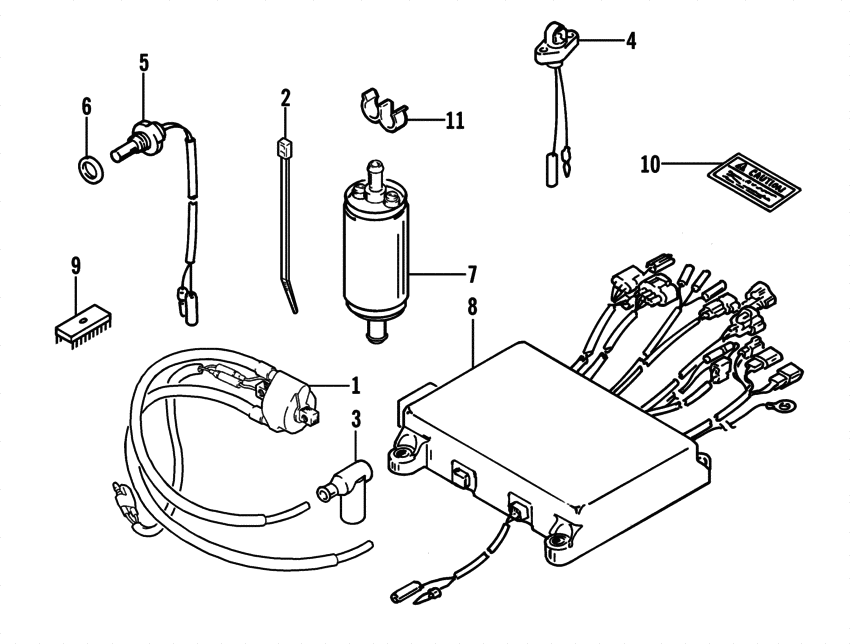

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3005-409 CoilIgnition |
3005-409 |
US $230.71 |
||
|
2
|
2
3005-237 Clamp |
3005-237 |
US $21.03 |
||
|
3
|
3
3003-737 Cap ass'y |
3003-737 |
US $22.94 |
||
| replacement | |||||
|
3
|
3
3006-367 CapSpark plug |
3006-367 |
US $27.22 |
||
|
4
|
4
3005-460 SensorTemperature |
3005-460 |
US $166.70 |
||
|
5
|
5
3005-462 SensorCoolant |
3005-462 |
US $158.77 |
||
| replacement | |||||
|
5
|
5
3006-515 SensorCoolant |
3006-515 |
US $158.77 |
||
|
6
|
6
3005-233 WasherCoolant sensor |
3005-233 |
US $11.43 |
||
|
7
|
7
3005-268 PumpAssembly; fuel |
3005-268 |
US $722.78 |
||
|
8
|
8
3005-581
Ecu
3 ; |
3005-581 |
— | ||
|
8
|
8
3005-579 EcuCircle 3 ; |
3005-579 |
US $2,178.60 |
||
|
8
|
8
3005-580 EcuSquare 3 ; |
3005-580 |
US $3,007.36 |
||
| replacement | |||||
|
8
|
8
3005-755 EcuSquare 3 ; |
3005-755 |
US $3,007.36 |
||
|
9
|
9
3005-618 EpromCircle 3 ; |
3005-618 |
US $128.32 |
||
|
9
|
9
3005-619 EpromSquare 3 ; |
3005-619 |
US $128.32 |
||
|
9
|
9
3005-620 EpromTriangle 3 ; |
3005-620 |
US $128.32 |
||
|
10
|
10
2611-755 DecalHot surface; caution |
2611-755 |
US $14.91 |
||
|
11
|
11
3005-387 Clip |
3005-387 |
US $4.50 |
||
