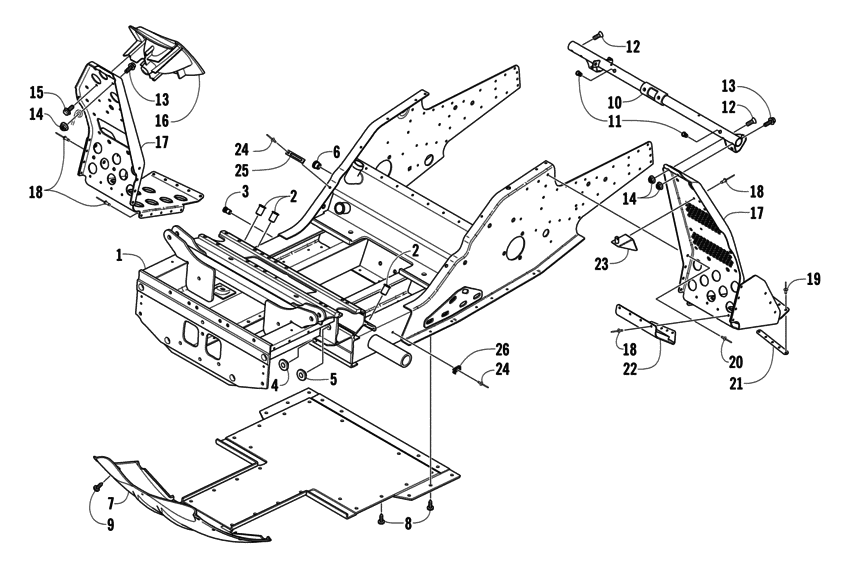

Front Frame And Footrest Assembly Diagram Arctic Cat PANTERA Pantera 600 EFI
- Model code
- S2005PTDEFUSB
- Engine Capacity
- 599
- Year
- 2005
- Commercial Name
- Pantera 600 EFI
- Sales region
- General
- Colour
- Black
- Power
- 120 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera 600 EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0707-617 Chassis assemblyinc. 2-6 ; |
0707-617 |
US $1,159.36 |
||
|
2
|
2
0623-699 InsertThreaded |
0623-699 |
US $17.16 |
||
|
3
|
3
0623-582 Insert |
0623-582 |
US $0.48 |
||
|
4
|
4
0607-420 InsertLower a-arm mount |
0607-420 |
US $2.28 |
||
|
5
|
5
0607-421 InsertLower a-arm mount |
0607-421 |
US $9.12 |
||
|
6
|
6
0623-581 InsertThreaded |
0623-581 |
US $0.86 |
||
|
7
|
7
2606-732
Belly pan
|
2606-732 |
— | ||
|
8
|
8
1623-129 ScrewSelf-tapping |
1623-129 |
US $3.34 |
||
| replacement | |||||
|
8
|
8
2623-166 Screw, Self-Tapping |
2623-166 |
US $10.40 |
||
|
9
|
9
0623-784
Screw
|
0623-784 |
— | ||
| replacement | |||||
|
9
|
9
2623-163 Screw, Self-Tapping |
2623-163 |
US $9.05 |
||
|
10
|
10
0705-866 SupportSteering inc. 11 ; |
0705-866 |
US $81.83 |
||
|
11
|
11
0623-779 Insert |
0623-779 |
US $16.10 |
||
|
12
|
12
8019-614 ScrewMachine |
8019-614 |
US $15 |
||
|
13
|
13
8020-040 ScrewCap |
8020-040 |
US $26.60 |
||
|
14
|
14
8048-366 NutLock |
8048-366 |
US $8.80 |
||
|
15
|
15
0623-297 ScrewSelf tapping |
0623-297 |
US $2.12 |
||
|
16
|
16
1706-099 CupRecoil rope |
1706-099 |
US $34.67 |
||
|
17
|
17
1706-884 FootrestRight |
1706-884 |
US $107.30 |
||
|
17
|
17
2706-113 FootrestLeft |
2706-113 |
US $107.30 |
||
|
18
|
18
0623-166 Rivet |
0623-166 |
US $15 |
||
|
19
|
19
0623-282 Rivet |
0623-282 |
US $13.40 |
||
|
20
|
20
0623-341 Rivet |
0623-341 |
US $18.10 |
||
|
21
|
21
2706-110 PlateFootrest; backing |
2706-110 |
US $6.60 |
||
|
22
|
22
1706-886 PlateRight; backing |
1706-886 |
US $16.13 |
||
|
22
|
22
1706-887 PlateLeft; backing |
1706-887 |
US $16.13 |
||
|
23
|
23
0705-173 BracketGuard; mounting |
0705-173 |
US $18.54 |
||
|
24
|
24
8060-506 Rivet |
8060-506 |
US $4.30 |
||
|
25
|
25
3002-964 ClampWire |
3002-964 |
US $11.48 |
||
| replacement | |||||
|
25
|
25
1623-984 Clamp,wire - 76.14mm lg w/6.25 hole |
1623-984 |
US $17.70 |
||
|
26
|
26
0623-228 MountCable tie |
0623-228 |
US $11 |
||
