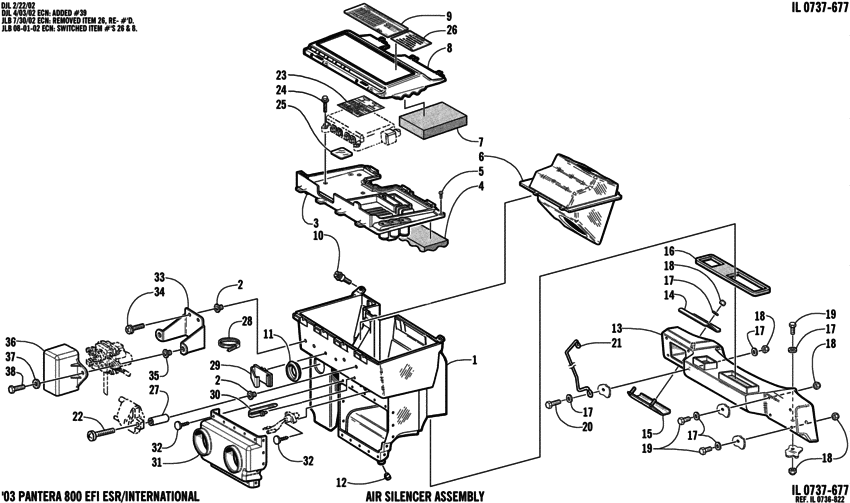

Air Silencer Assembly Diagram Arctic Cat PANTERA Pantera 800 EFI ESR
- Model code
- S2003PTHEFUSC
- Engine Capacity
- 785
- Year
- 2003
- Commercial Name
- Pantera 800 EFI ESR
- Sales region
- General
- Power
- 140 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera 800 EFI ESR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0770-575 SilencerAssembly; air inc. 2 ; |
0770-575 |
US $133.29 |
||
|
2
|
2
0623-529 ClipPod; bumper |
0623-529 |
US $11.75 |
||
|
3
|
3
1670-197 CoverAir silencer |
1670-197 |
US $31.12 |
||
|
4
|
4
0617-393 FoamCover; air silencer |
0617-393 |
US $12.41 |
||
|
5
|
5
0623-882 ScrewSelf-tapping |
0623-882 |
US $0.55 |
||
|
6
|
6
1670-061 ResonatorQ-wave |
1670-061 |
US $38.39 |
||
|
7
|
7
0617-411 FoamTool tray |
0617-411 |
US $12.43 |
||
|
8
|
8
1670-049 CoverTool tray |
1670-049 |
US $57 |
||
|
9
|
9
4611-918 DecalClutching chart |
4611-918 |
US $29.86 |
||
|
10
|
10
0623-780 Screw |
0623-780 |
US $97.70 |
||
|
11
|
11
2606-062 PlugCap |
2606-062 |
US $4.53 |
||
|
12
|
12
1606-038 BumperAir silencer |
1606-038 |
US $1.75 |
||
|
13
|
13
1670-326 PlenumAir silencer |
1670-326 |
US $90.52 |
||
|
14
|
14
2606-095 PlateBacking |
2606-095 |
US $8.66 |
||
|
15
|
15
1706-899 PlateAdjustable |
1706-899 |
US $19.87 |
||
|
16
|
16
0617-245 SealAir silencer/plenum |
0617-245 |
US $5.61 |
||
|
17
|
17
8050-222 Washer |
8050-222 |
US $17.60 |
||
|
18
|
18
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
19
|
19
8002-040 ScrewCap |
8002-040 |
US $10.41 |
||
|
20
|
20
8002-042 ScrewCap |
8002-042 |
US $5.90 |
||
|
21
|
21
0707-705 BracketHarness/rope; guard |
0707-705 |
US $15.36 |
||
|
22
|
22
0623-835 ScrewMachine |
0623-835 |
US $2.50 |
||
|
23
|
23
3611-403 DecalFuel designation |
3611-403 |
US $7.42 |
||
|
24
|
24
0623-785 ScrewSelf-tapping |
0623-785 |
US $8.80 |
||
|
25
|
25
2606-007 FoilProtective |
2606-007 |
US $8.64 |
||
|
26
|
26
5611-146 DecalCaution |
5611-146 |
US $12.34 |
||
|
27
|
27
0107-630 Spacer |
0107-630 |
US $17.32 |
||
|
28
|
28
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
29
|
29
0623-792 ClipWire/hose push mount |
0623-792 |
US $5.89 |
||
|
30
|
30
0623-677 TieCable |
0623-677 |
US $7.35 |
||
|
31
|
31
1670-256 BootAir silencer |
1670-256 |
US $85.97 |
||
|
32
|
32
0623-165 ClipScreen retaining |
0623-165 |
US $10.65 |
||
|
33
|
33
0770-618 PlateMounting |
0770-618 |
US $18.20 |
||
|
34
|
34
0623-888 ScrewMachine w/external tooth lock washer |
0623-888 |
US $2.50 |
||
|
35
|
35
0623-582 Insert |
0623-582 |
US $0.48 |
||
|
36
|
36
2606-129 CoverServomotor |
2606-129 |
US $84 |
||
|
37
|
37
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
38
|
38
8002-044 ScrewCap |
8002-044 |
US $28.90 |
