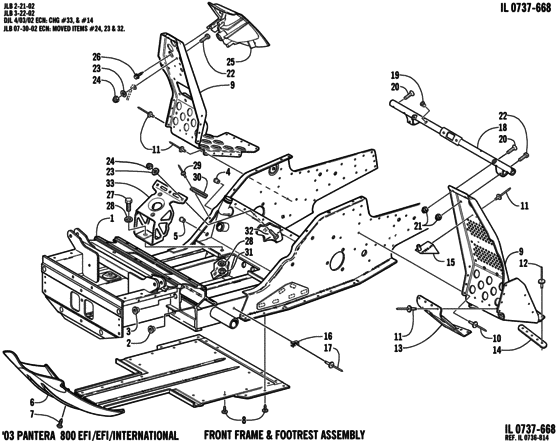

Front Frame And Footrest Assembly Diagram Arctic Cat PANTERA Pantera 800 EFI ESR
- Model code
- S2003PTHEFUSC
- Engine Capacity
- 785
- Year
- 2003
- Commercial Name
- Pantera 800 EFI ESR
- Sales region
- General
- Power
- 140 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera 800 EFI ESR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0707-648 Chassis assemblyinc. 2-5 ; |
0707-648 |
US $1,255.85 |
||
| replacement | |||||
|
1
|
1
0707-908 Chassis assemblyinc. 2-5 ; |
0707-908 |
US $1,255.85 |
||
|
2
|
2
0607-420 InsertLower a-arm mount |
0607-420 |
US $2.28 |
||
|
3
|
3
0607-421 InsertLower a-arm mount |
0607-421 |
US $9.12 |
||
|
4
|
4
0623-581 InsertThreaded |
0623-581 |
US $0.86 |
||
|
5
|
5
0623-582 Insert |
0623-582 |
US $0.48 |
||
|
6
|
6
1606-719
Belly pan
|
1606-719 |
— | ||
|
7
|
7
0623-784
Screw
|
0623-784 |
— | ||
| replacement | |||||
|
7
|
7
2623-163 Screw, Self-Tapping |
2623-163 |
US $9.05 |
||
|
8
|
8
0623-797 ScrewSelf-tapping |
0623-797 |
US $8.32 |
||
| replacement | |||||
|
8
|
8
2623-164 Screw, Self-Tapping |
2623-164 |
US $7.60 |
||
|
9
|
9
1706-884 FootrestRight Black ; |
1706-884 |
US $107.30 |
||
|
9
|
9
2706-113 FootrestLeft Black ; |
2706-113 |
US $107.30 |
||
|
10
|
10
0623-341 Rivet |
0623-341 |
US $18.10 |
||
|
11
|
11
0623-166 Rivet |
0623-166 |
US $15 |
||
|
12
|
12
0623-282 Rivet |
0623-282 |
US $13.40 |
||
|
13
|
13
1706-886 PlateRight; backing Black ; |
1706-886 |
US $16.13 |
||
|
13
|
13
1706-887 PlateLeft; backing Black ; |
1706-887 |
US $16.13 |
||
|
14
|
14
2706-110 PlateFootrest; backing |
2706-110 |
US $6.60 |
||
|
15
|
15
0705-173 BracketGuard; mounting |
0705-173 |
US $18.54 |
||
|
16
|
16
0623-228 MountCable tie |
0623-228 |
US $11 |
||
|
17
|
17
8060-428 Rivet |
8060-428 |
US $12 |
||
|
18
|
18
0705-866 SupportSteering inc. 19 ; |
0705-866 |
US $81.83 |
||
|
19
|
19
0623-779 Insert |
0623-779 |
US $16.10 |
||
|
20
|
20
8019-614 ScrewMachine |
8019-614 |
US $15 |
||
|
21
|
21
8041-366 NutLock |
8041-366 |
US $4.30 |
||
|
22
|
22
8002-041 ScrewCap |
8002-041 |
US $4.80 |
||
|
23
|
23
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
24
|
24
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
25
|
25
1706-373 CupRecoil rope |
1706-373 |
US $32.34 |
||
|
26
|
26
0623-297 ScrewSelf tapping |
0623-297 |
US $2.12 |
||
|
27
|
27
8002-132 ScrewCap |
8002-132 |
US $4.80 |
||
|
28
|
28
8050-252 Washer |
8050-252 |
US $8.80 |
||
|
29
|
29
8060-504 Rivet |
8060-504 |
US $8.60 |
||
|
30
|
30
3002-964 ClampWire |
3002-964 |
US $11.48 |
||
| replacement | |||||
|
30
|
30
1623-984 Clamp,wire - 76.14mm lg w/6.25 hole |
1623-984 |
US $17.70 |
||
|
31
|
31
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
32
|
32
8002-040 ScrewCap |
8002-040 |
US $10.41 |
||
|
33
|
33
0708-398 BracketEngine mounting |
0708-398 |
US $30.95 |
||
