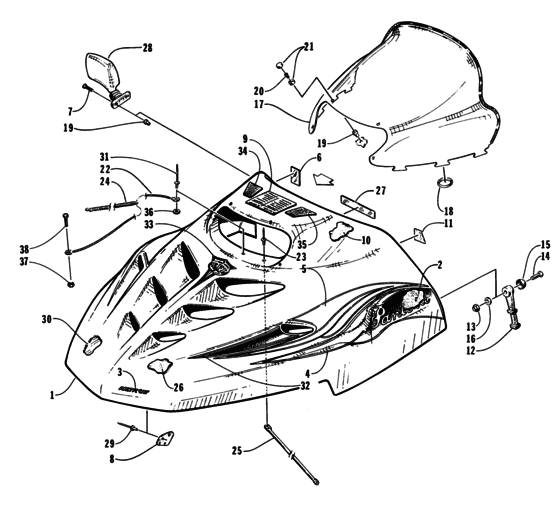

Hood And Windshield Assembly Diagram Arctic Cat PANTERA Pantera
- Model code
- 96PTA-1996
- Year
- 1996
- Commercial Name
- Pantera
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Pantera
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0718-413 Hood |
0718-413 |
US $1,768.90 |
||
|
1
|
1
0718-414 Hood w/decals |
0718-414 |
US $2,112.55 |
||
|
2
|
2
0717-068 FoamRight; hood |
0717-068 |
US $20.46 |
||
|
2
|
2
0717-069 FoamLeft; hood |
0717-069 |
US $19.20 |
||
|
3
|
3
2611-154 Decal"arctic cat" |
2611-154 |
US $7.42 |
||
|
4
|
4
2611-306 DecalRight lower; hood |
2611-306 |
US $75.94 |
||
|
4
|
4
2611-307 DecalLeft lower; hood |
2611-307 |
US $73.50 |
||
|
5
|
5
2611-304 DecalRight upper; hood |
2611-304 |
US $62.27 |
||
|
5
|
5
2611-305 DecalLeft upper; hood |
2611-305 |
US $62.27 |
||
|
6
|
6
2611-309 DecalReverse |
2611-309 |
US $13.65 |
||
|
7
|
7
0123-549 ScrewMachine |
0123-549 |
US $8.60 |
||
|
8
|
8
0616-763 BracketHood hinge |
0616-763 |
US $5.14 |
||
|
9
|
9
1611-575 DecalWarning |
1611-575 |
US $49.96 |
||
|
10
|
10
0717-062 FoamRight; hood upper |
0717-062 |
US $12.34 |
||
|
10
|
10
0717-063 FoamLeft; hood upper |
0717-063 |
US $12.34 |
||
|
11
|
11
2611-158 DecalEngine/battery; caution |
2611-158 |
US $14.91 |
||
|
12
|
12
0115-306 Strap |
0115-306 |
US $10.18 |
||
|
13
|
13
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
14
|
14
8009-614 ScrewMachine |
8009-614 |
US $3.90 |
||
|
15
|
15
0623-261 WasherCup |
0623-261 |
US $44.88 |
||
|
16
|
16
8050-217 Washer |
8050-217 |
US $3 |
||
|
17
|
17
0616-815 Windshield |
0616-815 |
US $150.20 |
||
| replacement | |||||
|
17
|
17
0616-959
Windshield
|
0616-959 |
— | ||
|
18
|
18
0616-032 O-ringWindshield |
0616-032 |
US $14.76 |
||
|
19
|
19
0123-010 NutExpansion |
0123-010 |
US $168.60 |
||
|
20
|
20
0623-121 ScrewMachine |
0623-121 |
US $65 |
||
|
21
|
21
0124-054 Snap cap w/washer |
0124-054 |
US $16.50 |
||
|
22
|
22
0616-614 CableHood |
0616-614 |
US $27.42 |
||
|
23
|
23
8061-708 Rivet |
8061-708 |
US $13.40 |
||
|
24
|
24
0123-510 Spring |
0123-510 |
US $28.06 |
||
|
25
|
25
0616-662 BarTie |
0616-662 |
US $58.81 |
||
|
26
|
26
0717-084 FoamRight rear; hood |
0717-084 |
US $12.41 |
||
|
26
|
26
0717-085 FoamLeft rear; hood |
0717-085 |
US $17.93 |
||
|
27
|
27
1611-633 DecalCaution-fuel |
1611-633 |
US $26.64 |
||
|
28
|
28
0636-925
Mirror
|
0636-925 |
— | ||
|
28
|
28
0636-926
Mirror
|
0636-926 |
— | ||
|
29
|
29
8061-706 Rivet |
8061-706 |
US $13.30 |
||
|
30
|
30
0706-548 FoilNosepiece & rh pod |
0706-548 |
US $6.18 |
||
|
31
|
31
8061-710 Rivet |
8061-710 |
US $30 |
||
|
32
|
32
2611-302 DecalRight front; hood |
2611-302 |
US $36.08 |
||
|
32
|
32
2611-303 DecalLeft front; hood |
2611-303 |
US $36.08 |
||
|
33
|
33
2611-448 DecalCrest |
2611-448 |
US $19.87 |
||
|
34
|
34
1611-780 DecalFrench - right; warning |
1611-780 |
US $131.59 |
||
|
35
|
35
1611-781
Decal
|
1611-781 |
— | ||
|
36
|
36
0123-802 Washer |
0123-802 |
US $1.16 |
||
|
37
|
37
0123-430 NutLock |
0123-430 |
US $18.15 |
||
|
38
|
38
0623-413 ScrewMachine |
0623-413 |
US $1.10 |
||
