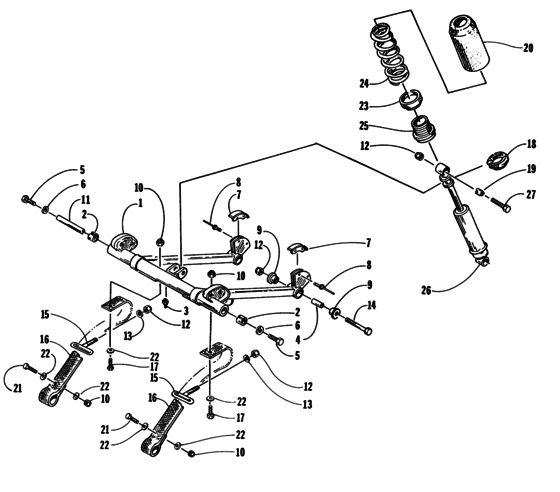

Rear Suspension Front Arm Assembly Diagram Arctic Cat THUNDERCAT Thundercat
- Model code
- 97TCA-1997
- Year
- 1997
- Commercial Name
- Thundercat
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Thundercat
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0704-353 ArmInc. 2-3 and 10; front suspension |
0704-353 |
US $254.23 |
||
|
2
|
2
0603-083 Bearing |
0603-083 |
US $37.24 |
||
|
3
|
3
0623-010 ZerkGrease |
0623-010 |
US $5.81 |
||
|
4
|
4
0104-629 Spacer |
0104-629 |
US $20.77 |
||
|
5
|
5
0623-654 ScrewCap |
0623-654 |
US $0.85 |
||
|
6
|
6
8051-277 WasherLock |
8051-277 |
US $65.40 |
||
|
7
|
7
0604-183 BumperTrack guide |
0604-183 |
US $29.71 |
||
|
8
|
8
8060-710 Rivet |
8060-710 |
US $4.30 |
||
|
9
|
9
0104-386 Bushing |
0104-386 |
US $39.20 |
||
|
10
|
10
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
11
|
11
0114-163 AxleBackrest |
0114-163 |
US $52.04 |
||
|
12
|
12
8040-486 NutLock |
8040-486 |
from US $1.60 |
||
|
13
|
13
8050-277 Washer |
8050-277 |
US $10.75 |
||
|
14
|
14
8002-224 ScrewCap |
8002-224 |
US $5.43 |
||
|
15
|
15
0704-256 AdjusterFront arm |
0704-256 |
US $19.83 |
||
|
16
|
16
1604-131 StrapLimiter |
1604-131 |
US $77.74 |
||
|
17
|
17
8002-042 ScrewCap |
8002-042 |
US $5.90 |
||
|
18
|
18
0603-033 RetainerSpring |
0603-033 |
US $22.76 |
||
| replacement | |||||
|
18
|
18
1603-889 RetainerSpring |
1603-889 |
from US $13.42 |
||
|
19
|
19
0603-030 AxleShock upper |
0603-030 |
US $2.52 |
||
|
20
|
20
0604-590 CoverSuspension spring |
0604-590 |
US $25.51 |
||
|
21
|
21
8002-042 ScrewCap |
8002-042 |
US $5.90 |
||
|
22
|
22
0623-184 Washer |
0623-184 |
US $7.50 |
||
|
23
|
23
0603-259 NutRetainer |
0603-259 |
US $9.77 |
||
|
24
|
24
1604-125
Spring
|
1604-125 |
— | ||
|
25
|
25
0603-147 SleeveThreaded; shock |
0603-147 |
US $95.13 |
||
|
26
|
26
1604-093
Shock absorber
|
1604-093 |
— | ||
|
27
|
27
8002-226 ScrewCap |
8002-226 |
US $4.80 |
||
