Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0603-668 Ski Plastic	0603-668	US $184.39
2	2 0703-344 Skag	0703-344	US $79.09
3	3 8050-247 Washer	8050-247	US $8.80
4	4 8040-486 Nut Lock	8040-486	from US $1.60
5	5 0623-552 Screw Cap	0623-552	US $13.42
6	6 0123-296 Nut Lock	0123-296	US $33.72
7	7 0603-036 Damper	0603-036	US $78.16
8	8 0603-034 Axle Spindle	0603-034	US $17.83
	replacement
8	8 2603-548 Axle Spindle	2603-548	US $17.83
9	9 0603-158 Bearing	0603-158	US $31.04
10	10 0603-621 Insert Ski saddle	0603-621	US $15.76
11	11 0703-481 Spindle Inc. two no. 9, one no. 13 and four no. 12; left; housing	0703-481	US $311.58
11	11 0703-480 Spindle Inc. two no. 9, one no. 13 and four no. 12; right; housing	0703-480	US $311.58
12	12 0603-049 Cap Spindle	0603-049	US $4.40
13	13 0623-010 Zerk Grease	0623-010	US $5.81
14	14 8041-366 Nut Lock	8041-366	US $4.30
15	15 0123-458 Pin Cotter	0123-458	US $5.80
16	16 0603-647 Insert Spindle	0603-647	US $11.64
17	17 8007-581 Screw	8007-581	US $5.90
18	18 2611-388 Decal Aws spindle	2611-388	US $2.74
19	19 8050-272 Washer	8050-272	US $2.15
20	20 0603-624 Handle Plastic	0603-624	US $61.16
21	21 8002-135 Screw Cap	8002-135	US $2.85
22	22 8050-307 Washer 4x4	8050-307	US $1.10
23	23 8041-426 Nut Lock	8041-426	from US $1.60
24	24 8002-142 Screw	8002-142	—
25	25 0603-616 Spacer Saddle	0603-616	US $19.09
26	26 0703-269 Saddle Inc. 17; ski	0703-269	US $71.89

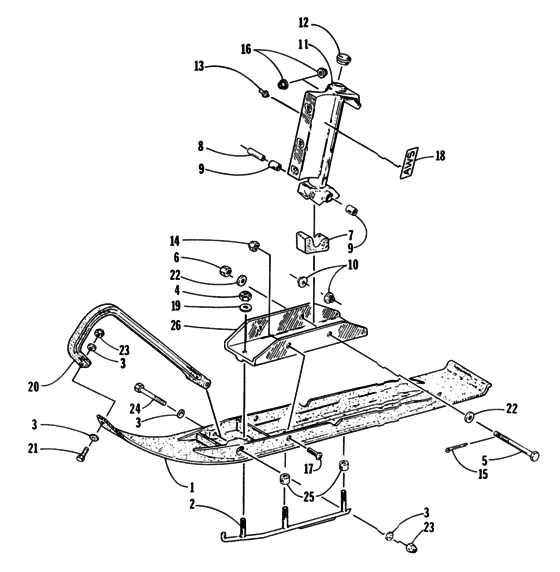

Ski And Spindle Assembly Diagram Arctic Cat THUNDERCAT Thundercat General 10952333-696884
