	Description	OEM Part #	Price
1	1 0718-528 Tunnel assembly	0718-528	—
2	2 0706-716 Bracket Rear; rh; susp. mtg.	0706-716	US $92.76
	replacement
2	2 2706-608 Bracket Susp.rh-ptd blk	2706-608	US $92.76
2	2 0706-717 Bracket Rear; lh; susp. mtg.	0706-717	US $92.76
	replacement
2	2 2706-609 Bracket Susp.lh-ptd blk	2706-609	US $92.76
3	3 0616-965 Plate Front; suspension mounting	0616-965	US $14.82
	replacement
3	3 2706-111 Plate Front; suspension mounting	2706-111	US $14.82
4	4 8060-506 Rivet	8060-506	US $4.30
5	5 2611-742 Decal Rear; tunnel	2611-742	US $16.13
6	6 2611-518 Decal Right; tunnel	2611-518	US $47.49
6	6 2611-519 Decal Left; tunnel	2611-519	US $52.26
7	7 2611-741 Decal Fastrack- tunnel	2611-741	US $14.89
8	8 0606-983 Plug Body	0606-983	US $3.84
9	9 0616-728 Plate Rear tunnel; end	0616-728	US $258.20
10	10 0606-029 Red reflector	0606-029	US $58.48
11	11 0623-269 Clip Retaining	0623-269	US $8.25
12	12 8002-046 Screw Cap	8002-046	US $15
13	13 1611-567 Decal French; towing caution	1611-567	US $27.98
14	14 1611-566 Decal	1611-566	—
15	15 8002-040 Screw Cap	8002-040	US $10.41
16	16 8050-217 Washer	8050-217	US $3
17	17 8040-366 Nut Lock	8040-366	US $8.60
18	18 8007-585 Screw Cap	8007-585	US $2.05
19	19 8007-582 Screw Machine	8007-582	US $2.40
20	20 0616-612 Snowflap	0616-612	—
20	20 0616-613 Snowflap	0616-613	—
21	21 0716-481 Bumper	0716-481	—
21	21 0616-730 Bumper	0616-730	—
22	22 0606-821 Insert Bumper	0606-821	US $54.78
	replacement
22	22 2706-600 Insert	2706-600	—

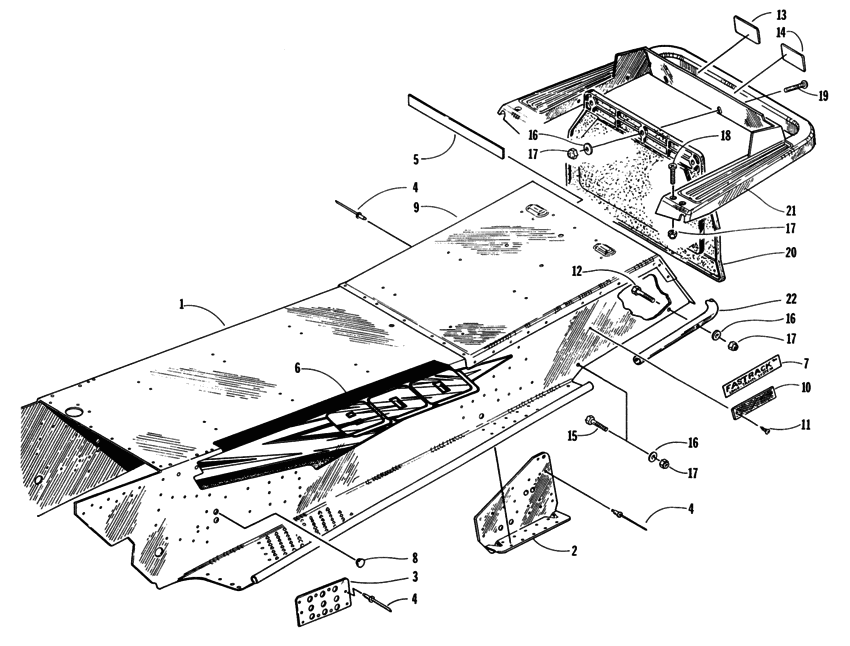

Tunnel and rear bumper Diagram Arctic Cat THUNDERCAT Thundercat General 10952339-696884
