	Description	OEM Part #	Price
1	1 0703-347 Ski	0703-347	US $254.21
2	2 0703-348 Skag	0703-348	US $60.74
	replacement
2	2 1703-003 Wearbar	1703-003	US $53.32
3	3 0603-591 Spacer Spindle	0603-591	US $6.05
4	4 8009-672 Screw Cap	8009-672	US $1.87
5	5 0603-357 Handle Ski	0603-357	US $31.10
6	6 8002-231 Screw	8002-231	—
7	7 8050-272 Washer	8050-272	US $2.15
8	8 8040-486 Nut Lock	8040-486	from US $1.60
9	9 0123-107 Nut Lock	0123-107	US $8.64
10	10 8050-247 Washer	8050-247	US $8.80
11	11 0123-458 Pin Cotter	0123-458	US $5.80
12	12 0603-582 Sleeve Ski	0603-582	US $13.58
13	13 0623-477 Screw Cap	0623-477	US $16.15
14	14 0603-034 Axle Spindle	0603-034	US $17.83
	replacement
14	14 2603-548 Axle Spindle	2603-548	US $17.83
15	15 0623-010 Zerk Grease	0623-010	US $5.81
16	16 0703-263 Saddle Ski	0703-263	US $64.75
17	17 0603-036 Damper	0603-036	US $78.16
18	18 0623-174 Nut Slotted	0623-174	US $82.10
19	19 0703-481 Spindle Inc. two no. 9, one no. 13 and four no. 12; left; housing	0703-481	US $311.58
19	19 0703-480 Spindle Inc. two no. 9, one no. 13 and four no. 12; right; housing	0703-480	US $311.58
20	20 0603-158 Bearing	0603-158	US $31.04
21	21 0603-049 Cap Spindle	0603-049	US $4.40
22	22 0603-647 Insert Spindle	0603-647	US $11.64
23	23 2611-388 Decal Aws spindle	2611-388	US $2.74

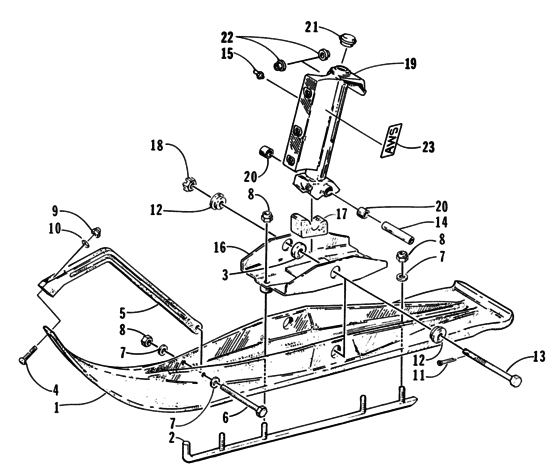

Ski And Spindle Assembly Diagram Arctic Cat THUNDERCAT Thundercat Mountain Cat General 10952380-696885
