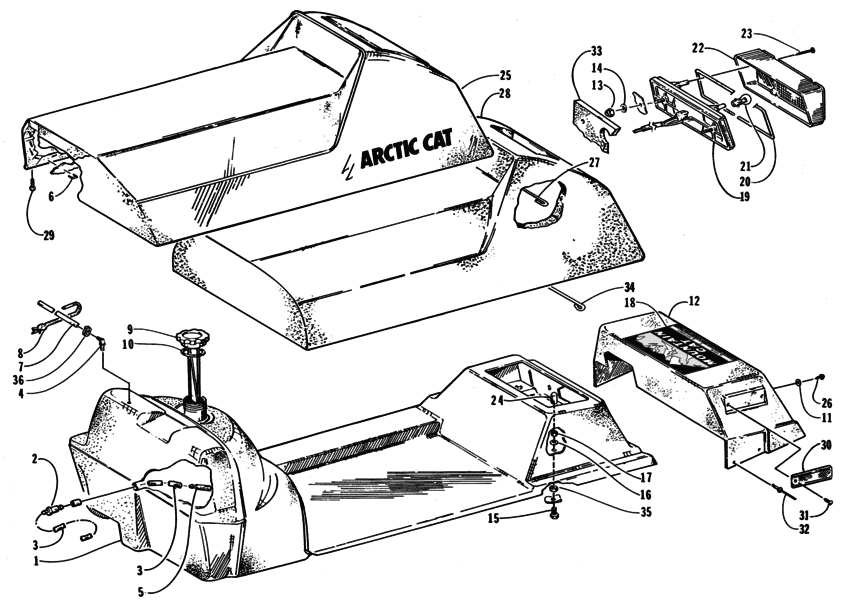

Gas Tank, Seat, And Taillight Assembly Diagram Arctic Cat THUNDERCAT Thundercat Mountain Cat
- Model code
- 98TCB-1998
- Year
- 1998
- Commercial Name
- Thundercat Mountain Cat
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Thundercat Mountain Cat
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
0718-623 Complete seat assembly |
0718-623 |
US $962.28 |
||
|
1
|
1
0770-213 TankInc. 2-5; gas |
0770-213 |
US $306.55 |
||
|
2
|
2
0670-042 OutletTank |
0670-042 |
from US $16 |
||
|
3
|
3
0610-017 Hose100'; gasline |
0610-017 |
US $240.38 |
||
|
3
|
3
0610-008 Hose25'; gas line |
0610-008 |
US $98.94 |
||
|
4
|
4
0670-572
Vent
|
0670-572 |
— | ||
|
5
|
5
0510-358 Strainer |
0510-358 |
US $8.85 |
||
|
6
|
6
0623-577 Staple |
0623-577 |
US $148.85 |
||
| replacement | |||||
|
6
|
6
0624-528 Staple |
0624-528 |
US $148.85 |
||
|
7
|
7
0610-010 HoseVent-25' |
0610-010 |
US $70.91 |
||
|
8
|
8
0623-164 TiePush; cable |
0623-164 |
US $6.75 |
||
|
9
|
9
0670-525 CapInc. 7; gas tank |
0670-525 |
US $76.87 |
||
|
10
|
10
0109-733 GasketGas cap |
0109-733 |
US $4.58 |
||
|
11
|
11
8050-157 Washer |
8050-157 |
US $33 |
||
|
12
|
12
0616-022 CoverTunnel extension |
0616-022 |
US $118.38 |
||
|
13
|
13
0623-038 Nut w/washer |
0623-038 |
US $2.15 |
||
|
14
|
14
0623-184 Washer |
0623-184 |
US $7.50 |
||
|
15
|
15
8002-042 ScrewCap |
8002-042 |
US $5.90 |
||
|
16
|
16
0623-184 Washer |
0623-184 |
US $7.50 |
||
|
17
|
17
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
18
|
18
2611-640 DecalMountain cat |
2611-640 |
US $43.60 |
||
|
19
|
19
0609-091 Taillight w/socket ass'y |
0609-091 |
US $74.39 |
||
|
20
|
20
0609-092 GasketTaillight |
0609-092 |
US $12.71 |
||
|
21
|
21
0109-460 BulbStop taillight |
0109-460 |
US $2.70 |
||
|
22
|
22
0609-090 LensTaillight |
0609-090 |
US $59.81 |
||
|
23
|
23
0609-093 Screw |
0609-093 |
US $5.90 |
||
|
24
|
24
0623-404 CapProtector |
0623-404 |
US $12 |
||
|
25
|
25
0716-846 CoverSeat |
0716-846 |
US $354.68 |
||
| replacements | |||||
|
25
|
25
0716-609
Cover
|
0716-609 |
— | ||
|
25
|
25
0716-602
Cover
|
0716-602 |
— | ||
|
26
|
26
0623-378 ScrewSelf-tapping |
0623-378 |
US $5.35 |
||
|
27
|
27
0606-057 WireSeat |
0606-057 |
US $10.50 |
||
|
28
|
28
0716-532 FoamSeat cushion |
0716-532 |
US $351.98 |
||
|
29
|
29
0124-031 Screw |
0124-031 |
US $27.98 |
||
|
30
|
30
0606-029 Red reflector |
0606-029 |
US $58.48 |
||
|
31
|
31
0623-269 ClipRetaining |
0623-269 |
US $8.25 |
||
|
32
|
32
8061-426 Rivet |
8061-426 |
US $4.35 |
||
|
33
|
33
0617-098 FoamTaillight; seat base |
0617-098 |
US $5.57 |
||
|
34
|
34
1606-150 WireSeat |
1606-150 |
US $3.07 |
||
|
35
|
35
8041-366 NutLock |
8041-366 |
US $4.30 |
||
|
36
|
36
0623-063 ClampGasline |
0623-063 |
US $29.45 |
||
