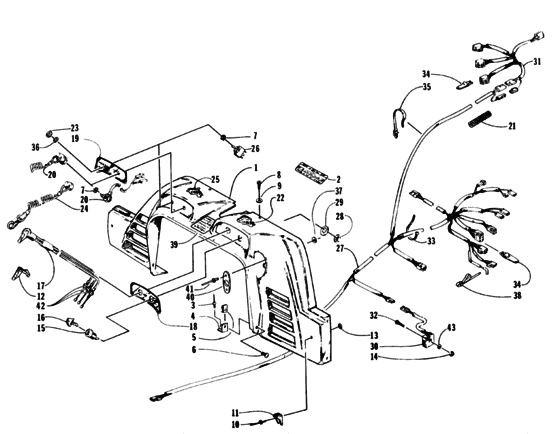

Console, switches, and wiring assemblies Diagram Arctic Cat THUNDERCAT Thundercat Mountain Cat
- Model code
- 96TCB-1996
- Year
- 1996
- Commercial Name
- Thundercat Mountain Cat
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Thundercat Mountain Cat
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0616-652
Console
|
0616-652 |
— | ||
| replacement | |||||
|
1
|
1
0716-139 Console |
0716-139 |
US $321.53 |
||
|
2
|
2
1611-408 DecalWarning |
1611-408 |
US $16.06 |
||
|
3
|
3
8060-484 Rivet |
8060-484 |
US $5.80 |
||
|
4
|
4
0106-956 Bracket |
0106-956 |
US $2.85 |
||
|
5
|
5
0123-539
Nut
|
0123-539 |
— | ||
|
6
|
6
8007-577
Screw
|
8007-577 |
— | ||
|
7
|
7
0123-985 WasherLock-int |
0123-985 |
US $21.10 |
||
|
8
|
8
0623-378 ScrewSelf-tapping |
0623-378 |
US $5.35 |
||
|
9
|
9
8050-157 Washer |
8050-157 |
US $33 |
||
|
10
|
10
8060-428 Rivet |
8060-428 |
US $12 |
||
|
11
|
11
0115-307 Latch cup |
0115-307 |
US $2.66 |
||
|
12
|
12
0636-062 Choke lever kit |
0636-062 |
US $11.54 |
||
|
13
|
13
0123-149 Washer |
0123-149 |
US $11.28 |
||
|
14
|
14
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
15
|
15
0609-081 SwitchIgnition |
0609-081 |
US $50.82 |
||
|
16
|
16
0609-080 Key |
0609-080 |
US $95.45 |
||
| replacement | |||||
|
16
|
16
0609-412
Key
|
0609-412 |
— | ||
|
17
|
17
0687-057 CableInc. 12 & 21; choke |
0687-057 |
US $143.87 |
||
| replacement | |||||
|
17
|
17
0687-115 CableChoke |
0687-115 |
US $143.87 |
||
|
18
|
18
2611-150 PlateRight; console switch |
2611-150 |
US $17.39 |
||
|
19
|
19
2611-151 DecalLeft; console switch |
2611-151 |
US $21.16 |
||
|
20
|
20
0709-054 SwitchInc. 41; tether |
0709-054 |
US $35.93 |
||
|
21
|
21
0706-994 LoomHarness |
0706-994 |
US $7.42 |
||
|
22
|
22
0617-202 FoamRight; console |
0617-202 |
US $11.17 |
||
|
23
|
23
0609-220 NutRetaining |
0609-220 |
US $6.48 |
||
|
24
|
24
0709-055 CapTether switch |
0709-055 |
US $32.19 |
||
|
25
|
25
0617-203 FoamLeft; console |
0617-203 |
US $14.91 |
||
|
26
|
26
0609-187
Switch
|
0609-187 |
— | ||
|
27
|
27
0686-337 HarnessMain |
0686-337 |
US $180.65 |
||
|
28
|
28
0123-900 NutKnurled |
0123-900 |
US $10.54 |
||
|
29
|
29
0123-899
Washer
|
0123-899 |
— | ||
|
30
|
30
0630-001 RegulatorVoltage |
0630-001 |
US $61.98 |
||
|
31
|
31
0686-332 HarnessHeadlight |
0686-332 |
US $52.26 |
||
|
32
|
32
8002-048 ScrewCap |
8002-048 |
US $3.40 |
||
|
33
|
33
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
34
|
34
0609-069 Posistor |
0609-069 |
US $23.85 |
||
|
35
|
35
0623-164 TiePush; cable |
0623-164 |
US $6.75 |
||
|
36
|
36
0623-153 Washer |
0623-153 |
US $3.30 |
||
|
37
|
37
0123-802 Washer |
0123-802 |
US $1.16 |
||
|
38
|
38
0623-285 Cable tieDouble loop |
0623-285 |
US $28.70 |
||
|
39
|
39
1611-414
Decal
|
1611-414 |
— | ||
|
40
|
40
0606-211 PlateRecoil |
0606-211 |
US $19.65 |
||
|
41
|
41
8060-708 Rivet |
8060-708 |
US $17.60 |
||
|
42
|
42
0623-464 NutJam |
0623-464 |
US $0.31 |
||
|
43
|
43
0123-260 Washer |
0123-260 |
US $10.40 |
||
