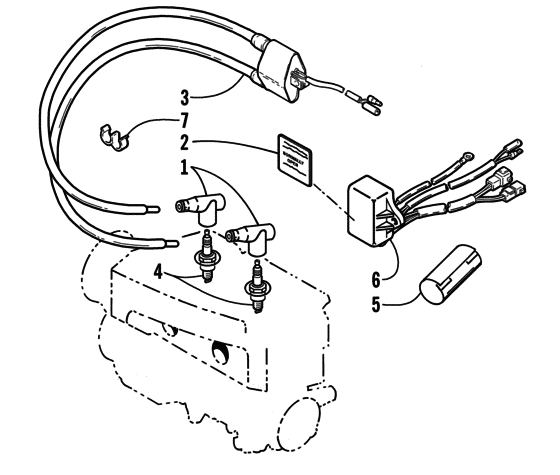

Electrical Diagram Arctic Cat Z-series Z370
- Model code
- S2000ZAAFCUS-2000
- Engine Capacity
- 367
- Year
- 2000
- Commercial Name
- Z370
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Z370
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3003-737 Cap ass'y |
3003-737 |
US $22.94 |
||
| replacement | |||||
|
1
|
1
3006-367 CapSpark plug |
3006-367 |
US $27.22 |
||
|
2
|
2
2611-641
Decal
|
2611-641 |
— | ||
|
3
|
3
3005-170 CoilIgnition |
3005-170 |
US $261.74 |
||
|
4
|
4
0217-709 Spark Plug (Br9eya)Br9eya; spark |
0217-709 |
US $25.52 |
||
|
5
|
5
3003-474 CoverConnector |
3003-474 |
US $18.54 |
||
|
6
|
6
3005-682 Cdi unit |
3005-682 |
US $1,049.30 |
||
| replacement | |||||
|
6
|
6
3005-919 Cdi unit |
3005-919 |
US $1,049.30 |
||
|
7
|
7
3005-387 Clip |
3005-387 |
US $4.50 |
||
