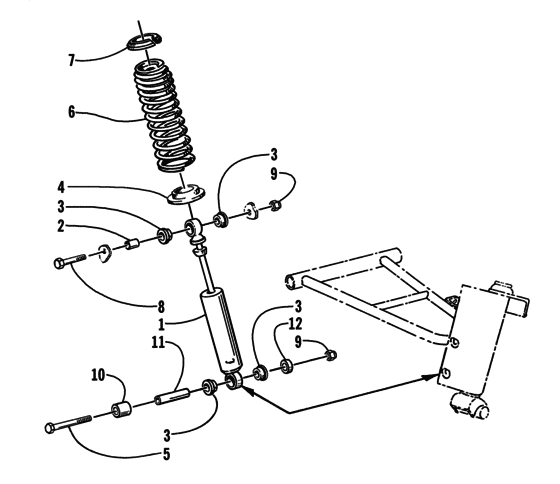

Shock absorber assembly Diagram Arctic Cat Z-series Z370
- Model code
- S2000ZAAFCUS-2000
- Engine Capacity
- 367
- Year
- 2000
- Commercial Name
- Z370
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Z370
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1603-253 ShockInc. 26-27; front suspension |
1603-253 |
US $153.81 |
||
|
2
|
2
0604-309 SleeveShock |
0604-309 |
US $18.20 |
||
|
3
|
3
0604-310 BushingShock absorber |
0604-310 |
US $33.72 |
||
|
4
|
4
0603-900 RetainerSpring |
0603-900 |
US $11.16 |
||
| replacement | |||||
|
4
|
4
2703-187 RetainerShock; spring |
2703-187 |
US $11.16 |
||
|
5
|
5
8002-234
Screw
|
8002-234 |
— | ||
|
6
|
6
0703-630 SpringFront suspension |
0703-630 |
US $68.52 |
||
|
7
|
7
0603-033 RetainerSpring |
0603-033 |
US $22.76 |
||
| replacement | |||||
|
7
|
7
1603-889 RetainerSpring |
1603-889 |
from US $14.35 |
||
|
8
|
8
8002-226 ScrewCap |
8002-226 |
US $4.80 |
||
|
9
|
9
8040-486 NutLock |
8040-486 |
from US $1.60 |
||
|
10
|
10
0603-854 SpacerFront; shock mount |
0603-854 |
US $27.73 |
||
|
11
|
11
1604-184
Axle
|
1604-184 |
— | ||
|
12
|
12
0603-855 SpacerRear; shock mount |
0603-855 |
US $9.16 |
||
