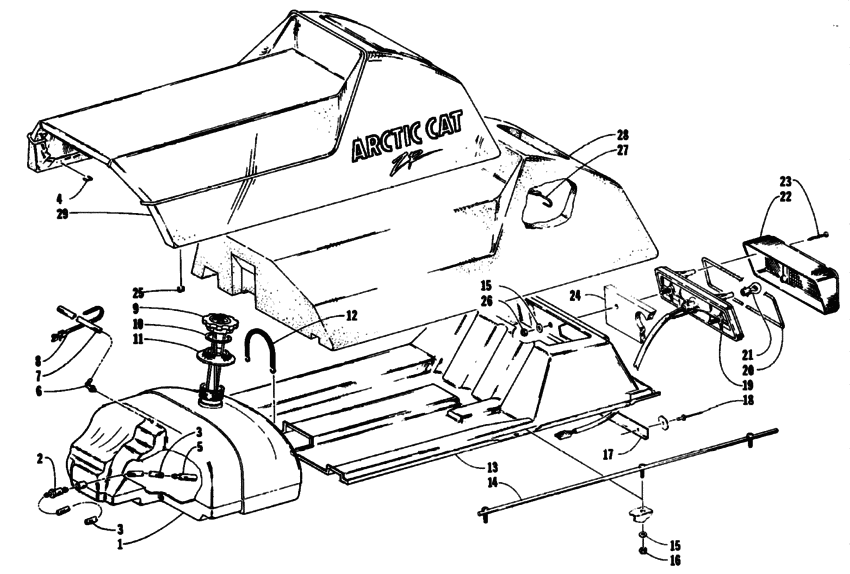

Gas tank, seat, and taillight assemblies Diagram Arctic Cat ZR-series ZR580
- Model code
- 0650-248-1993
- Engine Capacity
- 580
- Year
- 1993
- Commercial Name
- ZR580
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR580
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0770-092 TankInc. 2, 3, 5, 6; gas |
0770-092 |
US $416.84 |
||
|
2
|
2
0670-042 OutletTank |
0670-042 |
from US $16 |
||
|
3
|
3
0610-017 Hose100'; gasline |
0610-017 |
US $240.38 |
||
|
3
|
3
0610-008 Hose25'; gas line |
0610-008 |
US $98.94 |
||
|
4
|
4
0623-092
Staples
|
0623-092 |
— | ||
|
5
|
5
0510-358 Strainer |
0510-358 |
US $8.85 |
||
|
6
|
6
0670-242 Vent90 |
0670-242 |
US $16.10 |
||
|
7
|
7
0610-010 HoseVent-25' |
0610-010 |
US $70.91 |
||
|
8
|
8
0623-164 TiePush; cable |
0623-164 |
US $6.75 |
||
|
9
|
9
0670-310 CapInc. 10; gas tank |
0670-310 |
US $115.14 |
||
|
10
|
10
0670-119 SealGas cap |
0670-119 |
US $8.60 |
||
|
11
|
11
0109-733 GasketGas cap |
0109-733 |
US $4.58 |
||
|
12
|
12
0123-808 Spring |
0123-808 |
US $12.50 |
||
|
13
|
13
0616-175
Seat
|
0616-175 |
— | ||
|
14
|
14
0706-920 RodLeft; holddown |
0706-920 |
US $18.63 |
||
|
14
|
14
0706-921 RodRight; holddown |
0706-921 |
US $21.13 |
||
|
15
|
15
8050-217 Washer |
8050-217 |
US $3 |
||
|
16
|
16
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
17
|
17
0606-675
Brace
|
0606-675 |
— | ||
|
18
|
18
8061-506 Rivet |
8061-506 |
US $13.30 |
||
|
19
|
19
0609-091 Taillight w/socket ass'y |
0609-091 |
US $74.39 |
||
|
20
|
20
0609-092 GasketTaillight |
0609-092 |
US $12.71 |
||
|
21
|
21
0109-460 BulbStop taillight |
0109-460 |
US $2.70 |
||
|
22
|
22
0609-090 LensTaillight |
0609-090 |
US $59.81 |
||
|
23
|
23
0609-093 Screw |
0609-093 |
US $5.90 |
||
|
24
|
24
0617-098 FoamTaillight; seat base |
0617-098 |
US $5.57 |
||
|
24
|
24
0623-109
Staples
|
0623-109 |
— | ||
|
26
|
26
0623-038 Nut w/washer |
0623-038 |
US $2.15 |
||
|
27
|
27
0606-057 WireSeat |
0606-057 |
US $10.50 |
||
|
28
|
28
0706-818 FoamSeat |
0706-818 |
US $188.89 |
||
|
29
|
29
0706-855
Cover
|
0706-855 |
— |
