Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1770-078 Tank, Gas - Assembly Assembly \| (inc. 2-5)	1770-078	US $461.26
2	2 0470-438 Cap Gas Assembly \| (inc. 3)	0470-438	US $15.58
3	3 0109-733 Gasket Gas cap Assembly \| (inc. 3)	0109-733	US $4.58
4	4 1670-787 Valve Check Assembly \| (inc. 3)	1670-787	US $39.34
5	5 1670-822 Grommet Assembly \| (inc. 3)	1670-822	US $5.14
6	6 1623-233 Clamp Hose Assembly \| (inc. 3)	1623-233	US $4.40
7	7 6101-009 Hose 50 ft; vent 50 ft	6101-009	US $418.10
7	7 6101-001 Hose 100 ft; gasline 100 ft	6101-001	US $668.74
8	8 8470-516 Screw Machine 100 ft	8470-516	US $0.86
9	9 2623-006 CLAMP,CABLE-.625 INSUL-.03 MTG 100 ft	2623-006	US $3.33
10	10 1623-637 Clip U-nut 100 ft	1623-637	US $13
11	11 8408-517 SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y W/2353 100 ft	8408-517	US $16.24
12	12 2670-431 RETAINER,FLANGE-LSA 100 ft	2670-431	US $28.06
13	13 2670-386 SENDER, FUEL LEVEL (inc. 16)	2670-386	US $191.01
14	14 2670-235 Float,fuel pump-walbro 75-22 (inc. 16)	2670-235	US $13.92
15	15 2623-035 O-RING,46.9 ID X 5.3mm WIDE - 2-328 (inc. 16)	2623-035	US $6.25
16	16 1770-170 Fuel Level Sensor Kit (inc. 16)	1770-170	US $94.90
17	17 0645-760 PAD,BATTERY (inc. 16)	0645-760	US $4.07
18	18 8427-602 Nut (inc. 16)	8427-602	US $1.45
19	19 5706-771 BRKT,MTG-SEAT LATCH-ASSY (inc. 16)	5706-771	US $13.99
20	20 8477-616 Screw Machine (inc. 16)	8477-616	US $4.40

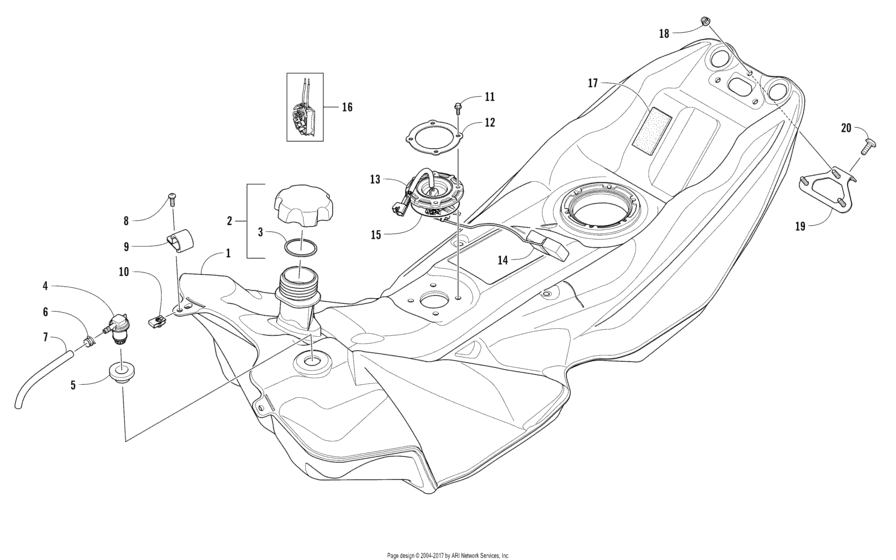

Gas Tank Assembly (104503) Diagram Arctic Cat ZR-series ZR3000 LXR 129 Black General 16866184-862927
