	Description	OEM Part #	Price
1	1 0662-306 Engine Aw44l1	0662-306	US $4,697.91
2	2 0636-363 Handle "d"	0636-363	US $13.99
3	3 0606-885 Cap Recoil handle	0606-885	US $1.26
4	4 0608-362 Bracket Right; engine mounting	0608-362	US $70.98
5	5 8002-136 Screw Cap	8002-136	US $7.50
6	6 8005-581 Screw Cap	8005-581	US $3.80
7	7 8041-426 Nut Lock	8041-426	from US $1.60
8	8 0623-987 Washer	0623-987	US $3.02
9	9 1670-328 Foil Protective	1670-328	US $16.80
10	10 0670-243 Plug Gas tank	0670-243	US $1.92
11	11 0623-801 Adapter Fitting	0623-801	US $13.99
12	12 0124-045 Clamp Hose	0124-045	US $37.30
13	13 0610-007 Line Fuel	0610-007	US $157.54
14	14 0608-380 Snubber Bottom out	0608-380	US $34.85
15	15 1623-020 Bolt Ribbed; carriage Press-Fit ;	1623-020	US $21.03
16	16 0708-155 Bracket Left; engine mounting	0708-155	US $279.15
	replacement
16	16 0708-429 Brkt Eng mtg-lh assy	0708-429	US $279.15
17	17 0707-582 Retainer Velcro; drive belt	0707-582	US $18.10
18	18 8408-820 Screw Cap	8408-820	US $3.52
19	19 0725-361 Assembly	0725-361	US $988.44
	replacement
19	19 0746-422 Clutch Drive-uncal-8.0" 30mm/d/nfp/440sp	0746-422	US $832.57
20	20 0627-010 Belt Drive	0627-010	US $97.96
21	21 0623-210 Washer Lock	0623-210	US $0.88
22	22 0623-804 Bolt Clutch	0623-804	US $15.86
23	23 1623-031 Screw Self-tapping	1623-031	US $12.30
	replacement
23	23 2623-165 Screw, Self-Tapping	2623-165	US $19.30
24	24 0610-513 Hose 25 ft; valve	0610-513	US $107.02
25	25 1612-620 T-fitting	1612-620	US $2.50
26	26 8050-242 Washer	8050-242	US $28.20
27	27 0123-811 Tie Cable	0123-811	US $2.15

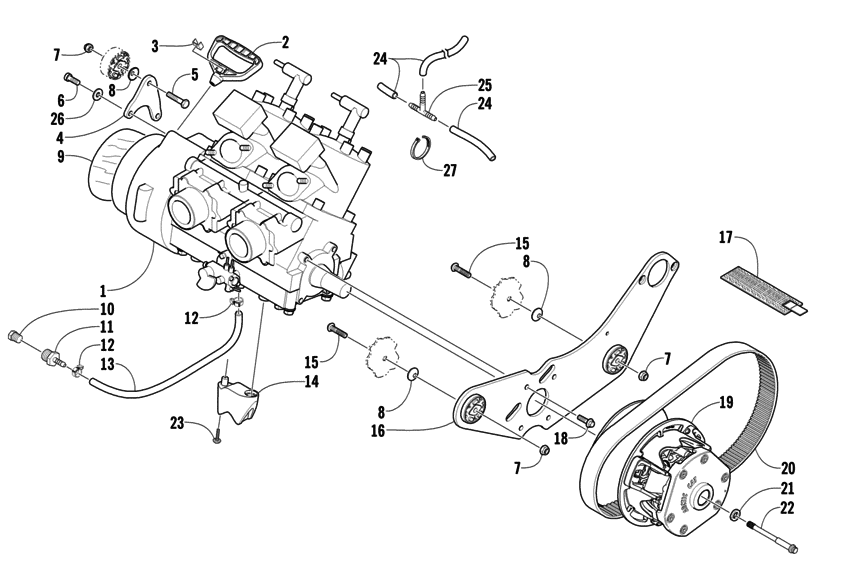

Engine And Related Parts Diagram Arctic Cat ZR-series ZR440 Sno Pro Green General 10988636-697705
