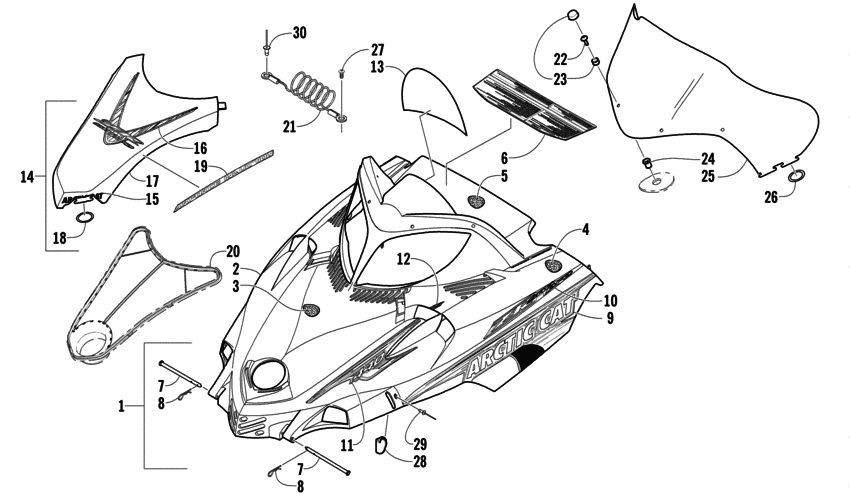

Hood And Windshield Assembly Diagram Arctic Cat ZR-series ZR440 Sno Pro
- Model code
- S2002ZRBPRUSG
- Engine Capacity
- 440
- Year
- 2002
- Commercial Name
- ZR440 Sno Pro
- Sales region
- General
- Colour
- Green
- Power
- 90 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR440 Sno Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1718-127 Hood w/decalsinc. 2-13 ; |
1718-127 |
US $1,622.12 |
||
|
2
|
2
1718-126 Hood w/o decalsinc. 3-8 ; |
1718-126 |
US $978.84 |
||
|
3
|
3
0717-169 FoamMiddle; hood |
0717-169 |
US $7.42 |
||
|
4
|
4
0717-170 FoamRear - right; hood |
0717-170 |
US $7.42 |
||
|
4
|
4
0717-171 FoamRear - left; hood |
0717-171 |
US $7.42 |
||
|
5
|
5
0717-172 FoamRear; hood |
0717-172 |
US $7.42 |
||
|
6
|
6
4611-496 DecalGeneral and brake; warning |
4611-496 |
US $39.53 |
||
|
7
|
7
1623-026 PinClevis |
1623-026 |
US $30.62 |
||
|
8
|
8
0623-847 ClipHairpin |
0623-847 |
US $6.65 |
||
|
9
|
9
4611-486 DecalLower right; hood |
4611-486 |
US $139.55 |
||
|
9
|
9
4611-487 DecalLower left; hood |
4611-487 |
US $110.50 |
||
|
10
|
10
4611-484 DecalHood; "sno pro" |
4611-484 |
US $108.28 |
||
|
11
|
11
4611-482 DecalFront - right; hood |
4611-482 |
US $34.67 |
||
|
11
|
11
4611-483 DecalFront - left; hood |
4611-483 |
US $87.17 |
||
|
12
|
12
4611-491 DecalVent - rear - left; hood |
4611-491 |
US $60.74 |
||
|
12
|
12
4611-490 DecalVent - rear - right; hood |
4611-490 |
US $41.13 |
||
|
13
|
13
4611-873 DecalGauge cover |
4611-873 |
US $69.43 |
||
|
14
|
14
1718-249 CoverHood inc. 15-19 ; |
1718-249 |
US $225.55 |
||
|
15
|
15
3611-187 Decal"arctic cat"; hood |
3611-187 |
US $29.25 |
||
|
16
|
16
4611-488 DecalCenter; hood |
4611-488 |
US $106.93 |
||
|
17
|
17
2706-030 CoverHood w/o decals |
2706-030 |
US $139.55 |
||
|
18
|
18
2606-801 O-ring |
2606-801 |
US $12.02 |
||
|
19
|
19
4611-489 Decal"airforce induction" |
4611-489 |
US $37.35 |
||
|
20
|
20
2606-378 ScreenHood |
2606-378 |
US $86.45 |
||
| replacement | |||||
|
20
|
20
3606-150 ScreenHood |
3606-150 |
US $86.45 |
||
|
21
|
21
2606-726 CableHood |
2606-726 |
US $19.09 |
||
|
22
|
22
0623-902 ScrewMachine |
0623-902 |
US $6.70 |
||
|
23
|
23
0124-054 Snap cap w/washer |
0124-054 |
US $16.50 |
||
|
24
|
24
0623-845 NutExpansion |
0623-845 |
US $16.65 |
||
|
25
|
25
2606-347 Windshield |
2606-347 |
US $178.01 |
||
|
26
|
26
0616-032 O-ringWindshield |
0616-032 |
US $14.40 |
||
|
27
|
27
0623-302 ScrewSelf-tapping |
0623-302 |
US $1.72 |
||
|
28
|
28
1606-441 HolddownSide; strap |
1606-441 |
US $13.99 |
||
|
28
|
28
2606-096 Hold-downRight; hood strap |
2606-096 |
US $30.86 |
||
|
29
|
29
8061-708 Rivet |
8061-708 |
US $13.40 |
||
|
30
|
30
8060-508 Rivet |
8060-508 |
US $14.40 |
||
