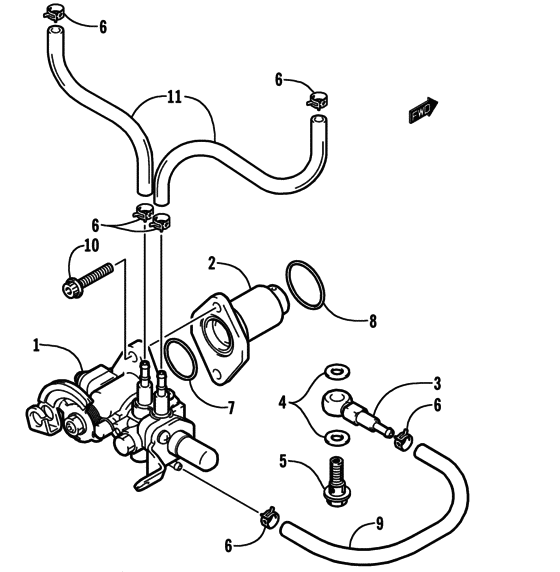

Oil pump Diagram Arctic Cat ZR-series ZR440 Sno Pro
- Model code
- S2002ZRBPRUSG
- Engine Capacity
- 440
- Year
- 2002
- Commercial Name
- ZR440 Sno Pro
- Sales region
- General
- Colour
- Green
- Power
- 90 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR440 Sno Pro
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3006-352 PumpOil |
3006-352 |
US $736.98 |
||
|
2
|
2
3004-804 Retainer |
3004-804 |
US $120.05 |
||
|
3
|
3
3004-805 Check valve |
3004-805 |
US $49.08 |
||
|
4
|
4
3402-009 Gasket |
3402-009 |
US $31.50 |
||
|
5
|
5
3004-346 Union |
3004-346 |
US $11.74 |
||
|
6
|
6
3008-037 ClipHose |
3008-037 |
US $19 |
||
|
7
|
7
3008-030 O-ring |
3008-030 |
US $23.75 |
||
|
8
|
8
3005-126 O-ring |
3005-126 |
US $5.33 |
||
|
9
|
9
3005-357 HoseOil pump |
3005-357 |
US $34.55 |
||
|
10
|
10
3006-085 Bolt |
3006-085 |
US $2.20 |
||
|
11
|
11
3008-035 HoseOil pump |
3008-035 |
US $38.82 |
