Component List ZR-series ZR440 Sno Pro
Rear Suspension Front Arm Shock Absorber

Difficulties in parts search?

Parts list

Rear Suspension Front Arm Shock Absorber

Difficulties in parts search?

	Description	OEM Part #	Price
	0704-744 Shock absorber Front arm	0704-744	US $1,057.03
	0704-750 Complete rear suspension shock absorber assembly	0704-750	US $1,549.93
	replacement
	0704-912 Complete rear suspension shock absorber assembly	0704-912	US $1,423.08
1	1 0604-625 Eyelet	0604-625	US $88.02
2	2 2604-230 Rod Shock	2604-230	US $49.78
3	3 2604-216 Seal Wiper	2604-216	US $11.10
4	4 2604-215 Seal U-cup	2604-215	US $14.82
5	5 2604-217 Cap Shock	2604-217	US $145.76
6	6 1604-420 O-ring	1604-420	US $4.09
7	7 1603-001 O-ring	1603-001	US $4.57
8	8 2604-203 Bearing	2604-203	US $3.22
9	9 2604-227 Piston Separator	2604-227	US $73.50
10	10 0603-447 O-ring	0603-447	US $4.09
11	11 2604-213 O-ring	2604-213	US $5.44
12	12 1603-940 Screw	1603-940	US $1.09
13	13 1604-315 Ball Adjuster	1604-315	US $3.70
14	14 0603-540 Washer	0603-540	US $15.28
15	15 0603-347 Valve 1.250 x .010	0603-347	US $12.34
16	16 0603-335 Valve .800 x .010	0603-335	US $11.10
17	17 0603-338 Valve .900 x .010	0603-338	US $13.58
18	18 0603-881 Valve 1.000 x 0.012 in.	0603-881	US $6.20
19	19 0603-882 Valve 1.100 x 0.012 in.	0603-882	US $11.10
20	20 0603-350 Valve 1.300 x .010	0603-350	US $16.06
21	21 0603-890 Valve 1.300 x 0.015 in.	0603-890	US $6.20
22	22 2604-225 Piston Shock	2604-225	US $58.53
23	23 0603-292 Strap Teflon; piston	0603-292	US $33.43
24	24 2604-214 O-ring	2604-214	US $4.09
25	25 0604-810 O-ring	0604-810	US $4.09
26	26 2604-220 Body Shock	2604-220	US $181.91
27	27 0603-883 Valve Shock 1.250 x 0.012 in.	0603-883	US $6.20
28	28 0603-344 Valve 1.100 x .010	0603-344	US $11.10
29	29 0603-341 Valve 1.000 x .010	0603-341	US $5.83
30	30 0603-389 Washer Backup	0603-389	US $11.10
31	31 0603-301 Nut Lock	0603-301	US $5.83
32	32 2604-232 Sleeve Adjuster	2604-232	US $234.28
33	33 0604-809 O-ring	0604-809	US $4.09
34	34 0603-438 O-ring End cap	0603-438	US $3.72
35	35 1604-097 Pin Roll spring	1604-097	US $2.70
36	36 2604-222 End cap Shock	2604-222	US $375.11
37	37 2604-207 Plug Brass	2604-207	US $18.65
38	38 1639-245 Oil 6 qt case; gas shock	1639-245	US $121.42
	replacement
38	38 4639-366 Oil 1 qt; gas shock	4639-366	US $158.76
39	39 1603-933 Fitting Shock	1603-933	US $63.49
40	40 2604-210 Hose Shock/reservoir	2604-210	US $205.18
41	41 1603-942 Fitting Elbow	1603-942	US $77.20
	replacement
41	41 2604-943 Fitting Elbow	2604-943	US $33.43
42	42 2604-209 Hose Front arm shock/rear arm shock	2604-209	US $171.18
43	43 1603-236 O-ring	1603-236	US $9.88
44	44 1603-936 End cap Reservoir	1603-936	US $48.32
45	45 0604-992 Retainer End cap	0604-992	US $8.43
46	46 1604-436 O-ring	1604-436	US $4.09
47	47 0603-673 Piston Reservoir	0603-673	US $89.69
48	48 1603-235 Strap Teflon; piston	1603-235	US $18.54
49	49 1604-316 Screw W/o-ring; relief inc. 50 ;	1604-316	US $4.57
50	50 1604-425 O-ring	1604-425	US $4.09
51	51 1603-935 Body Reservoir	1603-935	US $140.77
52	52 0703-341 Valve Assembly; pressure inc. 53-54 ;	0703-341	US $57.28
54	54 1604-318 O-ring Endcap fitting	1604-318	US $11.10
55	55 0624-097 Screw Valve	0624-097	US $0.74
56	56 1603-932 Decal Shock	1603-932	US $19.78

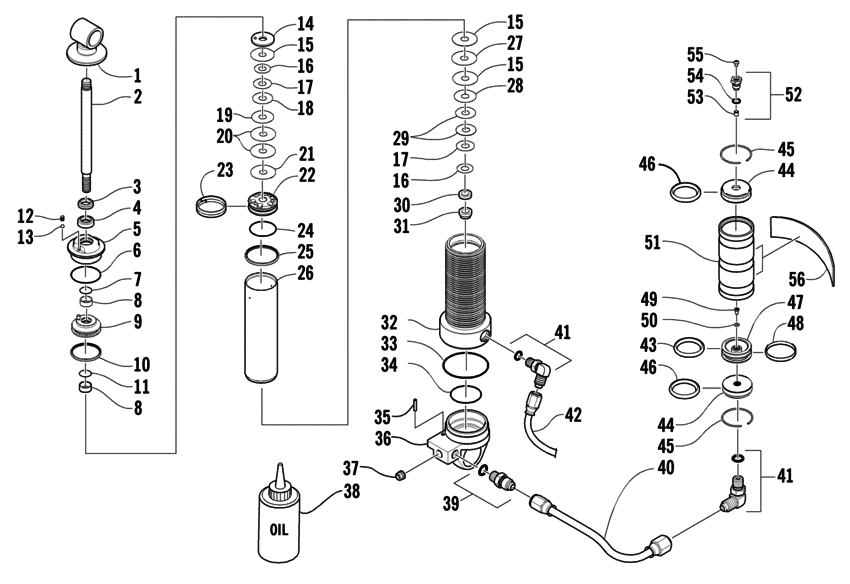

Rear Suspension Front Arm Shock Absorber Diagram Arctic Cat ZR-series ZR440 Sno Pro Green General 10988651-697705

Rear Suspension Front Arm Shock Absorber Diagram Arctic Cat ZR-series ZR440 Sno Pro Green General 10988651-697705
