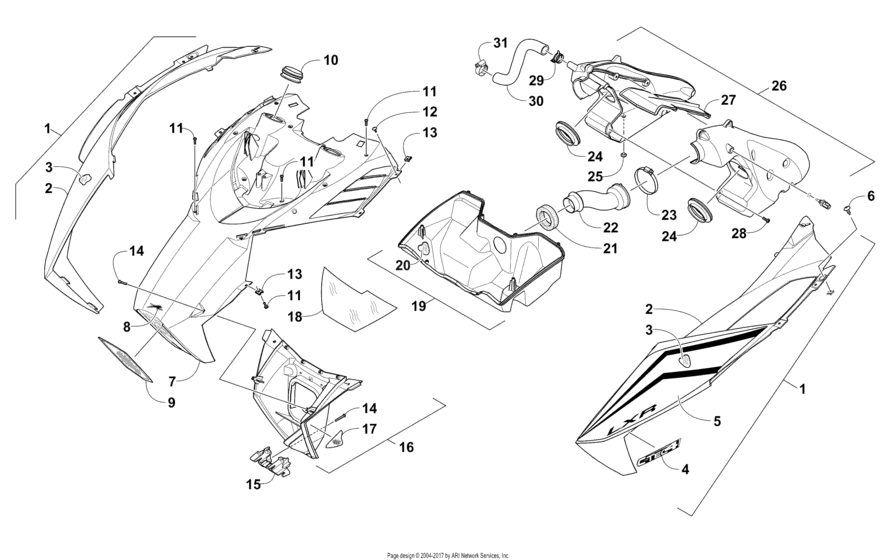

Hood And Air Intake Assembly (103096) Diagram Arctic Cat ZR-series ZR5000 LXR
- Model code
- S2016ZRNLXUSO
- Engine Capacity
- 1056
- Year
- 2016
- Commercial Name
- ZR5000 LXR
- Sales region
- General
- Colour
- Orange
- Stroke (2-stroke or 4-stroke)
- 4-stroke
- Model
- ZR5000 LXR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4718-708 HOOD,W/DECALS-RH-WHT(5/9 LXR GRN)Right - Green | (inc. 2-3, one No. 4, and one No. 5) |
4718-708 |
US $137.68 |
||
|
1
|
1
4718-716 HOOD,W/DECALS-RH-WHT(5/9 LXR ORN)Right - Orange | (inc. 2-3, one No. 4, and one No. 5) |
4718-716 |
US $297.74 |
||
|
1
|
1
4718-709 HOOD,W/DECALS-LH-WHT(5/9 LXR GRN)Left - Green | (inc. 2-3, one No. 4, and one No. 5) |
4718-709 |
US $157.51 |
||
|
1
|
1
4718-717 HOOD,W/DECALS-LH-WHT(5/9 LXR ORN)Left - Orange | (inc. 2-3, one No. 4, and one No. 5) |
4718-717 |
US $297.74 |
||
|
2
|
2
3718-620 Hood,w/foil-4 strk rh-whtRight - White | (inc. 3) |
3718-620 |
US $146 |
||
|
2
|
2
3718-621 Hood,w/foil-lh-whtLeft - White | (inc. 3) |
3718-621 |
US $166.44 |
||
|
3
|
3
6606-420 Foil,hood-rhRight |
6606-420 |
US $3.09 |
||
|
3
|
3
6606-415 Foil,protective-plenum-lhLeft |
6606-415 |
US $4.50 |
||
|
4
|
4
0621-993 Decal,hood-"ctec4"in.C-TEC4in. |
0621-993 |
US $4.09 |
||
|
5
|
5
2621-584 DECAL,HOOD-GRN RH-"LXR"Right - Green |
2621-584 |
US $28.06 |
||
|
5
|
5
2621-616 DECAL,HOOD-ORN RH-"LXR"Right - Orange |
2621-616 |
US $35.43 |
||
|
5
|
5
2621-585 DECAL,HOOD-GRN LH-"LXR"Left - Green |
2621-585 |
US $32.26 |
||
|
5
|
5
2621-617 DECAL,HOOD-ORN LH-"LXR"Left - Orange |
2621-617 |
US $35.43 |
||
|
6
|
6
0623-784
Screw
Left - Orange |
0623-784 |
— | ||
| replacement | |||||
|
6
|
6
2623-163 Screw, Self-TappingLeft - Orange |
2623-163 |
US $9.05 |
||
|
7
|
7
6606-383 Plenum,air intake cover-upper-n/aUpper |
6606-383 |
US $184.82 |
||
|
8
|
8
4411-479 EMBLEM,AIRCATUpper |
4411-479 |
US $9.90 |
||
|
9
|
9
0608-696 Screen,plenumUpper |
0608-696 |
US $37.01 |
||
|
10
|
10
6606-386 Seal,upper plenumUpper |
6606-386 |
US $3.31 |
||
|
11
|
11
1623-933 Screw,plastite-txspnh 10-14x3/4 z&bUpper |
1623-933 |
US $2.58 |
||
|
12
|
12
0623-797 ScrewSelf-tapping Upper |
0623-797 |
US $8.32 |
||
| replacement | |||||
|
12
|
12
2623-164 Screw, Self-TappingUpper |
2623-164 |
US $7.60 |
||
|
13
|
13
1623-939 Nut,speed-#10 b "u" typeUpper |
1623-939 |
US $3.24 |
||
|
14
|
14
1623-929 Screw,plastite-txspnh 10-14x1 1/2 z&bUpper |
1623-929 |
US $7.24 |
||
|
15
|
15
6606-822 RETAINER,LOWER PLENUMUpper |
6606-822 |
US $12.71 |
||
|
16
|
16
5706-992 PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(7)Lower Front | (inc. 17) |
5706-992 |
US $70.67 |
||
|
17
|
17
0621-989 Decal,reflector-amberAmber |
0621-989 |
US $13.99 |
||
|
18
|
18
6606-421 Foil,intake plenum-upperAmber |
6606-421 |
US $2.66 |
||
|
19
|
19
5706-372 Plenum,intake-lwr-rear-assyLower Rear | (inc. 21) |
5706-372 |
US $88.69 |
||
|
20
|
20
6606-419 Foil,intake plenum-lower-naLower Rear | (inc. 21) |
6606-419 |
US $16.80 |
||
|
21
|
21
0617-644 Seal,foam-air silencerLower Rear | (inc. 21) |
0617-644 |
US $3.09 |
||
|
22
|
22
2670-164 Boot,silencer air intake (z1 na)Lower Rear | (inc. 21) |
2670-164 |
US $92.76 |
||
|
23
|
23
0423-018 ClampLower Rear | (inc. 21) |
0423-018 |
US $8.43 |
||
|
24
|
24
2670-161 Boot,throttle body (z1 na)Lower Rear | (inc. 21) |
2670-161 |
US $21.03 |
||
|
25
|
25
0406-877 BumperFront; seat Lower Rear | (inc. 21) |
0406-877 |
US $4.85 |
||
|
26
|
26
2670-160 Silencer,air assy-4 strk (na)Assembly | (inc. 28-29) |
2670-160 |
US $110.87 |
||
|
27
|
27
2670-183 Baffle,air silencerAssembly | (inc. 28-29) |
2670-183 |
US $21.03 |
||
|
28
|
28
1623-251 ScrewSelf-tapping Assembly | (inc. 28-29) |
1623-251 |
US $4.30 |
||
|
29
|
29
1623-229 ClampHose Assembly | (inc. 28-29) |
1623-229 |
US $5.14 |
||
|
30
|
30
0610-852 Hose,breather-vent-n/aAssembly | (inc. 28-29) |
0610-852 |
US $21.03 |
||
|
31
|
31
1623-291 ClampHose Assembly | (inc. 28-29) |
1623-291 |
US $1.86 |
||
