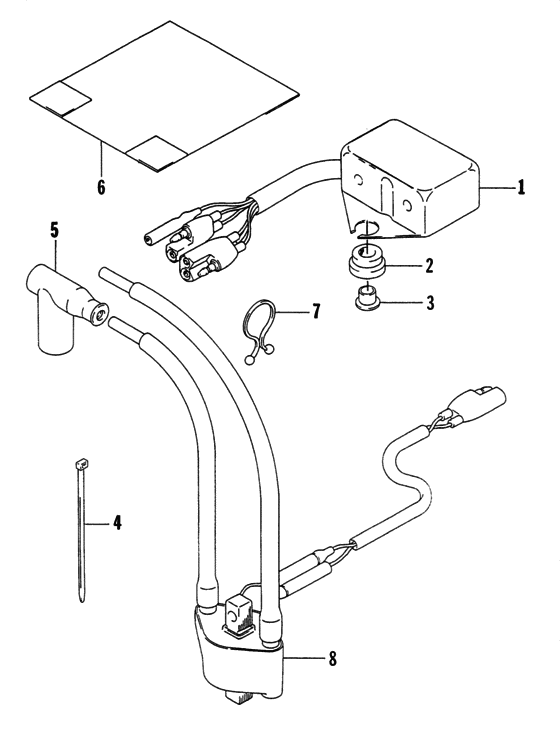

Electrical Diagram Arctic Cat ZR-series ZR580
- Model code
- 96ZRD-1996
- Engine Capacity
- 580
- Year
- 1996
- Commercial Name
- ZR580
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR580
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3004-099 Cdi unitInc. 2, 3 |
3004-099 |
US $702.65 |
||
|
2
|
2
3003-806 Screw |
3003-806 |
US $8.66 |
||
|
3
|
3
3003-808 SpacerCdi unit |
3003-808 |
US $7.36 |
||
|
4
|
4
3003-787 Clamp |
3003-787 |
US $6.26 |
||
|
5
|
5
3003-737 Cap ass'y |
3003-737 |
US $22.94 |
||
| replacement | |||||
|
5
|
5
3006-367 CapSpark plug |
3006-367 |
US $27.22 |
||
|
6
|
6
3003-474 CoverConnector |
3003-474 |
US $18.54 |
||
|
7
|
7
3004-685 Clip |
3004-685 |
US $2.61 |
||
|
8
|
8
3003-977 CoilIgnition |
3003-977 |
US $280.35 |
||
| replacement | |||||
|
8
|
8
3005-185 CoilIgnition |
3005-185 |
US $280.35 |
||
