	Description	OEM Part #	Price
	0670-911 Assembly	0670-911	US $997.11
1	1 6506-155 Carburetor assembly Inc. 3-7, 15, and 16; left	6506-155	US $558.18
2	2 6506-154 Carburetor assembly Right	6506-154	US $372.63
3	3 6506-058 Bracket	6506-058	US $51.80
4	4 6506-061 Screw Throttle stop	6506-061	US $21.03
5	5 6506-062 Spring Throttle stop	6506-062	US $5.61
6	6 6506-063 Screw	6506-063	US $1.41
7	7 6506-064 Screw	6506-064	US $1.41
8	8 6506-048 Spacer	6506-048	US $3.59
9	9 6506-049 Sleeve Spring	6506-049	US $8.62
10	10 6506-059 Packing	6506-059	US $14.91
11	11 6506-131 Clip	6506-131	US $14.91
12	12 6506-133 Hose	6506-133	US $15.39
13	13 6506-140 Nipple assembly	6506-140	US $104.86
14	14 6506-141 Hose	6506-141	US $21.03
15	15 6506-134 Screw	6506-134	US $3.09
16	16 6506-056 Spring	6506-056	US $3.59
17	17 6506-044 Spacer	6506-044	US $35.43
	replacement
17	17 6506-152 Spacer	6506-152	US $35.43
18	18 6506-046 Screw	6506-046	US $3.52
19	19 6506-136 Assembly Throttle lever shaft	6506-136	US $225.16
20	20 6506-042 Screw	6506-042	US $3.52
21	21 6506-041 Ring Lever	6506-041	US $33.69
22	22 6506-065 Bolt	6506-065	US $18.20

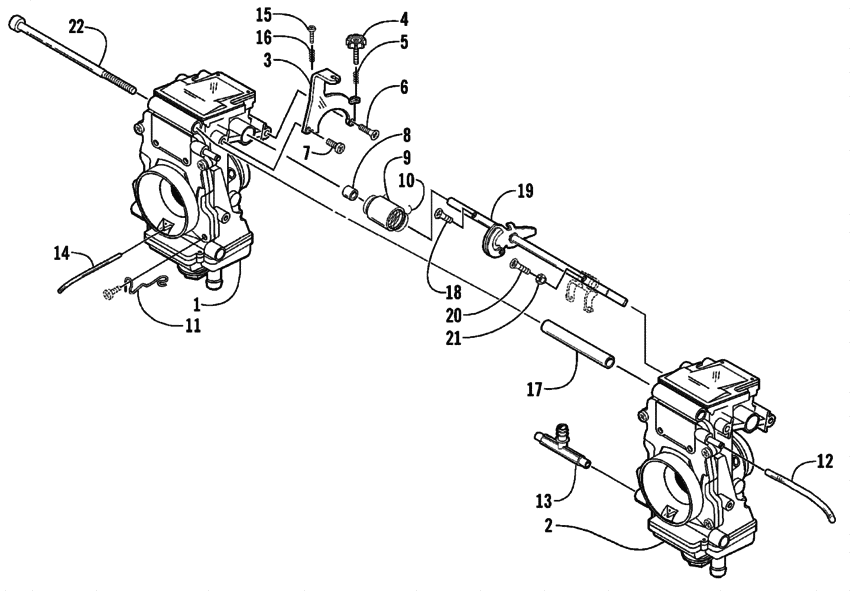

Carburetor (TM38; EXTERNAL PARTS) Diagram Arctic Cat ZR-series ZR600 General 10956746-696987
