Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
	0704-512 Shock absorber Rear arm	0704-512	US $560.83
1	1 1604-544 Body Shock	1604-544	US $128.33
2	2 0603-963 End cap Inc. 3; shock	0603-963	US $76.87
	replacement
2	2 1603-959 End cap Shock-clicker	1603-959	US $65.71
3	3 1604-280 O-ring End cap	1604-280	US $3.09
4	4 0704-483 Eyelet	0704-483	US $52.04
	replacement
4	4 1603-503 Eyelet Shock	1603-503	US $24.85
5	5 0704-382 Cap Inc. one no.5; shock	0704-382	US $44.79
6	6 1604-271 O-ring	1604-271	US $2.28
7	7 1604-543 Rod Shock	1604-543	US $53.56
	replacement
7	7 2604-421 Rod Shock	2604-421	US $53.56
8	8 1604-511 Spacer Shaft	1604-511	US $21.03
9	9 1603-273 Piston 0.041 orifice	1603-273	US $55.78
10	10 1604-274 Strap Teflon; piston	1604-274	US $22.94
11	11 1604-272 Washer	1604-272	US $1.41
12	12 1603-065 Valve 0.900 x 0.010 in.	1603-065	US $3.81
13	13 1603-075 Valve 1.000 x 0.010 in.	1603-075	US $4.94
	replacement
13	13 2603-075 Valve 1.000 x 0.010 in.	2603-075	US $4.94
14	14 1603-095 Valve 1.100 x 0.010 in.	1603-095	US $4.94
	replacement
14	14 2603-095 Valve 1.100 x 0.010 in.	2603-095	US $4.94
15	15 1603-125 Valve 1.250 x 0.010 in	1603-125	US $5.61
	replacement
15	15 2603-125 Valve Shock 1.250 x 0.010 in.	2603-125	US $5.61
16	16 1603-132 Valve 1.300 x 0.006 in.	1603-132	US $3.85
17	17 1603-055 Valve 0.800 x.0.010 in	1603-055	US $4.09
18	18 1604-273 Washer Backup	1604-273	US $0.96
19	19 0623-696 Nut Lock	0623-696	US $9.90
20	20 1603-317 Hose Reservoir/shock	1603-317	US $79.35
21	21 0603-964 Fitting Elbow	0603-964	US $17.30
22	22 0703-541 End cap Inc. one no. 26 and 27-29; reservoir body	0703-541	US $178.17
	replacement
22	22 1604-728 End cap Reservoir	1604-728	US $37.15
23	23 0603-968 O-ring	0603-968	US $2.79
24	24 0603-975 O-ring	0603-975	US $0.54
25	25 0603-984 Retainer	0603-984	US $5.83
26	26 1603-315 Body Reservoir	1603-315	US $68.17
27	27 0603-986 Piston Reservoir	0603-986	US $73.50
28	28 0603-987 O-ring	0603-987	US $8.38
29	29 0603-988 Strap Teflon; piston	0603-988	US $35.43
30	30 0623-697 Screw Inc. 27; relief w/o-ring	0623-697	US $0.26
31	31 1604-279 O-ring	1604-279	US $2.16
32	32 0703-540 End cap Inc. 36-43; assembly; reservoir	0703-540	US $52.04
33	33 0704-383 Valve	0704-383	—
35	35 1604-284 O-ring Valve	1604-284	US $1.46
36	36 0624-433 Screw Machine	0624-433	US $1.06
37	37 0603-985 Retainer End cap	0603-985	US $1.46
38	38 1603-316 Clamp Reservoir	1603-316	US $5.70
39	39 3611-691 Decal Shock; "act"	3611-691	US $32.34
40	40 3611-007 Decal Warning	3611-007	US $12.60
41	41 1604-397 Sleeve Shock eyelet	1604-397	US $7.40
42	42 1604-262 Bushing Shock	1604-262	US $5.71
43	43 1639-245 Oil 6 qt case; gas shock	1639-245	US $121.42
	replacement
43	43 4639-366 Oil 1 qt; gas shock	4639-366	US $158.76
44	44 0703-542 Oil relief Assembly; 2-port	0703-542	US $88.41
45	45 1603-406 Pin Indicator knob	1603-406	US $3.18
46	46 0603-970 O-ring	0603-970	US $1.92

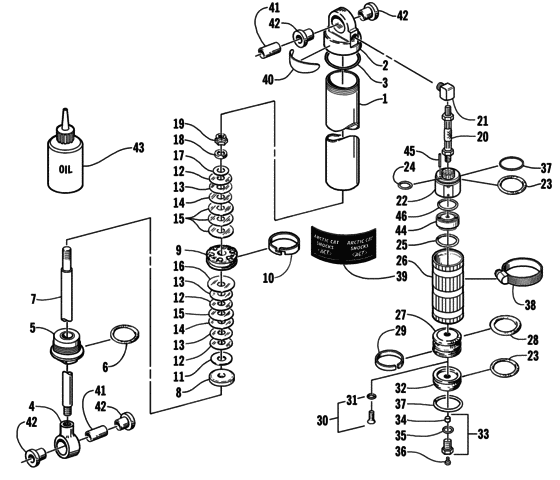

Rear Suspension Rear Arm Shock Absorber Diagram Arctic Cat ZR-series ZR600 Green General 10981929-697567

Rear Suspension Rear Arm Shock Absorber Diagram Arctic Cat ZR-series ZR600 Green General 10981929-697567
