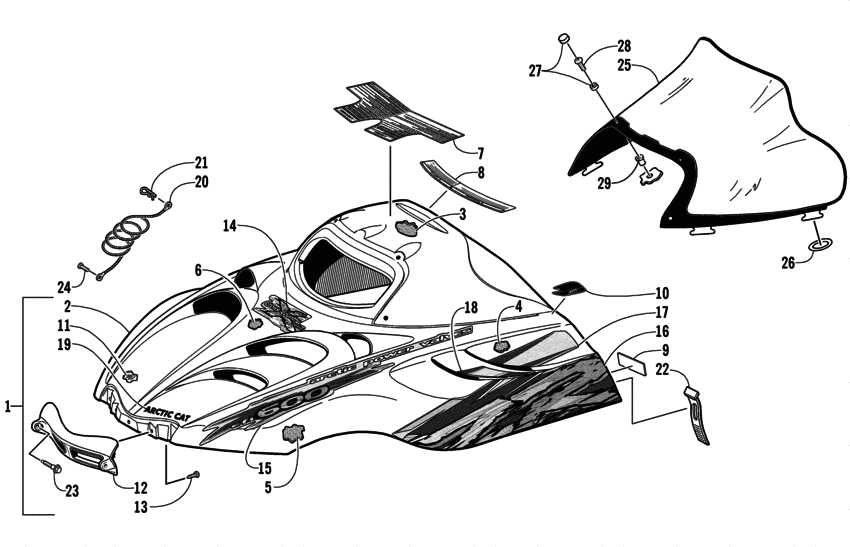

Hood And Windshield Assembly (CC International) Diagram Arctic Cat ZR-series ZR600 EFI CC
- Model code
- S2002ZRDELUSB
- Engine Capacity
- 599
- Year
- 2002
- Commercial Name
- ZR600 EFI CC
- Sales region
- General
- Colour
- Black
- Power
- 110 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR600 EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1718-150 Hood w/decalsinc. 2-19 ; |
1718-150 |
US $1,279.13 |
||
|
2
|
2
1718-032 Hood w/o decalsinc. 3-13 ; |
1718-032 |
US $1,182 |
||
|
3
|
3
0617-325
Foam
|
0617-325 |
— | ||
|
3
|
3
0617-324
Foam
|
0617-324 |
— | ||
|
4
|
4
0617-322 FoamRight - upper; hood |
0617-322 |
US $36.09 |
||
|
4
|
4
0617-323 FoamLeft - upper; hood |
0617-323 |
US $49.82 |
||
|
5
|
5
0617-326 FoamRight - rear; hood |
0617-326 |
US $14.89 |
||
|
5
|
5
0617-327 FoamLeft - rear; hood |
0617-327 |
US $29.45 |
||
|
6
|
6
0617-328 FoamCenter; hood |
0617-328 |
US $26.64 |
||
|
7
|
7
3611-485 DecalHood; warning |
3611-485 |
US $29.86 |
||
|
8
|
8
3611-970 DecalEngine/battery/fuel; caution |
3611-970 |
US $38.39 |
||
|
9
|
9
3611-509 DecalSeating capacity; warning |
3611-509 |
US $66.93 |
||
|
10
|
10
4611-334 DecalHood - right; "act" |
4611-334 |
US $7.36 |
||
|
10
|
10
4611-335 DecalHood - left; "act" |
4611-335 |
US $7.36 |
||
|
11
|
11
1606-938 FoilRight; hood |
1606-938 |
US $55.91 |
||
|
11
|
11
1606-939 FoilLeft; hood |
1606-939 |
US $69.75 |
||
|
12
|
12
1606-720 HingeBlack; hood |
1606-720 |
from US $81.60 |
||
|
13
|
13
0623-797 ScrewSelf-tapping |
0623-797 |
US $8.32 |
||
| replacement | |||||
|
13
|
13
2623-164 Screw, Self-Tapping |
2623-164 |
US $7.60 |
||
|
14
|
14
4611-466 DecalCrest; hood |
4611-466 |
US $34.85 |
||
|
15
|
15
4611-458 DecalHood - right; "600" |
4611-458 |
US $28.58 |
||
|
15
|
15
4611-459 DecalHood - left; "600" |
4611-459 |
US $53.56 |
||
|
16
|
16
4611-452 DecalLower right; hood |
4611-452 |
US $14.82 |
||
|
16
|
16
4611-453 DecalLower left; hood |
4611-453 |
US $314.63 |
||
|
17
|
17
4611-462 DecalVent - rear - right; hood |
4611-462 |
US $60.74 |
||
|
17
|
17
4611-463 DecalVent - rear - left; hood |
4611-463 |
US $32.19 |
||
|
18
|
18
4611-464 DecalVent - front - right; hood |
4611-464 |
US $92.19 |
||
|
18
|
18
4611-465 DecalVent - front - left; hood |
4611-465 |
US $92.19 |
||
|
19
|
19
3611-187 Decal"arctic cat"; hood |
3611-187 |
US $29.25 |
||
|
20
|
20
2606-247 CableHood |
2606-247 |
US $13.99 |
||
| replacement | |||||
|
20
|
20
1606-158 CableHood |
1606-158 |
US $13.99 |
||
|
21
|
21
0623-805 ClipHairpin |
0623-805 |
US $1.20 |
||
|
22
|
22
1606-067 StrapHolddown |
1606-067 |
US $57.15 |
||
|
23
|
23
0623-690 ScrewHood hinge |
0623-690 |
US $108.88 |
||
|
24
|
24
0623-057
Screw
|
0623-057 |
— | ||
|
25
|
25
2606-470 Windshield |
2606-470 |
US $157.60 |
||
|
26
|
26
0616-032 O-ringWindshield |
0616-032 |
US $14.40 |
||
|
27
|
27
0124-054 Snap cap w/washer |
0124-054 |
US $16.50 |
||
|
28
|
28
0623-902 ScrewMachine |
0623-902 |
US $6.70 |
||
|
29
|
29
0623-845 NutExpansion |
0623-845 |
US $16.65 |
||
