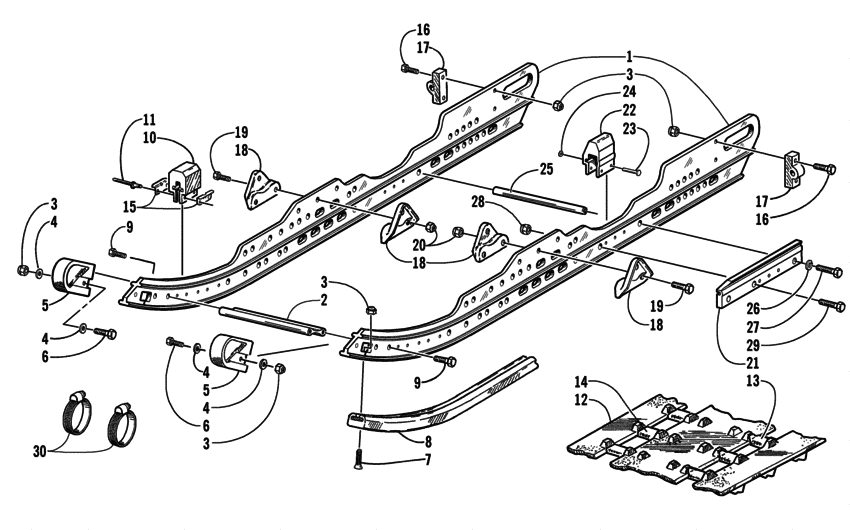

Slide Rail And Track Assembly (LE-C) Diagram Arctic Cat ZR-series ZR600 EFI LE
- Model code
- S2000ZRDELUSG-2000
- Engine Capacity
- 599
- Year
- 2000
- Commercial Name
- ZR600 EFI LE
- Sales region
- General
- Colour
- Green
- Power
- 110 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR600 EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
7994-573
Complete skid frame assembly
|
7994-573 |
— | ||
|
1
|
1
1604-598 RailFormed |
1604-598 |
US $303.94 |
||
| replacement | |||||
|
1
|
1
2604-050 RailFormed |
2604-050 |
US $303.94 |
||
|
2
|
2
1604-109 RailSupport |
1604-109 |
US $103.40 |
||
|
3
|
3
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
4
|
4
8050-217 Washer |
8050-217 |
US $3 |
||
|
5
|
5
1604-137 NosepieceSlide rail |
1604-137 |
US $8.82 |
||
|
6
|
6
8002-044 ScrewCap |
8002-044 |
US $28.90 |
||
|
7
|
7
0123-869 ScrewMachine |
0123-869 |
US $8.70 |
||
|
8
|
8
0604-640 StripBlack; wear |
0604-640 |
US $30.62 |
||
| replacement | |||||
|
8
|
8
2604-257 WearstripSlide rail |
2604-257 |
US $54.83 |
||
|
9
|
9
8012-134 ScrewCap |
8012-134 |
US $4.80 |
||
|
10
|
10
0604-918 PadShock |
0604-918 |
US $17.94 |
||
|
11
|
11
8060-633 Rivet |
8060-633 |
from US $1.60 |
||
|
12
|
12
1602-005 Track assemblyInc. 13-14 |
1602-005 |
US $1,026.44 |
||
| replacement | |||||
|
12
|
12
1602-756 Track assembly |
1602-756 |
US $1,026.44 |
||
|
13
|
13
0602-541 ClipWear |
0602-541 |
US $16.55 |
||
| replacements | |||||
|
13
|
13
1602-269 ClipWear |
1602-269 |
US $49.60 |
||
|
13
|
13
2602-384 Clip,wear |
2602-384 |
US $33.10 |
||
|
14
|
14
0602-488 ClipGuide |
0602-488 |
US $19.70 |
||
| replacement | |||||
|
14
|
14
2602-383 Clip, guide |
2602-383 |
US $39.40 |
||
|
15
|
15
0604-967 BracketRetaining |
0604-967 |
US $13.24 |
||
|
16
|
16
8002-042 ScrewCap |
8002-042 |
US $5.90 |
||
|
17
|
17
0704-352 AdjusterTrack |
0704-352 |
US $22.94 |
||
|
18
|
18
0604-913 BracketFront arm; mounting |
0604-913 |
US $30.86 |
||
| replacement | |||||
|
18
|
18
2604-159 BracketFront arm; mounting |
2604-159 |
US $30.86 |
||
|
19
|
19
8002-131 ScrewCap |
8002-131 |
US $15 |
||
|
20
|
20
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
21
|
21
1604-488 BraceRight; rail |
1604-488 |
US $61.36 |
||
|
21
|
21
1604-489 BraceLeft; rail |
1604-489 |
US $61.36 |
||
|
22
|
22
1604-487 PadShock |
1604-487 |
US $12.41 |
||
|
23
|
23
0623-772 Rivet |
0623-772 |
US $6.70 |
||
|
24
|
24
0623-773 NutPush |
0623-773 |
US $5.10 |
||
|
25
|
25
0604-930 AxleInner |
0604-930 |
US $33.43 |
||
|
26
|
26
8051-277 WasherLock |
8051-277 |
US $2.18 |
||
|
27
|
27
8002-225 ScrewCap |
8002-225 |
US $6.65 |
||
|
28
|
28
8040-486 NutLock |
8040-486 |
from US $1.60 |
||
|
29
|
29
8002-223 ScrewCap |
8002-223 |
US $54.70 |
||
|
30
|
30
0214-017 Clamp |
0214-017 |
US $5.25 |
||
