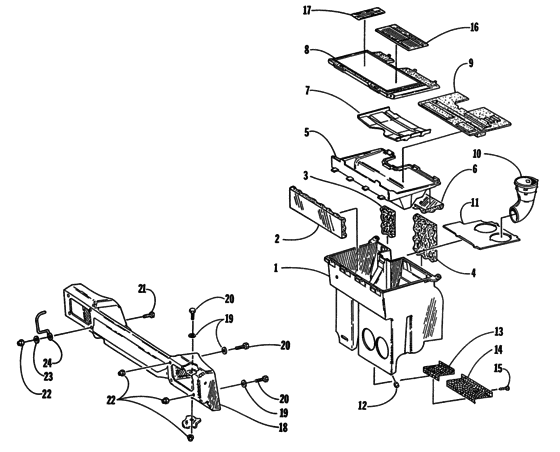

Air Silencer Assembly Diagram Arctic Cat ZR-series ZR600
- Model code
- 98ZRHA-1998
- Engine Capacity
- 599
- Year
- 1998
- Commercial Name
- ZR600
- Sales region
- General
- Power
- 110 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0770-231 SilencerAssembly; air |
0770-231 |
US $146.34 |
||
| replacement | |||||
|
1
|
1
0770-347 SilencerAssembly; air |
0770-347 |
US $146.34 |
||
|
2
|
2
0617-254
Foam
|
0617-254 |
— | ||
|
3
|
3
0617-252
Foam
|
0617-252 |
— | ||
|
4
|
4
0617-253
Foam
|
0617-253 |
— | ||
|
5
|
5
0616-972 Tool box |
0616-972 |
US $29.88 |
||
|
6
|
6
0617-251
Foam
|
0617-251 |
— | ||
|
7
|
7
0670-601 TrayTool box; manual |
0670-601 |
US $30.75 |
||
|
8
|
8
0616-973 CoverTool box |
0616-973 |
US $22.39 |
||
|
9
|
9
0617-241 FoamTool box |
0617-241 |
US $49.82 |
||
|
10
|
10
0670-617 FunnelAir silencer |
0670-617 |
US $54.54 |
||
|
11
|
11
0670-709 BaffleAir silencer |
0670-709 |
US $4.96 |
||
|
12
|
12
1606-038 BumperAir silencer |
1606-038 |
US $1.75 |
||
|
13
|
13
0670-661 ScreenAir silencer |
0670-661 |
US $48.86 |
||
|
14
|
14
0670-646 ScreenAir silencer |
0670-646 |
US $33.54 |
||
|
15
|
15
0623-165 ClipScreen retaining |
0623-165 |
US $10.65 |
||
|
16
|
16
2611-736 DecalJet chart |
2611-736 |
US $11.16 |
||
|
17
|
17
2611-765 DecalToolbox |
2611-765 |
US $7.42 |
||
|
18
|
18
0670-644 SilencerPlenum; air |
0670-644 |
US $173.18 |
||
|
19
|
19
8050-222 Washer |
8050-222 |
US $17.60 |
||
|
20
|
20
8002-040 ScrewCap |
8002-040 |
US $10.41 |
||
|
21
|
21
8002-042 ScrewCap |
8002-042 |
US $5.90 |
||
|
22
|
22
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
23
|
23
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
24
|
24
0645-235 BracketEfi; harness |
0645-235 |
US $8.66 |
||
