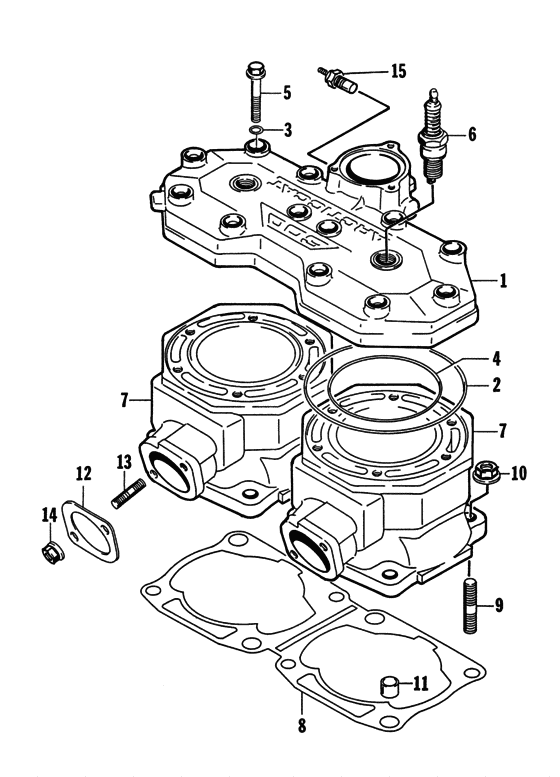

Cylinder And Head Assembly Diagram Arctic Cat ZR-series ZR600
- Model code
- 98ZRHA-1998
- Engine Capacity
- 599
- Year
- 1998
- Commercial Name
- ZR600
- Sales region
- General
- Power
- 110 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3005-105 HeadCylinder |
3005-105 |
US $487.59 |
||
|
2
|
2
3003-795 Grommet |
3003-795 |
US $21.03 |
||
|
3
|
3
3003-227 O-ringHeadbolt |
3003-227 |
US $46.10 |
||
|
4
|
4
3004-080 O-ringInner; head |
3004-080 |
US $29.32 |
||
|
5
|
5
3004-459 BoltHead |
3004-459 |
US $17.75 |
||
| replacement | |||||
|
5
|
5
3007-460 Bolt |
3007-460 |
US $3.55 |
||
|
6
|
6
0217-709 Spark Plug (Br9eya)Br9eya; spark |
0217-709 |
US $25.28 |
||
|
7
|
7
3005-106
Cylinder
|
3005-106 |
— | ||
| replacement | |||||
|
7
|
7
3005-431
Cylinder
|
3005-431 |
— | ||
|
8
|
8
3005-107 GasketCylinder |
3005-107 |
US $48.67 |
||
| replacement | |||||
|
8
|
8
3005-654 GasketCylinder |
3005-654 |
US $48.67 |
||
|
9
|
9
3004-440 BoltCylinder; stud |
3004-440 |
US $63 |
||
| replacement | |||||
|
9
|
9
3005-207 Stud boltCylinder |
3005-207 |
US $135.50 |
||
|
10
|
10
3004-491 Nut |
3004-491 |
US $14.70 |
||
| replacement | |||||
|
10
|
10
3007-391 Nut |
3007-391 |
US $19.50 |
||
|
11
|
11
3004-975 Pin |
3004-975 |
US $5.99 |
||
|
12
|
12
3003-503 GasketExhaust |
3003-503 |
US $30.66 |
||
|
13
|
13
3004-279
Stud
|
3004-279 |
— | ||
| replacement | |||||
|
13
|
13
3007-415 BoltStud |
3007-415 |
US $6.02 |
||
|
14
|
14
3004-326
Nut
|
3004-326 |
— | ||
| replacement | |||||
|
14
|
14
3007-390 NutCylinder head |
3007-390 |
US $19.50 |
||
|
15
|
15
0620-049 SensorHeat |
0620-049 |
US $55.78 |
||
| replacement | |||||
|
15
|
15
0720-011 SensorHeat- l/c |
0720-011 |
US $55.78 |
||
