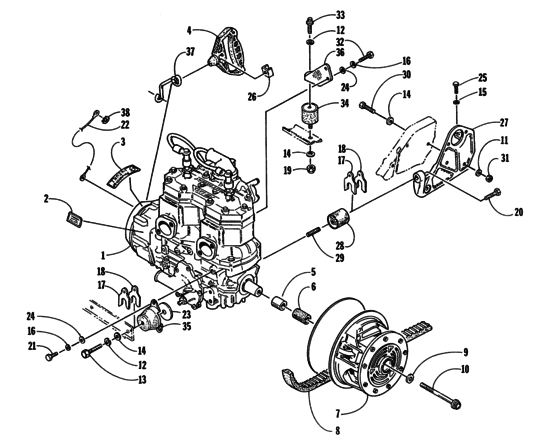

Engine And Related Parts Diagram Arctic Cat ZR-series ZR600
- Model code
- 98ZRHA-1998
- Engine Capacity
- 599
- Year
- 1998
- Commercial Name
- ZR600
- Sales region
- General
- Power
- 110 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0662-191
Engine
|
0662-191 |
— | ||
| replacement | |||||
|
1
|
1
0762-081
New Genuine Part
|
0762-081 |
— | ||
|
2
|
2
2611-732 DecalEngine part number |
2611-732 |
US $5.24 |
||
|
3
|
3
1611-588
Decal
|
1611-588 |
— | ||
|
4
|
4
0636-363 Handle "d" |
0636-363 |
US $13.99 |
||
|
5
|
5
0646-107 SpacerAluminum |
0646-107 |
US $23.61 |
||
|
6
|
6
0646-106 SpacerUrethane |
0646-106 |
US $4.70 |
||
|
7
|
7
0725-221 Assembly |
0725-221 |
US $824.36 |
||
| replacement | |||||
|
7
|
7
0746-839 KIT,DRIVE CLUTCH-UNCALIBRATED-8.25 30MM/D |
0746-839 |
US $781.64 |
||
|
8
|
8
0627-020 BeltDrive |
0627-020 |
US $136.42 |
||
|
9
|
9
0623-210 WasherLock |
0623-210 |
US $0.88 |
||
|
10
|
10
0623-206 ScrewCap |
0623-206 |
US $19.09 |
||
|
11
|
11
8050-272 Washer |
8050-272 |
US $2.15 |
||
|
12
|
12
8051-277 WasherLock |
8051-277 |
US $65.40 |
||
|
13
|
13
8002-229 ScrewCap |
8002-229 |
US $10.65 |
||
|
14
|
14
8050-282 Washer |
8050-282 |
from US $1.60 |
||
|
15
|
15
8051-217
Washer
|
8051-217 |
— | ||
|
16
|
16
8051-242 WasherLock |
8051-242 |
US $11.05 |
||
|
17
|
17
0608-055 Shim1/32 in.; motor mt |
0608-055 |
US $0.76 |
||
|
18
|
18
0608-056 Shim1/16 in.; motor mt |
0608-056 |
US $1.81 |
||
|
19
|
19
8041-486 NutLock |
8041-486 |
US $5.80 |
||
|
20
|
20
8002-405 ScrewCap |
8002-405 |
US $1.52 |
||
|
21
|
21
8012-130 ScrewLock; cap |
8012-130 |
US $13.70 |
||
|
22
|
22
0686-099 HarnessEngine ground |
0686-099 |
US $9.77 |
||
|
23
|
23
0623-605 Washer |
0623-605 |
US $3.85 |
||
|
24
|
24
8050-247 Washer |
8050-247 |
US $8.80 |
||
|
25
|
25
8002-040 ScrewCap |
8002-040 |
US $10.41 |
||
|
26
|
26
0606-885 CapRecoil handle |
0606-885 |
US $1.26 |
||
|
27
|
27
0708-041 BracketEngine mount/bearing support |
0708-041 |
US $49.82 |
||
|
28
|
28
0608-054 MountLh rear; motor |
0608-054 |
US $50.82 |
||
|
29
|
29
0623-281 StudMotor mt |
0623-281 |
US $11.14 |
||
|
30
|
30
0623-628 ScrewCap |
0623-628 |
US $2 |
||
|
31
|
31
0623-026 NutFlex lock |
0623-026 |
US $60.90 |
||
|
32
|
32
8012-131 ScrewCap-lock |
8012-131 |
US $1.48 |
||
|
33
|
33
0623-382 ScrewCap |
0623-382 |
US $14.70 |
||
|
34
|
34
0608-115 MountMotor |
0608-115 |
US $66.82 |
||
| replacement | |||||
|
34
|
34
0608-267 MotorMount |
0608-267 |
US $66.82 |
||
|
35
|
35
0608-145 MotorMount |
0608-145 |
US $100.90 |
||
|
36
|
36
0708-035 MotorMount |
0708-035 |
US $54.80 |
||
|
37
|
37
1606-262 BracketRecoil guide |
1606-262 |
US $44.79 |
||
|
38
|
38
8053-212 WasherLock |
8053-212 |
US $1.45 |
||
