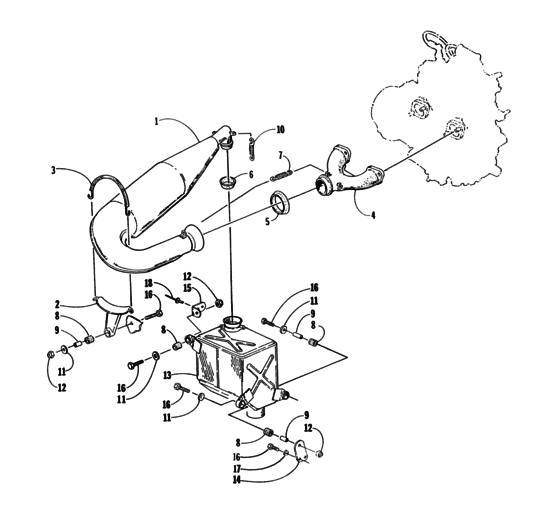

Exhaust assembly Diagram Arctic Cat ZR-series ZR600
- Model code
- 98ZRHA-1998
- Engine Capacity
- 599
- Year
- 1998
- Commercial Name
- ZR600
- Sales region
- General
- Power
- 110 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0712-233 ChamberExpansion |
0712-233 |
US $338.98 |
||
|
2
|
2
0712-228 BracketSupport |
0712-228 |
US $16.13 |
||
| replacement | |||||
|
2
|
2
1712-098 BrktMtg-expansion chameber-ptd blk |
1712-098 |
US $16.13 |
||
|
3
|
3
0612-027 Spring |
0612-027 |
US $25.51 |
||
|
4
|
4
0712-214 ManifoldExhaust |
0712-214 |
US $135.79 |
||
|
5
|
5
0612-692 GasketExhaust |
0612-692 |
US $35.43 |
||
|
6
|
6
0612-693 GasketTailpipe; exhaust |
0612-693 |
US $26.77 |
||
|
7
|
7
0612-668 SpringExhaust |
0612-668 |
US $36.30 |
||
|
8
|
8
0612-107 Bushing |
0612-107 |
US $33.30 |
||
|
9
|
9
0612-108 Spacer |
0612-108 |
US $44.67 |
||
|
10
|
10
0612-471 Spring |
0612-471 |
US $40.26 |
||
|
11
|
11
0623-184 Washer |
0623-184 |
US $7.50 |
||
|
12
|
12
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
13
|
13
0712-225 Resonator |
0712-225 |
US $316.55 |
||
|
14
|
14
0612-784 BracketResonator; mounting |
0612-784 |
US $44.60 |
||
| replacement | |||||
|
14
|
14
0712-883 BracketResonator; mounting |
0712-883 |
US $44.60 |
||
|
15
|
15
0612-790 BracketResonator; mounting |
0612-790 |
US $5.75 |
||
|
16
|
16
8002-044 ScrewCap |
8002-044 |
US $28.90 |
||
|
17
|
17
8051-217
Washer
|
8051-217 |
— | ||
|
18
|
18
8061-708 Rivet |
8061-708 |
US $13.40 |
||
