Component List ZR-series ZR6000 Limited ES 137
Skid Plate And Side Panel Assembly (103399)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 4718-782 PANEL,SIDE-RH W/DECALS(6/8 LTD TA GRN) w/Decals - Right - Green \| (inc. 2-7, 13-15, and 17-20)	4718-782	US $329.98
1	1 4718-774 PANEL,SIDE-RH W/DECALS(6/8 LTD BLK) w/Decals - Right - Black \| (inc. 2-7, 13-15, and 17-20)	4718-774	US $280.35
2	2 3718-858 Panel,side-rh w/foam-ta grn(2 stroke) w/o Decals - Right - Green \| (inc. 3-7 and 16-20)	3718-858	US $270.17
2	2 3718-180 Panel,side-rh with foam-blk (2 stroke) Right w/Foam - Black \| (inc. 3-7 and 17-20)	3718-180	US $270.17
3	3 0617-626 Foam,upper side panel-frt-rh Upper Front - Right	0617-626	US $4.33
4	4 6606-414 Foil,protective-middle side panel-rh Upper Front - Right	6606-414	US $1.92
5	5 0617-628 Foam,upper side panel-rear-rh Upper Rear - Right	0617-628	US $36.80
6	6 0617-632 Foam,lwr side panel-frt-rh Lower Front - Right	0617-632	US $20.41
7	7 0617-634 Foam,lwr side panel-rear-rh Lower Rear - Right	0617-634	US $39.53
8	8 4718-783 PANEL,SIDE-LH W/DECALS(6/8 LTD TA GRN) w/Decals - Left - Green \| (inc. 9-20)	4718-783	US $329.98
8	8 4718-775 PANEL,SIDE-LH W/DECALS(6/8 LTD BLK) w/Decals - Left - Black \| (inc. 9-20)	4718-775	US $280.35
9	9 4718-577 PANEL,SIDE-LH W/FOAM-TA GRN w/o Decals - Left - Green \| (inc. 10-12 and 16-20)	4718-577	US $262.02
9	9 4718-553 PANEL,SIDE-LH-W/FOAM-BLK Black \| (inc. 10-12 and 16-20)	4718-553	US $270.17
10	10 0617-629 Foam,upper side panel-rear-lh Upper Rear - Left	0617-629	US $16.80
11	11 0617-635 Foam,lwr side panel-rear-lh Lower Rear - Left	0617-635	US $12.60
12	12 0617-681 Foam,lwr side panel-frt-lh Lower Front - Left	0617-681	US $5.75
13	13 2621-390 DECAL,SIDE PANEL-UPR-RH-GRN (ZR LTD) Upper - Right - Green	2621-390	US $49.08
13	13 2621-428 DECAL,SIDE PANEL-UPR-RH-BLK (ZR LTD) Upper - Right - Black	2621-428	US $44.60
13	13 2631-391 Decal, Side Panel - Upper - Left - Green Upper - Left - Green	2631-391	—
13	13 2621-429 DECAL,SIDE PANEL-UPR-LH-BLK (ZR LTD) Upper - Left - Black	2621-429	US $44.60
14	14 2621-404 DECAL,SIDE PANEL LOWER-RH-GRN (LTD) Lower Rear - Right - Green	2621-404	US $39.65
14	14 2621-438 DECAL,SIDE PANEL LOWER-RH-BLK (LTD) Lower Rear - Right - Black	2621-438	US $32.19
14	14 2621-405 DECAL,SIDE PANEL LOWER-LH-GRN (LTD) Lower Rear - Left - Green	2621-405	US $39.65
14	14 2621-439 DECAL,SIDE PANEL LOWER-LH-BLK (LTD) Lower Rear - Left - Black	2621-439	US $32.19
15	15 2621-402 DECAL,SIDE PANEL FWD-RH-GRN (LTD) Lower Front - Right - Green	2621-402	US $19.65
15	15 2621-436 DECAL,SIDE PANEL FWD-RH-BLK (LTD) Lower Front - Right - Black	2621-436	US $17.83
15	15 2621-403 DECAL,SIDE PANEL FWD-LH-GRN (LTD) Lower Front - Left - Green	2621-403	US $19.65
15	15 2621-437 DECAL,SIDE PANEL FWD-LH-BLK (LTD) Lower Front - Left - Black	2621-437	US $17.83
16	16 1623-637 Clip U-nut Lower Front - Left - Black	1623-637	US $13
17	17 0607-447 Cable Lower Front - Left - Black	0607-447	US $4.98
18	18 0605-283 Key Cotter Lower Front - Left - Black	0605-283	US $14.25
19	19 8060-486 Rivet Lower Front - Left - Black	8060-486	US $11.60
20	20 8050-127 Washer Flat Lower Front - Left - Black	8050-127	US $39
21	21 1623-129 Screw Self-tapping Lower Front - Left - Black	1623-129	US $3.34
	replacement
21	21 2623-166 Screw, Self-Tapping Lower Front - Left - Black	2623-166	US $10.40
22	22 1623-052 U-nut Lower Front - Left - Black	1623-052	US $2.68
23	23 6606-925 SCREEN,INTAKE Lower Front - Left - Black	6606-925	US $32.19
24	24 2602-794 DUCT,INTAKE-INNER Inner	2602-794	US $25.51
25	25 1623-030 Nut Speed Inner	1623-030	US $8.04 ~~US $8.04~~
26	26 2602-801 DUCT,INTAKE-OUTER-TA GRN Outer - Green	2602-801	US $17.83
26	26 2602-793 DUCT,INTAKE-OUTER-BLK Outer - Black	2602-793	US $17.83
27	27 0619-206 Foil Outer - Black	0619-206	US $240.38
28	28 6606-925 SCREEN,INTAKE Outer - Black	6606-925	US $32.19
29	29 1702-369 DUCT,AIR-CLUTCH W/FOIL Outer - Black	1702-369	US $35.93
30	30 6606-694 Foil,clutch duct-2 stroke Outer - Black	6606-694	US $3.79
31	31 4718-778 Plate, Skid - W/decals - Right - Green w/Decals - Right - Green \| (inc. 32-39 and 46)	4718-778	US $229.25
31	31 4718-806 Plate, Skid - W/decals - Right - Black w/Decals - Right - Black \| (inc. 32-39 and 46)	4718-806	US $210.14
32	32 4718-222 PLATE,SKID-TA GRN-DSI RH W/FOAM w/o Decals - Right - Green \| (inc. 31-37)	4718-222	US $219.71
32	32 4718-158 PLATE,SKID-BLK-RH W/FOAM (DSI) Right w/Foam- Black \| (inc. 33-39)	4718-158	US $177.36
33	33 0617-640 Foam,skid plate-rear-rh Upper Rear - Right	0617-640	US $3.64
34	34 0617-638 Foam,skid plate-middle-rh Center Front - Right	0617-638	US $43.62
35	35 0617-636 Foam,skid plate-frt-rh Upper Front - Right	0617-636	US $36.80
36	36 2612-970 FOIL,SKID PLATE-RH Upper Front - Right	2612-970	US $13.65
	replacement
36	36 3612-327 Foil,heat-Skid Plate Upper Front - Right	3612-327	US $9.77
37	37 8061-708 Rivet Upper Front - Right	8061-708	US $13.40
38	38 2612-754 Shield,resonator-skid plate Upper Front - Right	2612-754	US $26.77
39	39 0123-802 Washer Upper Front - Right	0123-802	US $1.16
40	40 4718-699 Plate, Skid - W/decals - Left - Green w/Decals - Left - Green \| (inc. 36,38-44)	4718-699	US $116.57
	replacement
40	40 4718-221 PLATE,SKID-TA GRN-LH W/FOAM w/Decals - Left - Green \| (inc. 36,38-44)	4718-221	US $220.62
40	40 4718-657 PLATE,SKID-LH-W/DECAL (LTD BLK) w/Decals - Left - Black \| (inc. 40 and 42-48)	4718-657	US $105.89
	replacement
40	40 3718-789 Plate,skid-rear lh w/foam w/Decals - Left - Black \| (inc. 40 and 42-48)	3718-789	US $101.68
41	41 4718-221 PLATE,SKID-TA GRN-LH W/FOAM w/o Decals - Left - Green \| (inc. 35, 37, and 39-42)	4718-221	US $220.62
41	41 3718-789 Plate,skid-rear lh w/foam Left w/Foam - Black \| (inc. 28 and 30-34)	3718-789	US $101.68
42	42 0617-637 Foam,skid plate-frt-lh Upper Front - Left	0617-637	US $16.22
43	43 0617-639 Foam,skid plate-middle-lh Center Front - Left	0617-639	US $17.85
44	44 0617-641 Foam,skid plate-rear-lh Upper Rear - Left	0617-641	US $4.32
45	45 6606-613 Retainer,tab-side panel Upper Rear - Left	6606-613	US $13.35
46	46 2621-406 DECAL,SKID-RH-GRN (LTD) Lower Front - Right - Green	2621-406	US $20.41
46	46 2621-440 DECAL,SKID-RH-BLK (LTD) Lower Front - Right - Black	2621-440	US $20.41
46	46 2621-407 DECAL,SKID-LH-GRN (LTD) Lower Front - Left - Green	2621-407	US $38.17
46	46 2621-441 DECAL,SKID-LH-BLK (LTD) Lower Front - Left - Black	2621-441	US $20.41
47	47 2623-005 Clip,receptacle-1/4 turn stud Lower Front - Left - Black	2623-005	US $3.63
48	48 6606-592 Pin,retainer-body plastic Lower Front - Left - Black	6606-592	US $13.58
49	49 2612-972 PLATE,EXHAUST OUTLET Lower Front - Left - Black	2612-972	US $15.39
50	50 2612-971 SEAL,EXHAUST OUTLET-CWI Lower Front - Left - Black	2612-971	US $38.17
51	51 1712-963 DEFLECTOR,EXHAUST OUTLET-PTD BLK Black	1712-963	US $29.32
52	52 8061-710 Rivet Black	8061-710	US $30
53	53 6606-940 SHIELD,HEAT-ECU ECM	6606-940	US $75.83
	replacement
53	53 063-2003 Shield,heat-I-Qs Module ECM	063-2003	US $80.16
54	54 8476-620 Screw Cap ECM	8476-620	US $2.95
55	55 0730-265 Ecm ECM	0730-265	US $2,048.65
56	56 0423-031 Nut Speed ECM	0423-031	US $6.70
57	57 0623-784 Screw ECM	0623-784	—
	replacement
57	57 2623-163 Screw, Self-Tapping ECM	2623-163	US $9.05
58	58 6606-342 Panel,filler-rh-blk Right - Black	6606-342	US $29.03
58	58 3718-303 Panel,filler w/foil-lh Left - Black \| (inc. 59)	3718-303	US $17.83
59	59 6606-405 Foil,protective-filler panel-lh Left - Black \| (inc. 59)	6606-405	US $28.06
60	60 2623-001 Ushnut - 3/16" stud Left - Black \| (inc. 59)	2623-001	US $2.36
61	61 1623-999 Screw,1" rnd knob-m5x0.8x20mm lg Left - Black \| (inc. 59)	1623-999	US $26.68

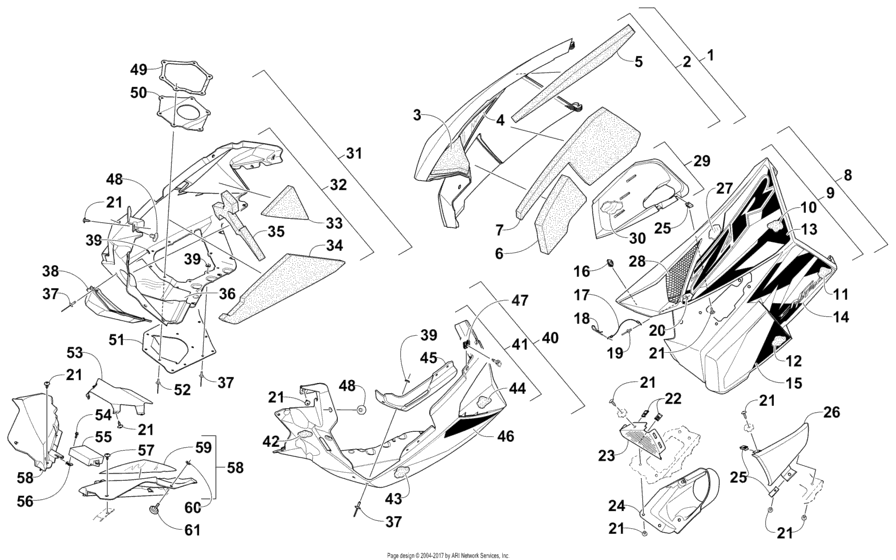

Skid Plate And Side Panel Assembly (103399) Diagram Arctic Cat ZR-series ZR6000 Limited ES 137 Black General 16860119-862793

Skid Plate And Side Panel Assembly (103399) Diagram Arctic Cat ZR-series ZR6000 Limited ES 137 Black General 16860119-862793
