Tunnel, Rear Bumper, And Snowflap Assembly (103779)

Difficulties in parts search?

Parts list

Tunnel, Rear Bumper, And Snowflap Assembly

Difficulties in parts search?

	Description	OEM Part #	Price
-	- 1707-793 Chassis-128" 2 strk-assy-ptd wht Left-Hand Thread	1707-793	US $2,824.54
1	1 1707-914 Tunnel,hp-s/p assy-ptd wht (inc. 2-13)	1707-914	US $1,087.78
2	2 1707-904 Brkt,spar support-rh-ptd wht Rear Spar - Right - White	1707-904	US $30.86
3	3 1707-918 Brkt,rear susp-outer rh-ptd wht Suspension - Right - White	1707-918	US $22.44
3	3 1707-919 Brkt,rear susp-outer lh-ptd wht Suspension - Left - White	1707-919	US $22.44
4	4 8060-686 Rivet Zinc	8060-686	US $5.80
5	5 1623-241 Rivet Zinc	1623-241	US $12.80
6	6 8422-502 Nut Lock Zinc	8422-502	US $4.72
7	7 1707-904 Brkt,spar support-rh-ptd wht Rear Spar - Right - White	1707-904	US $30.86
7	7 1707-905 Brkt,spar support-lh-ptd wht Rear Spar - Left - White	1707-905	US $30.86
8	8 8476-512 SCREW,MACH-TSTRH M5X0.8X12 Z&Y Rear Spar - Left - White	8476-512	US $10.86
9	9 1623-257 Rivet,3/16 huck-m5 Rear Spar - Left - White	1623-257	US $28.80
10	10 8060-682 Rivet Rear Spar - Left - White	8060-682	US $6
11	11 1707-837 Tunnel,rear-128-ptd wht Rear Spar - Left - White	1707-837	US $206.05
12	12 8060-504 Rivet Rear Spar - Left - White	8060-504	US $8.60
13	13 1707-834 End cap,tunnel-ptd wht White	1707-834	US $38.17
14	14 8061-686 Rivet White	8061-686	US $13.40
15	15 1623-762 Clamp Routing White	1623-762	US $9.46
16	16 0645-709 Clip,battery cable White	0645-709	US $10.40
17	17 8476-820 Screw Machine White	8476-820	US $1.34
18	18 1707-454 Hook,toe-rh ptd blk Right	1707-454	US $60.74
18	18 1707-455 Hook,toe-lh ptd blk Left	1707-455	US $60.74
19	19 8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 Lock Left	8427-802	US $0.72
20	20 0744-087 KIT,TOOL BAG-2 STROKE-ASSY Left	0744-087	—
21	21 8468-535 SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK Left	8468-535	US $5.32
22	22 1623-637 Clip U-nut Left	1623-637	US $13
23	23 1707-802 Toe stop,rh - formed-ptd wht Right - White	1707-802	US $29.45
23	23 1707-803 Toe stop,lh - formed-ptd wht Left - White	1707-803	US $29.45
24	24 8470-516 Screw Machine Left - White	8470-516	US $0.86
25	25 0608-705 Brkt,routing-oil line Oil Line	0608-705	US $12.60
26	26 1607-109 Protector,chain case Oil Line	1607-109	US $5.09
27	27 8061-708 Rivet Oil Line	8061-708	US $13.40
28	28 0607-351 Protector,brake disc-bottom Oil Line	0607-351	US $21.39
29	29 2707-084 Cover,shield-brk disc-ptd wht White	2707-084	US $54.54
30	30 8408-613 Screw,cap-hfh m6x1.0x12 cl8.8 z&y w/2353 White	8408-613	US $4.16
31	31 1623-130 Rivet White	1623-130	US $13.56
32	32 1707-899 Edge,running board-ptd wht White	1707-899	US $50.82
33	33 0630-308 Protector,taillight harness-128" Taillight Extension	0630-308	US $15.28
34	34 1707-906 Gusset,running board-rh-ptd wht Right - White	1707-906	US $28.06
34	34 1707-907 Gusset,running board-lh-ptd wht Left - White	1707-907	US $28.06
35	35 1707-908 Gusset,tunnel-rh-ptd wht Right - White	1707-908	US $28.06
35	35 1707-909 Gusset,tunnel-rh-ptd wht Left - White	1707-909	US $26.77
36	36 0630-292 Protector,taillight harness-62.5mm Left - White	0630-292	US $13.99
37	37 0621-990 New Genuine Part Red	0621-990	US $13.99
38	38 8470-512 Screw,mach-tspnh m5x.8x12 cl8.8 z&y Red	8470-512	US $0.70
39	39 0730-228 HOUSING,TAILLIGHT-PTD WHT Taillight - White	0730-228	US $34.67
40	40 0609-898 Taillight,red Taillight - White	0609-898	US $71.66
41	41 6606-394 Flap,snow-mtn-blk Taillight - White	6606-394	US $97.96
42	42 5611-852 Decal Towing; warning Towing (French)	5611-852	US $2.28
43	43 5611-853 Decal Towing; warning Towing (English)	5611-853	US $2.28
44	44 2707-581 BUMPER,REAR-129"-PTD-ORN Orange	2707-581	US $103.67
45	45 8060-710 Rivet Orange	8060-710	US $4.30
46	46 6606-870 FLARE,TUNNEL-RH BLK Right \| (Standard on LTD and El Tigre)	6606-870	US $54.54
46	46 6606-871 FLARE,TUNNEL-LH BLK Left \| (Standard on LTD and El Tigre)	6606-871	US $54.54
47	47 8476-620 Screw Cap Left \| (Standard on LTD and El Tigre)	8476-620	US $2.95
48	48 8427-602 Nut Left \| (Standard on LTD and El Tigre)	8427-602	US $1.45
49	49 6606-600 Saddlebag,rear Left \| (Standard on LTD and El Tigre)	6606-600	US $224.53
50	50 8060-630 Rivet Left \| (Standard on LTD and El Tigre)	8060-630	US $16.50
51	51 1623-940 Grommet,seat bag Left \| (Standard on LTD and El Tigre)	1623-940	US $7.56
52	52 3621-390 Decal, Tunnel - Right Right	3621-390	US $22.94
52	52 3621-391 Decal, Tunnel - Left Left	3621-391	US $22.94
53	53 3621-388 Decal, Tunnel - Right Right	3621-388	US $4.20
53	53 3621-389 Decal, Tunnel - Left Left	3621-389	US $4.20
54	54 3621-386 Decal, Tunnel - Right Right	3621-386	US $16.56
54	54 3621-387 Decal, Tunnel - Left Left	3621-387	US $16.56
55	55 3621-384 Decal, Tunnel - Right Right	3621-384	US $16.56
55	55 3621-385 Decal, Tunnel - Left Left	3621-385	US $16.56
56	56 3621-392 Decal, Tunnel - Right Right	3621-392	US $5.61
56	56 3621-393 Decal, Tunnel - Left Left	3621-393	US $5.61
57	57 3621-394 Decal, Tunnel - Right Right	3621-394	US $11.43
57	57 3621-395 Decal, Tunnel - Left Left	3621-395	US $11.43
58	58 3621-402 Decal, Bumper - In.129In in.129in.	3621-402	US $1.52

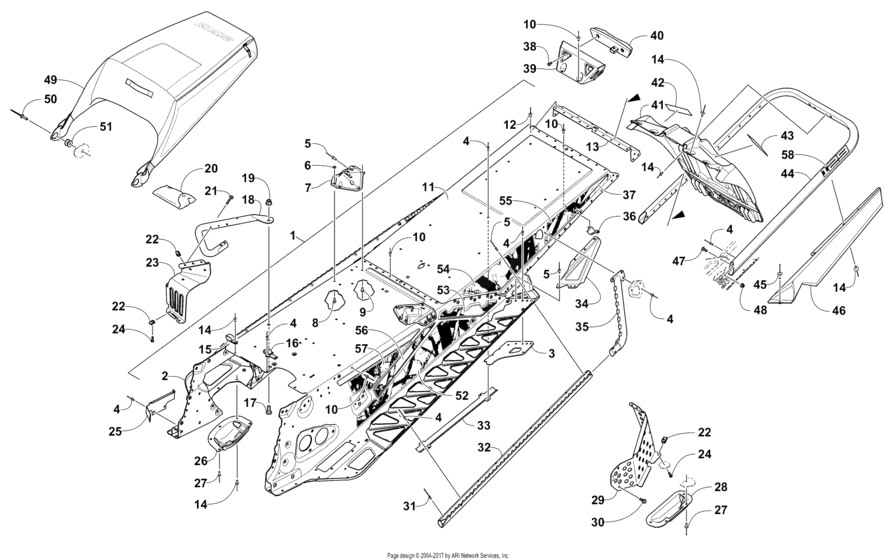

Tunnel, Rear Bumper, And Snowflap Assembly (103779) Diagram Arctic Cat ZR-series ZR6000 Limited ES 129 Orange Early Build General 16866560-862935
