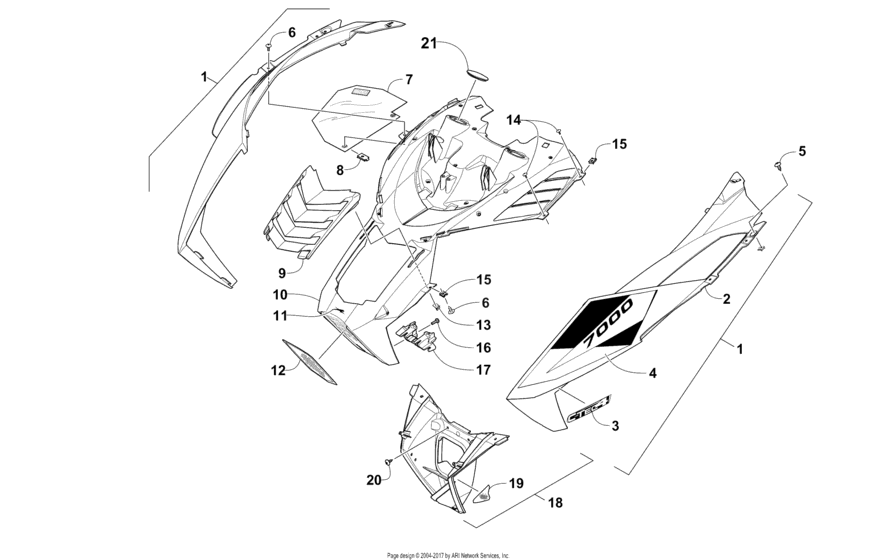

Hood assembly (102646) Diagram Arctic Cat ZR-series ZR7000 Limited 137
- Model code
- S2016ZXULEEBB
- Engine Capacity
- 1049
- Year
- 2016
- Commercial Name
- ZR7000 Limited 137
- Sales region
- General
- Colour
- Black Early Build
- Stroke (2-stroke or 4-stroke)
- 4-stroke
- Model
- ZR7000 Limited
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4718-694 HOOD,W/DECALS-RH-BLK (7 LTD)Right - White | (inc. 2-4) |
4718-694 |
US $373.44 |
||
|
1
|
1
4718-695 HOOD,W/DECALS-LH-BLK (7 LTD)Left - White | (inc. 2-4) |
4718-695 |
US $373.44 |
||
|
2
|
2
6606-318 Hood,main-rh-blkRight - Black |
6606-318 |
US $117.33 |
||
|
2
|
2
6606-319 Hood,main-lh-blkLeft - Black |
6606-319 |
US $161.01 |
||
| replacement | |||||
|
2
|
2
3718-313 Hood,w/foil-lh-blkLeft - Black |
3718-313 |
US $161.01 |
||
|
3
|
3
0621-993 Decal,hood-"ctec4"in.C-TEC4in. |
0621-993 |
US $4.09 |
||
|
4
|
4
2621-422 DECAL,HOOD-7000-RH-BLK (LTD)Right - Black |
2621-422 |
US $32.26 |
||
|
4
|
4
2621-423 DECAL,HOOD-7000-LH-BLK (LTD)Left - Black |
2621-423 |
US $32.26 |
||
|
5
|
5
0623-784
Screw
Left - Black |
0623-784 |
— | ||
| replacement | |||||
|
5
|
5
2623-163 Screw, Self-TappingLeft - Black |
2623-163 |
US $9.05 |
||
|
6
|
6
1623-031 ScrewSelf-tapping Left - Black |
1623-031 |
US $12.30 |
||
| replacement | |||||
|
6
|
6
2623-165 Screw, Self-TappingLeft - Black |
2623-165 |
US $19.30 |
||
|
7
|
7
1712-899 SHIELD,HEAT BARRIERRight |
1712-899 |
US $153.64 |
||
|
8
|
8
1623-030 NutSpeed Right |
1623-030 |
US $8.04 |
||
|
9
|
9
6606-388 Grille,intercooler-blkRight |
6606-388 |
US $146.91 |
||
|
10
|
10
6606-510 PLENUM,AIR INTAKE-UPPER-ROUTEDUpper |
6606-510 |
US $209.64 |
||
|
11
|
11
4411-479 EMBLEM,AIRCATUpper |
4411-479 |
US $9.90 |
||
|
12
|
12
0608-696 Screen,plenumUpper |
0608-696 |
US $37.01 |
||
|
13
|
13
1623-694 ClipRetaining Upper |
1623-694 |
US $4.30 |
||
|
14
|
14
0623-797 ScrewSelf-tapping Upper |
0623-797 |
US $8.32 |
||
| replacement | |||||
|
14
|
14
2623-164 Screw, Self-TappingUpper |
2623-164 |
US $7.60 |
||
|
15
|
15
1623-939 Nut,speed-#10 b "u" typeUpper |
1623-939 |
US $3.24 |
||
|
16
|
16
1623-933 Screw,plastite-txspnh 10-14x3/4 z&bUpper |
1623-933 |
US $2.58 |
||
|
17
|
17
6606-822 RETAINER,LOWER PLENUMUpper |
6606-822 |
US $12.71 |
||
|
18
|
18
5706-992 PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(7)Lower Front | (inc. 17) |
5706-992 |
US $70.67 |
||
|
19
|
19
0621-989 Decal,reflector-amberAmber |
0621-989 |
US $13.99 |
||
|
20
|
20
1623-129 ScrewSelf-tapping Amber |
1623-129 |
US $3.34 |
||
| replacement | |||||
|
20
|
20
2623-166 Screw, Self-TappingAmber |
2623-166 |
US $10.40 |
||
|
21
|
21
2623-055 PLUG,RUBBER-60mm DIA HOLEAmber |
2623-055 |
US $11.50 |
||
