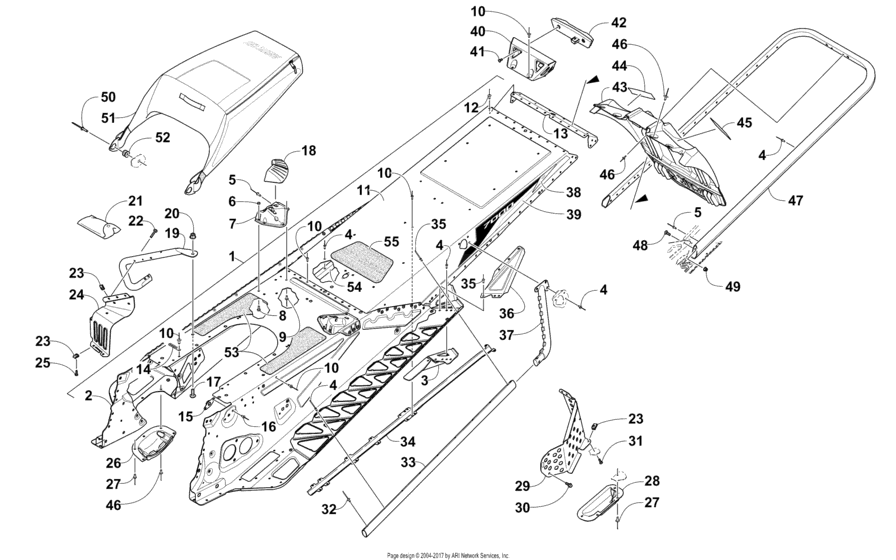

Tunnel, Rear Bumper, And Snowflap Assembly (102724) Diagram Arctic Cat ZR-series ZR7000 LXR 137
- Model code
- S2016ZXULXUSO
- Engine Capacity
- 1049
- Year
- 2016
- Commercial Name
- ZR7000 LXR 137
- Sales region
- General
- Colour
- Orange
- Stroke (2-stroke or 4-stroke)
- 4-stroke
- Model
- ZR7000 LXR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
-
|
-
2707-083 CHASSIS,137/141" OMWD-SPR ASSY106 mm |
2707-083 |
US $2,333.94 |
||
|
1
|
1
2707-383 TUNNEL, XF7-137-S/P ASSY(inc. 2-13 and 34) |
2707-383 |
US $970.40 |
||
|
2
|
2
1707-952 CHASSIS,HP5-SPR ASSYAssembly | (inc. 3-4) |
1707-952 |
US $726.05 |
||
|
3
|
3
1607-332 BRKT,REAR SUSP-OUTER RHSuspension - Right |
1607-332 |
US $17.83 |
||
|
3
|
3
1607-333 BRKT,REAR SUSP-OUTER LHSuspension - Left |
1607-333 |
US $17.83 |
||
|
4
|
4
8060-686 RivetZinc |
8060-686 |
US $5.80 |
||
|
5
|
5
1623-206 RivetZinc |
1623-206 |
US $14.40 |
||
|
6
|
6
8422-502 NutLock Zinc |
8422-502 |
US $4.72 |
||
|
7
|
7
1707-644 Brkt,spar support-rh-machRear Spar - Right |
1707-644 |
US $28.06 |
||
|
7
|
7
1707-645 Brkt,spar support-lh-machRear Spar - Left |
1707-645 |
US $28.06 |
||
|
8
|
8
8476-512 SCREW,MACH-TSTRH M5X0.8X12 Z&YRear Spar - Left |
8476-512 |
US $10.86 |
||
|
9
|
9
1623-257 Rivet,3/16 huck-m5Rear Spar - Left |
1623-257 |
US $28.80 |
||
|
10
|
10
8060-682 RivetRear Spar - Left |
8060-682 |
US $6 |
||
|
11
|
11
1607-395 TUNNEL,REAR-141" -PLAINRear Spar - Left |
1607-395 |
US $313.87 |
||
|
12
|
12
8060-482 RivetRear Spar - Left |
8060-482 |
US $11.80 |
||
| replacement | |||||
|
12
|
12
8060-484 RivetRear Spar - Left |
8060-484 |
US $5.80 |
||
|
13
|
13
1607-104 Close off,tunnel-mcRear Spar - Left |
1607-104 |
US $34.67 |
||
|
14
|
14
1623-984 Clamp,wire - 76.14mm lg w/6.25 holeRear Spar - Left |
1623-984 |
US $17.70 |
||
|
15
|
15
0608-631 Plate,nut-pto-eng/chassisRear Spar - Left |
0608-631 |
US $25.51 |
||
|
16
|
16
8060-688 RivetZinc |
8060-688 |
US $5.90 |
||
|
17
|
17
8476-820 ScrewMachine Zinc |
8476-820 |
US $1.34 |
||
|
18
|
18
6606-664 MOUNT,FUEL TANK-RUBBER-RHRight |
6606-664 |
US $18.20 |
||
|
18
|
18
6606-665 MOUNT,FUEL TANK-RUBBER-LHLeft |
6606-665 |
US $18.20 |
||
|
19
|
19
1707-454 Hook,toe-rh ptd blkRight |
1707-454 |
US $60.74 |
||
|
19
|
19
1707-455 Hook,toe-lh ptd blkLeft |
1707-455 |
US $60.74 |
||
|
20
|
20
8427-802 NUT,HEX FLG-NYL LOCK M8X1.25Lock Left |
8427-802 |
US $0.72 |
||
|
21
|
21
0744-088
KIT,TOOL BAG-4 STROKE-ASSY
Left |
0744-088 |
— | ||
|
22
|
22
8468-535 SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLKLeft |
8468-535 |
US $5.32 |
||
|
23
|
23
1623-637 ClipU-nut Left |
1623-637 |
US $13 |
||
|
24
|
24
0607-996 Toe stop,rh - formedRight |
0607-996 |
US $25.23 |
||
|
24
|
24
0607-997 Toe stop,lh - formedLeft |
0607-997 |
US $25.23 |
||
|
25
|
25
8470-516 ScrewMachine Left |
8470-516 |
US $0.86 |
||
|
26
|
26
1607-109 Protector,chain caseLeft |
1607-109 |
US $5.09 |
||
|
27
|
27
8061-708 RivetLeft |
8061-708 |
US $13.40 |
||
|
28
|
28
0607-351 Protector,brake disc-bottomLeft |
0607-351 |
US $21.39 |
||
|
29
|
29
1607-371 Cover,shield-brake discLeft |
1607-371 |
US $95.48 |
||
|
30
|
30
8408-613 Screw,cap-hfh m6x1.0x12 cl8.8 z&y w/2353Left |
8408-613 |
US $4.16 |
||
|
31
|
31
8470-520 ScrewMachine Left |
8470-520 |
US $2.36 |
||
|
32
|
32
1623-130 RivetLeft |
1623-130 |
US $13.56 |
||
|
33
|
33
1607-092 Edge,running board-machRight |
1607-092 |
US $53.28 |
||
|
34
|
34
0630-316 Protector,taillight harness-141"Taillight Extension |
0630-316 |
US $28.06 |
||
|
35
|
35
1623-241 RivetTaillight Extension |
1623-241 |
US $12.80 |
||
|
36
|
36
1607-162 Gusset,running board-rhRight |
1607-162 |
US $16.56 |
||
|
36
|
36
1607-163 Gusset,running board-lhLeft |
1607-163 |
US $16.56 |
||
|
37
|
37
1607-040 Gusset,tunnel-rhRight |
1607-040 |
US $19.09 |
||
|
37
|
37
1607-041 Gusset,tunnel-lhLeft |
1607-041 |
US $19.09 |
||
|
38
|
38
0621-990 New Genuine PartRed |
0621-990 |
US $13.99 |
||
|
39
|
39
2621-566 DECAL,TUNNEL-ZR 137 7000 GRN RHRight - Green |
2621-566 |
US $32.26 |
||
|
39
|
39
2621-600 DECAL,TUNNEL-ZR 137 7000 ORN RHRight - Orange |
2621-600 |
US $32.26 |
||
|
39
|
39
2621-567 DECAL,TUNNEL-ZR 137 7000 GRN LHLeft - Green |
2621-567 |
US $32.26 |
||
|
39
|
39
2621-601 DECAL,TUNNEL-ZR 137 7000 ORN LHLeft - Orange |
2621-601 |
US $32.26 |
||
|
40
|
40
0630-328 HOUSING,TAILLIGHTTaillight |
0630-328 |
US $26.77 |
||
|
41
|
41
8470-510 ScrewMachine Taillight |
8470-510 |
US $4.40 |
||
|
42
|
42
0609-898 Taillight,redTaillight |
0609-898 |
US $71.66 |
||
|
43
|
43
6606-394 Flap,snow-mtn-blkTaillight |
6606-394 |
US $97.96 |
||
|
44
|
44
5611-852 DecalTowing; warning Towing (French) |
5611-852 |
US $2.28 |
||
|
45
|
45
5611-853 DecalTowing; warning Towing (English) |
5611-853 |
US $2.28 |
||
|
46
|
46
8061-706 RivetTowing (English) |
8061-706 |
US $13.30 |
||
|
47
|
47
2707-586 BUMPER,REAR-137/141"-PTD-TA GRNGreen |
2707-586 |
US $103.67 |
||
|
47
|
47
2707-587 BUMPER,REAR-137/141"-PTD-ORNOrange |
2707-587 |
US $94.24 |
||
|
48
|
48
8476-620 ScrewCap Orange |
8476-620 |
US $2.95 |
||
|
49
|
49
8427-602 NutOrange |
8427-602 |
US $1.45 |
||
|
50
|
50
8060-630 RivetOrange |
8060-630 |
US $16.50 |
||
|
51
|
51
7606-069 SADDLEBAG,REAR-7000 ACOrange |
7606-069 |
US $241.52 |
||
|
52
|
52
1623-940 Grommet,seat bagOrange |
1623-940 |
US $7.56 |
||
|
53
|
53
6606-814 PAD,FUEL TANK MOUNT-RHRight |
6606-814 |
US $3.70 |
||
|
53
|
53
6606-815 PAD,FUEL TANK MOUNT-LHLeft |
6606-815 |
US $3.70 |
||
|
54
|
54
1607-455 PROTECTOR,TUNNEL-LASERED 137"/141"Left |
1607-455 |
US $61.36 |
||
|
55
|
55
6606-816 PAD,TUNNEL-FUEL TANKCenter |
6606-816 |
US $11.43 |
||
