Component List ZR-series ZR7000 Sno Pro RR
Front Suspension Shock Absorber (101183)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
-	- 3703-344 SHOCK,SKI-EVOL X-RH (RR) Right	3703-344	US $1,276.11
-	- 3703-345 SHOCK,SKI-EVOL X-LH (RR) Left	3703-345	US $1,276.11
1	1 3604-147 Ring Retaining Left	3604-147	US $19.54
2	2 1604-664 Bearing Left	1604-664	US $50.45
3	3 3603-381 CAP,BODY-EVOL3-1.834 BORE Right	3603-381	US $162.47
3	3 3603-395 CAP,BODY-EVOL3-1.834 BORE Left	3603-395	US $162.47
4	4 3603-420 KIT, REBUILD - FLOAT 3 - EVOL RC2 Left	3603-420	US $173.29
5	5 3603-371 PISTON,FLOATING-ASSY-1.070 BORE Left	3603-371	US $40.89
6	6 3603-384 KNOB,REBOUND ADJUST-3/8-32 Left	3603-384	US $24.75
7	7 3603-386 KNOB,DAMPING ADJUST-REBOUND Left	3603-386	US $6.77
8	8 3603-377 SCREW,#4-40 X 1/4 SS Left	3603-377	US $11.43
9	9 3603-367 CAP,VALVE-EVOL-BLACK Left	3603-367	US $3.70
10	10 2603-965 Seal,cap-evol air valve-.296"odx.125"id Left	2603-965	US $1.68
11	11 2603-511 Valve Air Left	2603-511	US $68.64
12	12 3603-002 Reservoir,evol chamber-4.50" Left	3603-002	US $49.56
13	13 3603-373 DECAL,FLOAT X EVOL Left	3603-373	US $21.03
14	14 3603-372 END CAP-RESERVOIR-ASSY- 1.070 BORE Left	3603-372	US $29.71
15	15 3603-290 SLEEVE,FLOAT-DUAL WIPER-8.80"TLG-ASSY Upper \| (inc. 4 and 16)	3603-290	US $222.04
16	16 3603-376 BEARING,INTERNAL-1.662 ID X .375 TLG Upper \| (inc. 4 and 16)	3603-376	US $19.78
17	17 3603-369 DECAL,FLOAT 3-W/WARNINGS Upper \| (inc. 4 and 16)	3603-369	US $16.56
18	18 3603-005 Bumper,black-.498 shaft x .883" tlg Upper \| (inc. 4 and 16)	3603-005	US $17.30
19	19 3603-409 BEARING ASSY-1.459 BORE X 1.388" Assembly	3603-409	US $74.39
20	20 1603-940 Screw Assembly	1603-940	US $1.09
21	21 3603-008 Spacer,shaft-.504id x 1.125od x .100"thk Assembly	3603-008	US $28.47
22	22 3603-387 ROD,DAMPING ADJUST-.175 OD X 7.40" Assembly	3603-387	US $19.78
23	23 3603-423 SHAFT .498OD X 8.7 - SERVICE SET Assembly	3603-423	US $203.43
24	24 3603-394 SPRING ASSEMBLY Assembly	3603-394	US $64.45
25	25 0603-540 Washer 1.125OD x 0.378ID x 0.093	0603-540	US $15.28
26	26 0603-338 Valve .900 x .010 1.125OD x 0.378ID x 0.093	0603-338	US $13.58
27	27 0603-341 Valve 1.000 x .010 1.125OD x 0.378ID x 0.093	0603-341	US $5.83
28	28 0603-344 Valve 1.100 x .010 1.125OD x 0.378ID x 0.093	0603-344	US $11.10
29	29 0603-347 Valve 1.250 x .010 1.125OD x 0.378ID x 0.093	0603-347	US $12.34
30	30 0603-350 Valve 1.300 x .010 1.125OD x 0.378ID x 0.093	0603-350	US $16.06
31	31 0603-333 Valve .800x.006 1.125OD x 0.378ID x 0.093	0603-333	US $12.34
32	32 0603-349 Valve 1.300x.008 1.125OD x 0.378ID x 0.093	0603-349	US $12.34
33	33 4604-038 VALVE,BLEED 3PRT-1.300ODX.375IDX.008 THK 1.125OD x 0.378ID x 0.093	4604-038	US $11.10
34	34 3603-397 PISTON,DAMPING-1.459 BORE-3 PORT 1.125OD x 0.378ID x 0.093	3603-397	US $153.81
35	35 0603-343 Valve 1.100 x 0.008 in. 1.125OD x 0.378ID x 0.093	0603-343	US $6.20
36	36 0603-895 Valve 040-04-080; shock .800x.004 1.125OD x 0.378ID x 0.093	0603-895	US $5.92
37	37 3604-170 Plate Top out 1.125OD x 0.378ID x 0.093	3604-170	US $19.78
38	38 0603-389 Washer Backup 1.125OD x 0.378ID x 0.093	0603-389	US $11.10
39	39 3603-360 BODY,SHOCK-1.459 BORE X 9.1 TLG Lower	3603-360	US $93
40	40 3603-382 BODY,CAP-PIGGYBACK-2.3" DROP RESERVOIR Lower	3603-382	US $176.12
41	41 3603-422 PISTON ASSY - FLOAT MAX BLEED (inc. 4)	3603-422	US $64.45
42	42 1604-316 Screw W/o-ring; relief w/O-Ring \| (inc. 43)	1604-316	US $4.57
43	43 3603-392 END CAP,RESERVOIR-ASSY 1.834 BORE w/O-Ring \| (inc. 43)	3603-392	US $30.95
44	44 3603-379 RING,RETAINING-SPIRAL-1.117 OD w/O-Ring \| (inc. 43)	3603-379	US $2.66
45	45 3603-388 RESERVOIR,1.834 BORE X 4.00 TLG w/O-Ring \| (inc. 43)	3603-388	US $101.68
46	46 3603-365 DECAL,BAND-PERFORMANCE SERIES w/O-Ring \| (inc. 43)	3603-365	US $18.20
47	47 3603-378 DECAL,RESERVOIR-PERFORMANCE SERIES w/O-Ring \| (inc. 43)	3603-378	US $18.20
48	48 0403-380 DAMPING ADJUST-ASSY Damping Adjuster	0403-380	US $127.23
49	49 3603-385 KNOB,DAMPING ADJUST-LOW SPEED Low Speed	3603-385	US $3.70
50	50 4639-012 Fluid 8 oz; float shock 8 oz	4639-012	US $39.24
51	51 5639-530 Semi-syn shock oil-1 quart 1 qt	5639-530	US $177.06

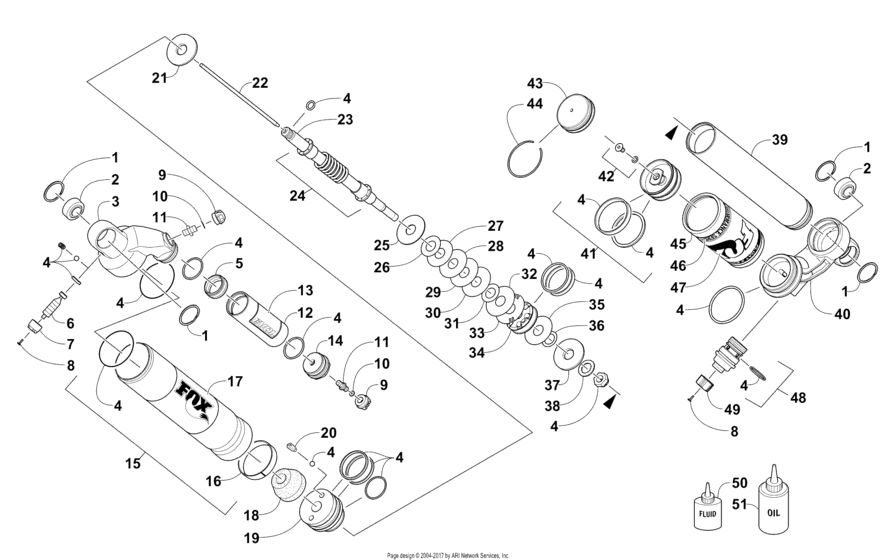

Front Suspension Shock Absorber (101183) Diagram Arctic Cat ZR-series ZR7000 Sno Pro RR Green General 16855210-862687
