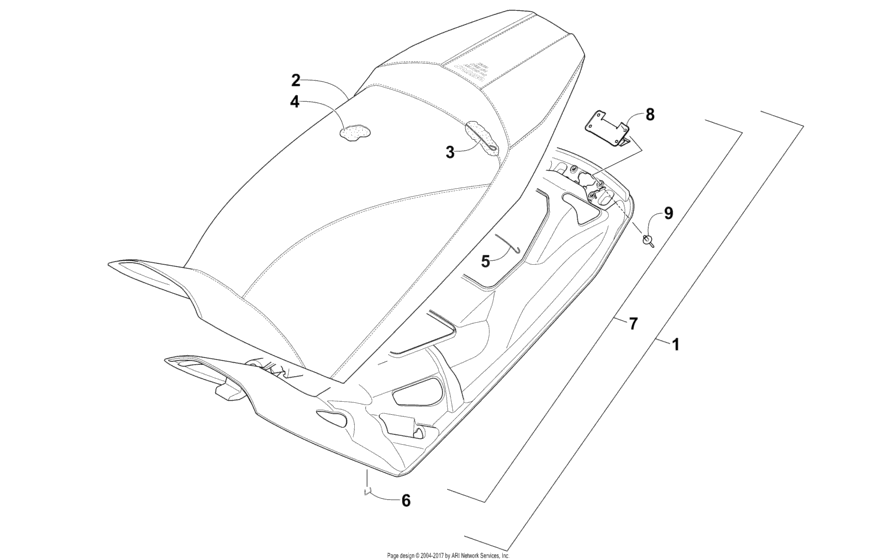

Seat assembly (101257) Diagram Arctic Cat ZR-series ZR7000 Sno Pro RR
- Model code
- S2015ZRURRUSG
- Engine Capacity
- 1049
- Year
- 2015
- Commercial Name
- ZR7000 Sno Pro RR
- Sales region
- General
- Colour
- Green
- Stroke (2-stroke or 4-stroke)
- 4-stroke
- Model
- ZR7000 Sno Pro
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5706-818 SEAT,ASSY-7 RRGreen | (inc. 2-9) |
5706-818 |
US $720.59 |
||
|
2
|
2
5706-819 COVER,SEAT- RR (214)Green | (inc. 3) |
5706-819 |
US $373.92 |
||
|
3
|
3
3606-369 WireSeat Green | (inc. 3) |
3606-369 |
US $4.33 |
||
|
4
|
4
0717-214 FOAM,SEAT-(64-70 ILD)[email protected]Green | (inc. 3) |
0717-214 |
US $137.79 |
||
|
5
|
5
6606-461 Wire,seat-3.048 dia x 279.4 mmGreen | (inc. 3) |
6606-461 |
US $1.92 |
||
|
6
|
6
0624-528 StapleGreen | (inc. 3) |
0624-528 |
US $148.85 |
||
|
7
|
7
5706-770 BASE,SEAT-ASSY(inc. 9-10) |
5706-770 |
US $55.91 |
||
|
8
|
8
6606-833 HOOK,SEAT LATCH(inc. 9-10) |
6606-833 |
US $16.56 |
||
|
9
|
9
8061-708 Rivet(inc. 9-10) |
8061-708 |
US $13.40 |
