	Description	OEM Part #	Price
1	1 1718-167 Hood w/decals Green inc. 2-23 ;	1718-167	US $1,199.67
1	1 1718-166 Hood w/decals Black inc. 2-23 CC Black ;	1718-166	US $1,360.10
2	2 0718-944 Hood w/o decals inc. 3-17 CC Black ;	0718-944	US $1,339.14
2	2 1718-044 Hood w/o decals Green inc. 3-17 ;	1718-044	US $1,182
3	3 0617-324 Foam	0617-324	—
3	3 0617-325 Foam	0617-325	—
4	4 0617-322 Foam Right - upper; hood	0617-322	US $36.09
4	4 0617-323 Foam Left - upper; hood	0617-323	US $49.82
5	5 0617-326 Foam Right - rear; hood	0617-326	US $14.89
5	5 0617-327 Foam Left - rear; hood	0617-327	US $29.45
6	6 0617-328 Foam Center; hood	0617-328	US $26.64
7	7 3611-485 Decal Hood; warning	3611-485	US $29.86
8	8 3611-486 Decal English; engine; caution English ;	3611-486	US $11.10
9	9 3611-487 Decal French; engine; caution French ;	3611-487	US $12.34
10	10 3611-488 Decal English; fuel; caution English ;	3611-488	US $11.10
11	11 3611-489 Decal French; fuel; caution French ;	3611-489	US $12.34
12	12 3611-509 Decal Seating capacity; warning	3611-509	US $66.93
13	13 4611-335 Decal Hood - left; "act"	4611-335	US $7.36
13	13 4611-334 Decal Hood - right; "act"	4611-334	US $7.36
14	14 1606-938 Foil Right; hood	1606-938	US $55.91
14	14 1606-939 Foil Left; hood	1606-939	US $69.75
15	15 2606-233 Foil Upper - right; hood	2606-233	US $90.04
16	16 1606-720 Hinge Black; hood	1606-720	from US $81.60
17	17 0623-797 Screw Self-tapping	0623-797	US $8.32
	replacement
17	17 2623-164 Screw, Self-Tapping	2623-164	US $7.60
18	18 4611-466 Decal Crest; hood	4611-466	US $34.85
18	18 4611-394 Decal Crest; hood CC Black ;	4611-394	US $152.57
19	19 4611-563 Decal Hood - left; "800"	4611-563	US $81.83
19	19 4611-564 Decal Oil tank	4611-564	US $81.83
19	19 4611-561 Decal Hood - left; "800" CC Black ;	4611-561	US $81.83
19	19 4611-562 Decal Hood - right; "800" CC Black ;	4611-562	US $81.83
20	20 4611-452 Decal Lower right; hood	4611-452	US $14.82
20	20 4611-453 Decal Lower left; hood	4611-453	US $314.63
20	20 4611-396 Decal Lower right; hood CC Black ;	4611-396	US $48.56
20	20 4611-397 Decal Lower left; hood CC Black ;	4611-397	US $33.43
21	21 4611-462 Decal Vent - rear - right; hood	4611-462	US $60.74
21	21 4611-463 Decal Vent - rear - left; hood	4611-463	US $32.19
21	21 4611-398 Decal Vent - rear - right; hood CC Black ;	4611-398	US $60.74
21	21 4611-399 Decal Vent - rear - left; hood CC Black ;	4611-399	US $60.74
22	22 4611-464 Decal Vent - front - right; hood	4611-464	US $92.19
22	22 4611-465 Decal Vent - front - left; hood	4611-465	US $92.19
22	22 4611-400 Decal Vent - front - right; hood CC Black ;	4611-400	US $48.32
22	22 4611-401 Decal Vent - front - left; hood CC Black ;	4611-401	US $93.44
23	23 3611-187 Decal "arctic cat"; hood	3611-187	US $29.25
23	23 4611-470 Decal Hood; "arctic cat" CC Black ;	4611-470	US $83.84
24	24 2606-247 Cable Hood	2606-247	US $13.99
	replacement
24	24 1606-158 Cable Hood	1606-158	US $13.99
25	25 0623-805 Clip Hairpin	0623-805	US $1.20
26	26 1606-067 Strap Holddown	1606-067	US $57.15
27	27 0623-690 Screw Hood hinge	0623-690	US $108.88
28	28 0623-057 Screw	0623-057	—
29	29 2606-469 Windshield CC Black ;	2606-469	US $122.12
29	29 2606-470 Windshield	2606-470	US $157.60
30	30 0616-032 O-ring Windshield	0616-032	US $14.40
31	31 0124-054 Snap cap w/washer	0124-054	US $16.50
32	32 0623-902 Screw Machine	0623-902	US $6.70
33	33 0623-845 Nut Expansion	0623-845	US $16.65

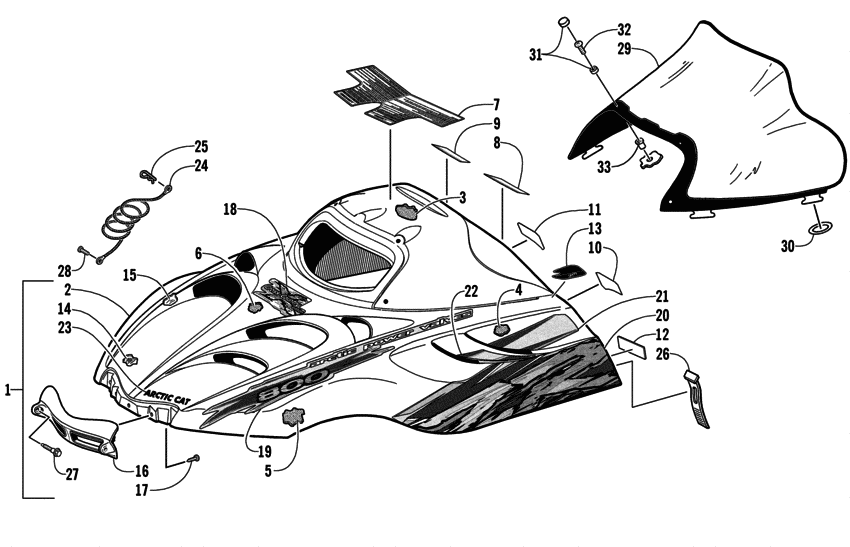

Hood And Windshield Assembly Diagram Arctic Cat ZR-series ZR800 CC Green General 10989321-697718
