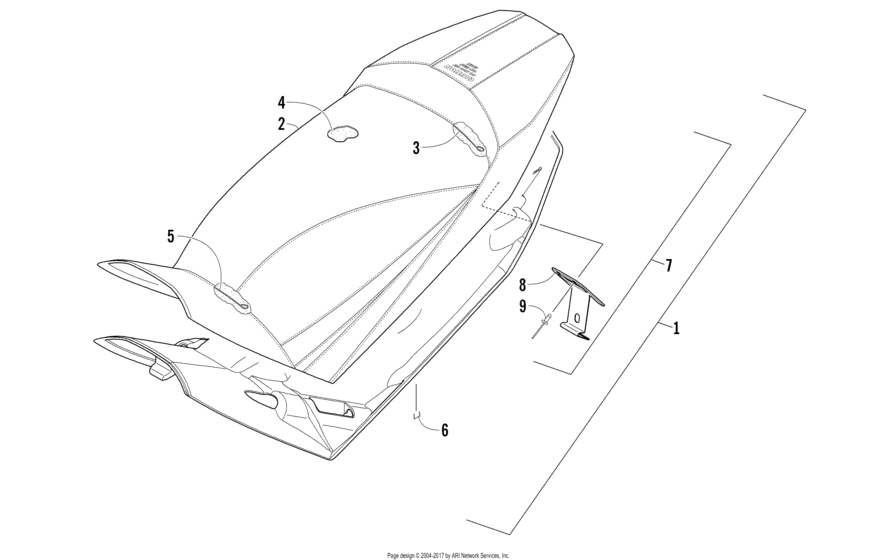

Seat assembly (99438) Diagram Arctic Cat ZR-series ZR8000 LXR
- Model code
- S2014ZRHLXUSB
- Engine Capacity
- 794
- Year
- 2014
- Commercial Name
- ZR8000 LXR
- Sales region
- General
- Colour
- Black
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR8000 LXR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5706-572 Seat,assy-blk lxr 800(inc. 2-9) |
5706-572 |
US $786.12 |
||
|
2
|
2
5706-573 Cover,seat-zr/xf lxr blk(inc. 3) |
5706-573 |
US $373.92 |
||
|
3
|
3
3606-369 WireSeat (inc. 3) |
3606-369 |
US $4.33 |
||
|
4
|
4
0717-215 FOAM,SEAT (64-70 ILD)[email protected](inc. 3) |
0717-215 |
US $133.96 |
||
|
5
|
5
6606-461 Wire,seat-3.048 dia x 279.4 mm(inc. 3) |
6606-461 |
US $1.92 |
||
|
6
|
6
0624-528 Staple(inc. 3) |
0624-528 |
US $148.85 |
||
|
7
|
7
5706-240 Base,seat-w/seat latch hook(inc. 8-9) |
5706-240 |
US $66.82 |
||
|
8
|
8
6606-452 Hook,seat latch(inc. 8-9) |
6606-452 |
US $16.56 |
||
|
9
|
9
8061-686 Rivet(inc. 8-9) |
8061-686 |
US $13.40 |
