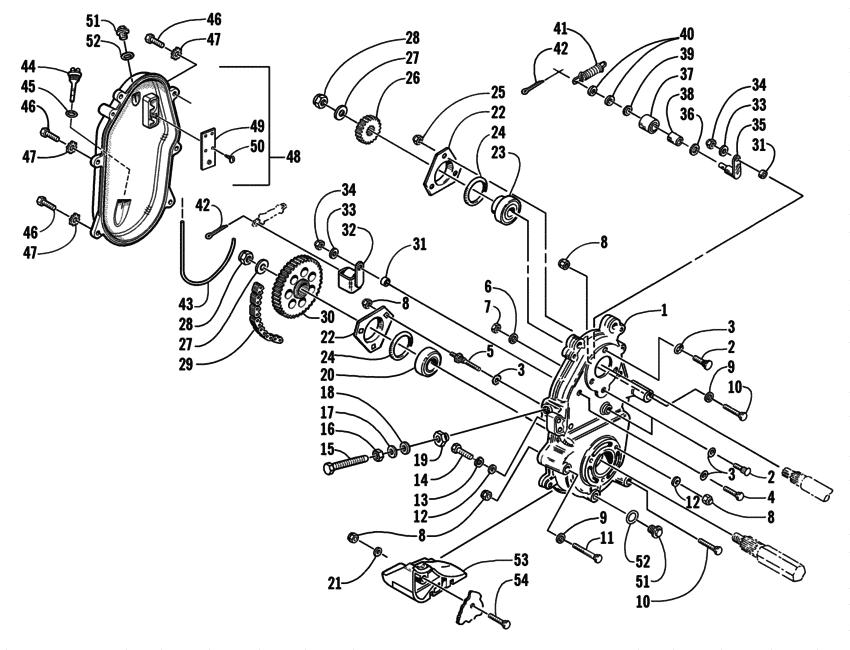

Drive/dropcase assembly Diagram Arctic Cat ZR-series ZR900
- Model code
- S2003ZRJCAUSG
- Engine Capacity
- 862
- Year
- 2003
- Commercial Name
- ZR900
- Sales region
- General
- Colour
- Green
- Power
- 150 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZR900
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0702-421 Dropcase w/studsinc. 2-7 ; |
0702-421 |
US $361.55 |
||
|
2
|
2
0123-523 BoltRibbed |
0123-523 |
US $37.10 |
||
|
3
|
3
0607-025 O-ringStud |
0607-025 |
US $9.75 |
||
|
4
|
4
0623-117 BoltRibbed |
0623-117 |
US $116.10 |
||
|
5
|
5
0623-317 Stud |
0623-317 |
US $116.10 |
||
|
6
|
6
0623-094 Washer |
0623-094 |
US $5.90 |
||
|
7
|
7
8042-426 Nut |
8042-426 |
US $17.60 |
||
|
8
|
8
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
9
|
9
8050-252 Washer |
8050-252 |
US $8.80 |
||
|
10
|
10
8011-139 ScrewCap |
8011-139 |
US $9.05 |
||
|
11
|
11
8011-143 BoltCarriage |
8011-143 |
US $9.05 |
||
|
12
|
12
8050-247 Washer |
8050-247 |
US $8.80 |
||
|
13
|
13
8051-242 WasherLock |
8051-242 |
US $11.05 |
||
|
14
|
14
8002-135 ScrewCap |
8002-135 |
US $2.85 |
||
|
15
|
15
1602-101
Adjuster
|
1602-101 |
— | ||
|
16
|
16
0123-150 NutJam |
0123-150 |
US $11.80 |
||
|
17
|
17
0623-905 SealManual adjust |
0623-905 |
US $3.96 |
||
| replacement | |||||
|
17
|
17
2623-057 WASHER,SEALING-RUBBER (YM) |
2623-057 |
US $3.96 |
||
|
18
|
18
8050-272 Washer |
8050-272 |
US $2.15 |
||
|
19
|
19
0602-876
Adapter
|
0602-876 |
— | ||
|
20
|
20
1602-051
Bearing
|
1602-051 |
— | ||
| replacement | |||||
|
20
|
20
1702-179 KitReplacement bearing-1" |
1702-179 |
from US $84.80 |
||
|
21
|
21
8050-242 Washer |
8050-242 |
US $28.20 |
||
|
22
|
22
0602-198 PlateFlange |
0602-198 |
US $21.39 |
||
|
23
|
23
1602-052
Bearing
|
1602-052 |
— | ||
| replacement | |||||
|
23
|
23
1702-180 KitReplacement bearing-7/8" |
1702-180 |
US $69.65 |
||
|
24
|
24
1670-237 SealO-ring |
1670-237 |
US $3.48 |
||
|
25
|
25
8041-426 NutLock |
8041-426 |
from US $1.60 |
||
|
26
|
26
0602-446 Sprocket24t |
0602-446 |
US $162.07 |
||
|
26
|
26
0602-452
Sprocket
Over 5,000 ft Alt. ; |
0602-452 |
— | ||
|
27
|
27
0623-231
Washer
|
0623-231 |
— | ||
|
28
|
28
0623-465 NutLock |
0623-465 |
US $18.92 |
||
|
29
|
29
1602-042 Chain72p |
1602-042 |
US $157.64 |
||
|
30
|
30
0602-453 Sprocket40t Over 5,000 ft Alt. ; |
0602-453 |
US $97.96 |
||
|
30
|
30
1602-087 Sprocket39t |
1602-087 |
US $94.66 |
||
| replacement | |||||
|
30
|
30
0602-451 SprocketOver 4,000 ft. alt.; 39t |
0602-451 |
US $91.74 |
||
|
31
|
31
0602-369 Bushing |
0602-369 |
US $10.99 |
||
|
32
|
32
0702-324 ArmAssembly; tightener |
0702-324 |
US $55.78 |
||
|
33
|
33
8050-217 Washer |
8050-217 |
US $3 |
||
|
34
|
34
0623-122
Nut
|
0623-122 |
— | ||
|
35
|
35
0702-115 TightenerArm |
0702-115 |
US $33.69 |
||
|
36
|
36
0623-283 Washer |
0623-283 |
US $2 |
||
|
37
|
37
0702-129 RollerInc. 34; chain tightener inc. 38 ; |
0702-129 |
US $94.43 |
||
|
38
|
38
0602-383 Bearing |
0602-383 |
US $6.07 |
||
|
39
|
39
0623-284 Washer |
0623-284 |
US $2.52 |
||
|
40
|
40
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
41
|
41
0702-130 Spring ass'y |
0702-130 |
US $27.98 |
||
|
42
|
42
0123-082 Cotter pin |
0123-082 |
US $0.55 |
||
|
43
|
43
0602-437 Seal |
0602-437 |
US $29.24 |
||
|
44
|
44
0602-462 StickOil level |
0602-462 |
US $10.16 |
||
|
45
|
45
0670-183 O-ring |
0670-183 |
US $2.15 |
||
|
46
|
46
8002-134
Screw
|
8002-134 |
— | ||
|
47
|
47
8053-242 WasherLock |
8053-242 |
US $19 |
||
|
48
|
48
7996-258 CoverAssembly; dropcase inc. 49-50 and one No. 51-52 ; |
7996-258 |
US $108.23 |
||
|
49
|
49
1602-152 CoverOil vent |
1602-152 |
US $11.16 |
||
|
50
|
50
0623-081 ScrewTapping |
0623-081 |
US $2.58 |
||
|
51
|
51
0623-293
Plug
|
0623-293 |
— | ||
|
52
|
52
1602-213 O-ring |
1602-213 |
US $1.18 |
||
|
53
|
53
0616-964 GuardDropcase |
0616-964 |
US $192.87 |
||
|
54
|
54
8011-137 BoltCarriage |
8011-137 |
US $1.10 |
||
