Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0705-408 Post Steering	0705-408	US $119.07
	replacement
1	1 1705-378 Post Steering-ptd blk	1705-378	US $119.07
2	2 0605-513 Riser 4.44 in.*; handlebar	0605-513	US $75.74
2	2 0605-491 Riser Handlebar Not a Service Part;	0605-491	US $73.09
2	2 0605-512 Riser 6.44 in.*; handlebar Not a Service Part;	0605-512	US $89.28
2	2 0605-514 Riser 2.44 in.*; handlebar Not a Service Part;	0605-514	US $70.32
3	3 0705-355 Housing Bearing	0705-355	US $19.65
4	4 0605-495 Cap Adjusting block	0605-495	US $38.17
	replacement
4	4 0705-881 Cap Lower; adjusting block	0705-881	US $38.17
5	5 0623-872 Screw Cap	0623-872	US $7.26
6	6 1606-079 Closure Tube	1606-079	US $2.61
7	7 0623-814 Screw Cap	0623-814	US $2.18
8	8 0605-406 Cap Bearing	0605-406	US $33.69
9	9 0405-020 Bearing Steering post	0405-020	US $6.30
10	10 0605-147 Housing	0605-147	—
	replacement
10	10 0705-064 Housing	0705-064	—
11	11 0605-331 Plate Steering support; backing	0605-331	US $37.33
12	12 8050-217 Washer	8050-217	US $3
13	13 8040-366 Nut Lock	8040-366	US $8.60
14	14 8040-426 Nut Lock	8040-426	US $44.40 ~~US $44.40~~
15	15 0705-407 Plate Backing	0705-407	US $65.99
16	16 8050-247 Washer	8050-247	US $8.80
17	17 8002-132 Screw Cap	8002-132	US $4.80
18	18 0623-044 Washer Hardened; flat	0623-044	US $6.51
19	19 0623-025 Nut Lock	0623-025	US $21.10
20	20 0605-423 Ball joint Left; steering	0605-423	US $83.82
21	21 0123-917 Nut Left-hand threat; hex	0123-917	US $18.10
22	22 0605-404 Tube Tie rod	0605-404	US $23.50
23	23 0623-294 Nut	0623-294	US $2.95
24	24 0605-504 Ball joint Right; tie rod	0605-504	US $39.65
	replacement
24	24 1605-010 Ball joint Right-hand thread; tie rod	1605-010	US $39.65
25	25 0623-985 Washer	0623-985	US $13.99

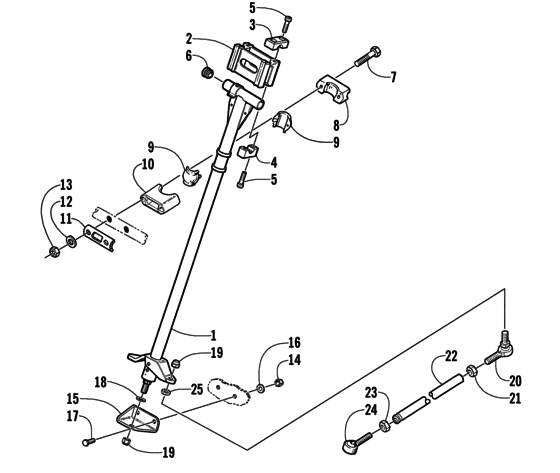

Steering Post Assembly Diagram Arctic Cat ZR-series ZR900 Green General 10993334-697799

Steering Post Assembly Diagram Arctic Cat ZR-series ZR900 Green General 10993334-697799
